Page 10

XT285 Treadmill

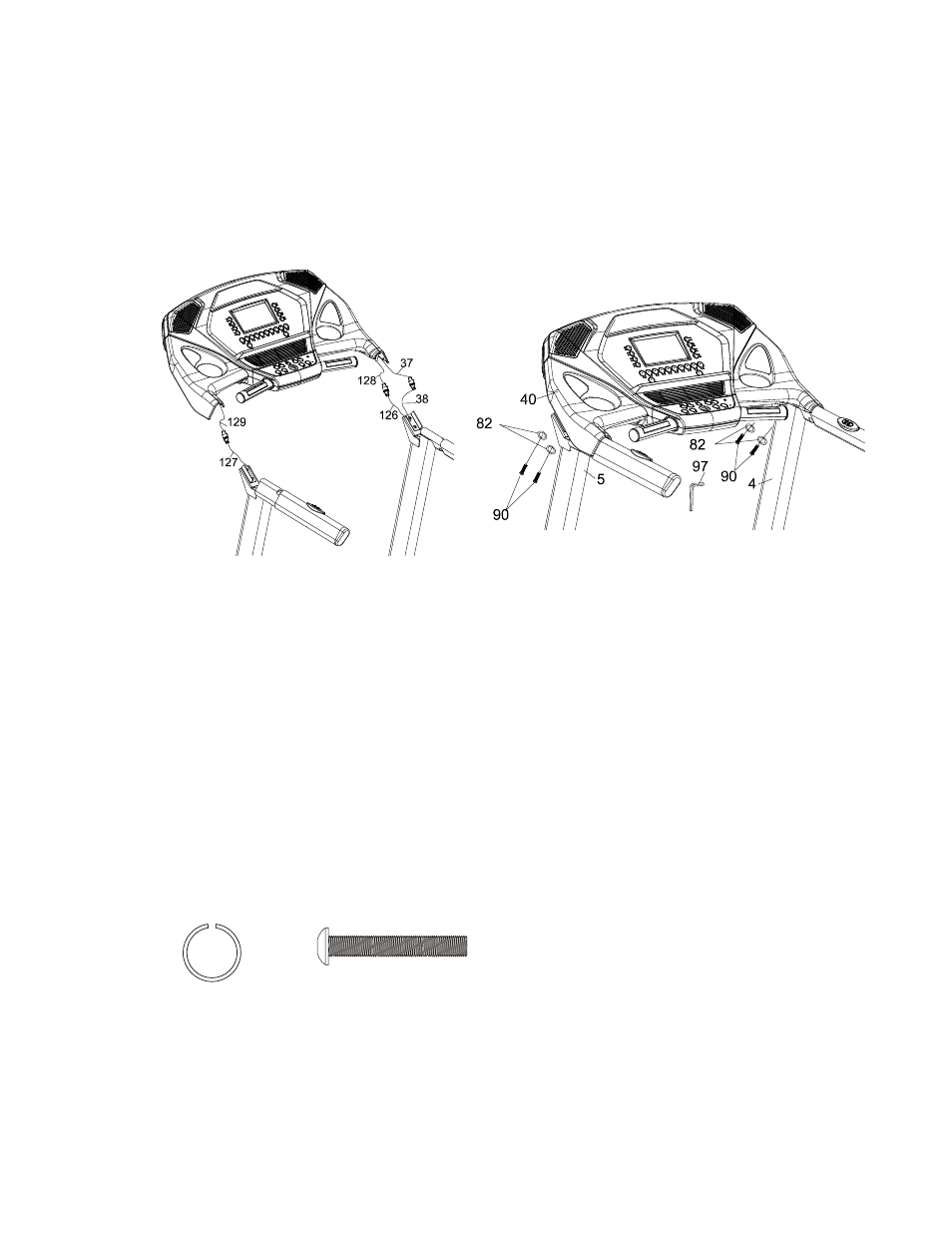

1. Connect the Speed Adjustment Switch Cable (

128) to the Speed Cable (Upper)(126). Connect

2. the Incline Adjustment Switch Cable (

129) to the Incline Cable (Upper)(127). Connect the

Computer Cable (Middle)(

37) to the Computer Cable (Upper)(38).

3. Insert Console Assembly (

40) into right and left Uprights (4) and (5) and secure with four

Button Head Socket Bolts (

90) and four Split Washers (82) using the M6 Allen Wrench (97). Now

go back and completely tighten the 8 bolts (

93) inserted in Step 1 that join the upright tubes (4 &

5) to the main frame.

CONSOLE ASSEMBLY

HARDWARE

#90. 3/8” x 1-3/4”

Button Head Socket

Bolt (4 pcs)

#82. 3/8” x 2.0T

Split Washer (4 pcs)
