Connecting the transmitters

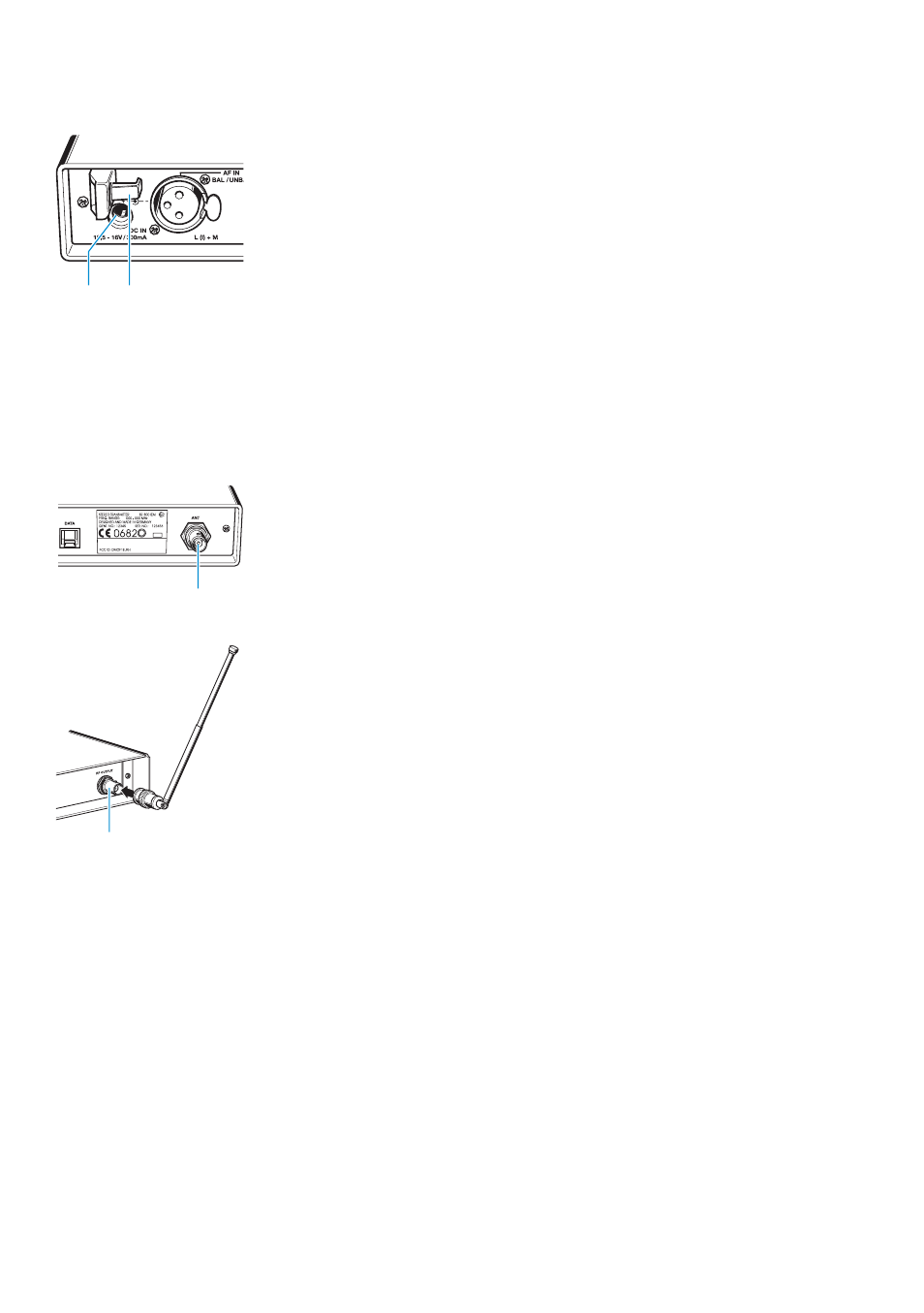

You can connect up to four SR 300 IEM G2 transmitters to the
combiner. The combiner incorporates DC distribution for
powering the transmitters.
̈ Pass the cables coming from the combiner’s DC outputs
through the cable grips
¾
at the rear of the transmitters.
̈ Insert the hollow jack plugs into the sockets
º
of the
transmitters.
Connecting the antenna
The combiner combines the transmission signals of up to four
transmitters onto a single antenna.
̈ Connect the BNC cables of the combiner to the BNC
sockets
µ
of the transmitters.
̈ Connect the telescopic antenna of one of the transmitters
to the BNC socket
¶
of the combiner.
̈ Pull the end cap to extend the telescopic antenna and align
it upwards.
̈ When rack-mounting the combiner, the telescopic antenna
can be connected to the front of the GA 2 rack adapter by
using the AM 2 antenna mount (optional accessory).
Use a remote antenna (optional accessory) when the combi-
ner position is not the best antenna position for optimum
transmission.
º ¾
µ
¶
