WIRING DIAGRAMS
TURN OFF THE HEATER ELECTRICAL SUPPLY BEFORE SERVICING ANY ELECTRICAL COMPONENTS.

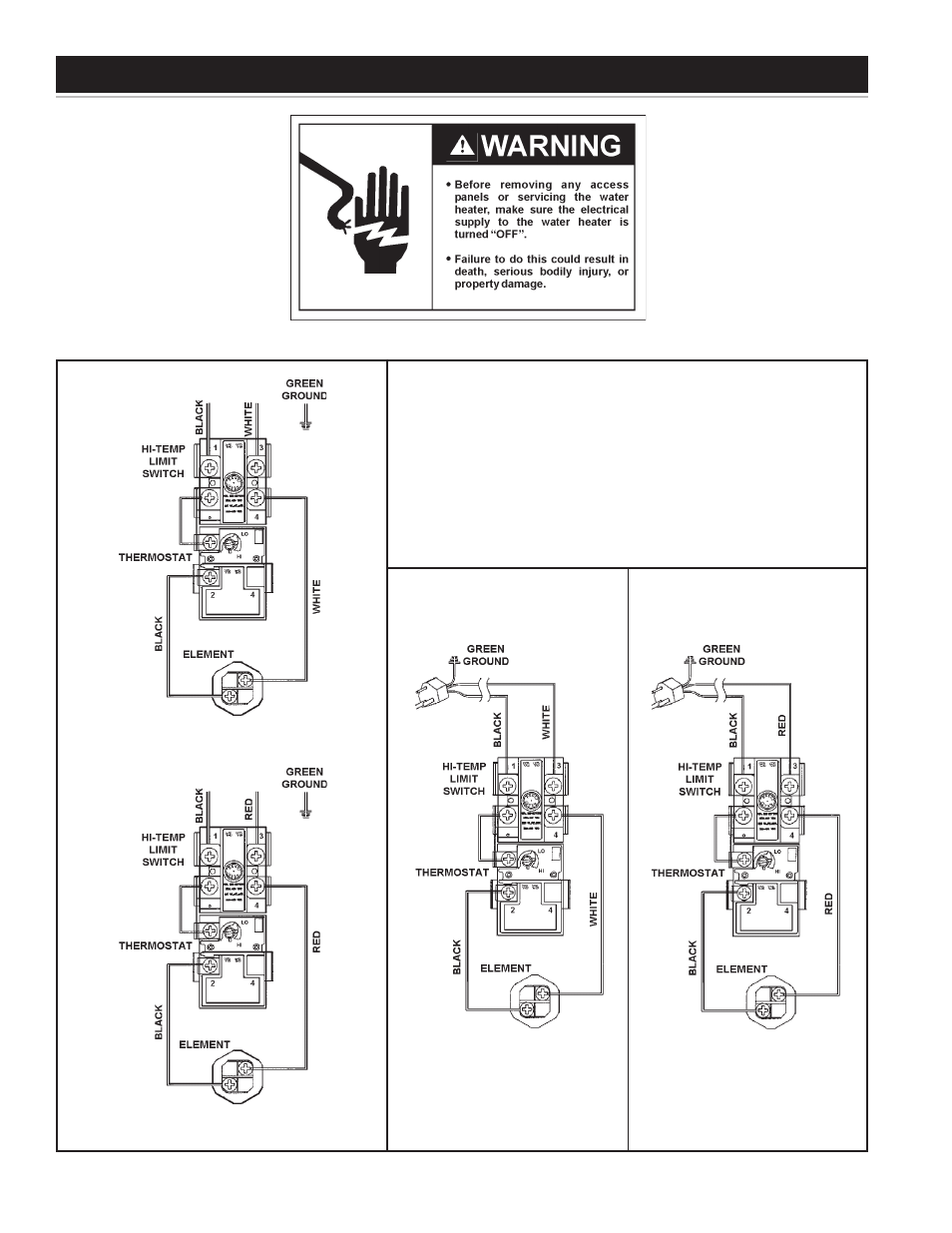

FIGURE 9.
OPTIONAL CORD SET WIRING (120 Volt and 240 Volt)
There may be a cord set supplied with the water heater
at the time of manufacture. If not one can be ordered
through the Parts Department; see “Repair Parts List”
section. Refer to Figure 9 for wiring diagrams.
120 VOLT WIRING
240 VOLT WIRING
120 VOLT WIRING 240 VOLT WIRING
