Sterling Plumbing 72240106 - Manual (Page 2)

Technical Information
Model door maximum width door maximum
height
72240106 32-5/8 ″ (829 mm) 72 ″ (1829 mm)
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
Double studding is recommended for pivot shower door
installations.

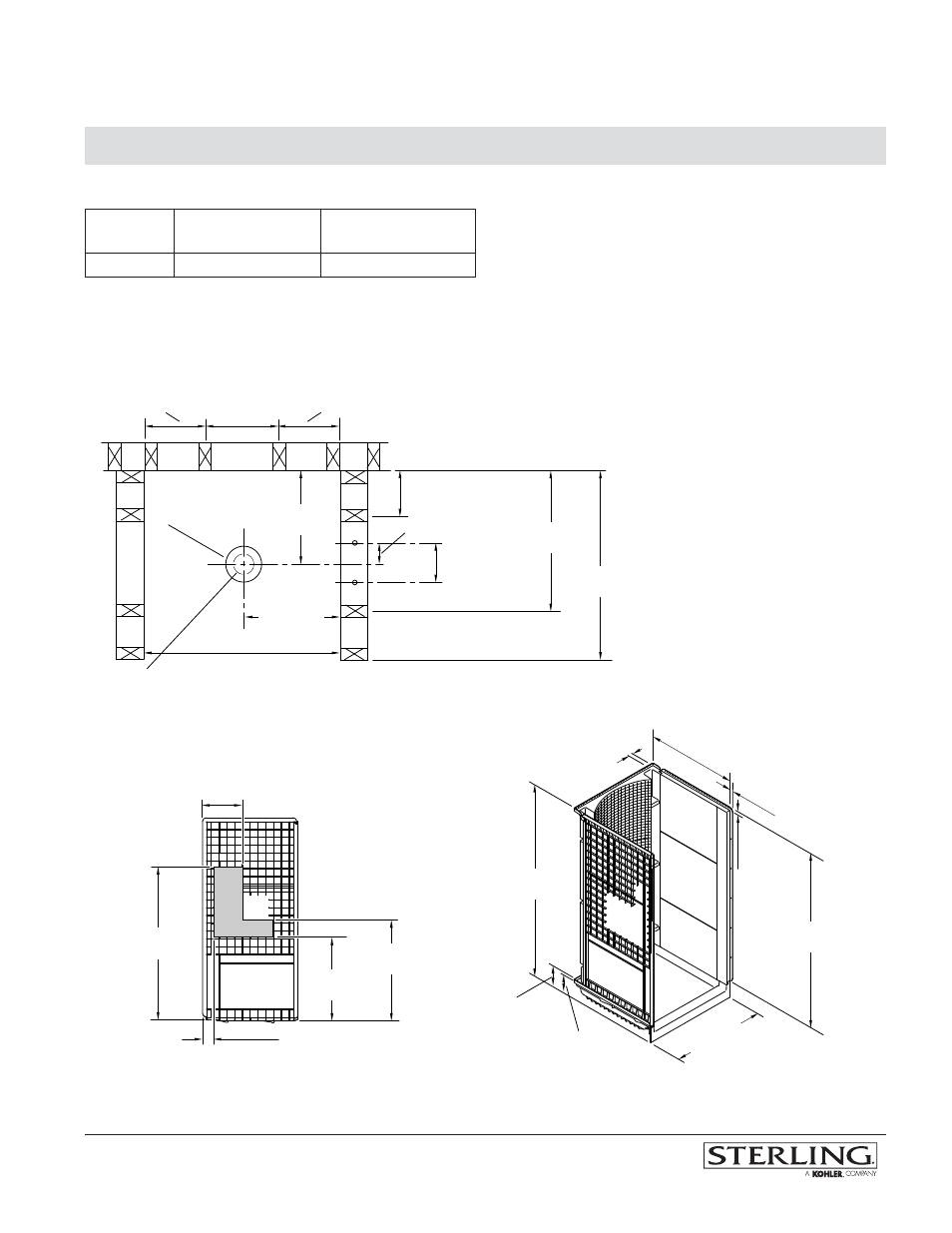

Studs should be positioned roughly as shown.
Base cannot be installed without the wall surround.
10" (254 mm)
4" (102 mm)
End Wall
29-1/4"
(743 mm)
10-1/4" (260 mm)
36-1/8" (918 mm) Min
36-1/4" (921 mm) Max
37-1/4"
(946 mm)
26"
(660 mm)
8"
(203 mm)
10"
(254 mm) 10"
(254 mm)
16"
(406 mm)
Ø 4-1/2"
(114 mm)
Drain Cutout
16-3/8"
(416 mm)
18"
(457 mm)
3-5/16"
(84 mm) OD
Drain Hole
54"
(1372 mm)
35-1/4"
(895 mm)
3-7/8"
(98 mm)
7-5/8"
(194 mm)
6-5/8"
(168 mm)
77"
(1956 mm)
36"
(914 mm)
75-3/4"
(1924 mm)
1-1/4"
(32 mm)
1-1/4"
(32 mm)
36"
(914 mm)
1-5/8" (41 mm)
at Midpoint
Product Diagram
ACCORD ®
ACCORD
®
36
″ (914 mm) BASE AND SURROUND W/BACKER BOARDS
Page 2 of 2
1092041-4-
D
