SLIDE ON-OFF SWITCHES
The tool is switched “ON” by either the front or
rear switch located on the top of the tool. The
rear switch can be locked in the “ON” position,
a convenience for long grinding operations.
The front switch does not have the lock “ON”
feature.
TO TURN THE TOOL “ON” without locking it,
slide either switch button forward. When
pressure is released the switch button will snap
to “OFF” position.
TO LOCK THE REAR SWITCH “ON” slide the
switch button forward and press “IN” the
FRONT portion.
TO UNLOCK THE SWITCH USING THE
REAR SWITCH, depress the REAR portion of
the switch and release.
TO UNLOCK THE SWITCH USING THE
FRONT SWITCH, SIMPLY PRESS
FORWARD AND RELEASE THE FRONT
SWITCH.
Be aware of the location
and setting of the switch
buttons. If the switch is locked "ON" during
the use, be ready for emergency situations to
switch it "OFF".
Sanding Accessories Assembly
BACKING PAD
Before attaching a backing
pad be sure its maximum
safe operating speed is not exceeded by the
nameplate speed of the tool.
Wheel guard may not be
used for most sanding
operations. Always reinstall wheel guard
when converting back to grinding operations.
TO INSTALL BACKING PAD AND
SANDING DISC
Disconnect tool from power source. Set the
tool on its top side (spindle up). Place the
rubber backing pad onto the spindle shaft.
Center the sanding disc on top of the backing
pad. Insert the lock nut through the disc and
thread onto the spindle as far as you can with
your fingers. Press in the spindle lock, then
tighten the backing pad securely with lock nut
wrench (Fig. 4).
TO REMOVE BACKING PAD AND
SANDING DISC
Disconnect tool from power source. Using
the lock nut wrench unscrew the nut from the
spindle, while holding spindle lock in.
WIRE BRUSH ASSEMBLY
Before assembling wire brush to this tool,
disconnect from the power source. Wire
brushes are equipped with their own
threaded hub, simply thread on to spindle. Be
sure to seat against shoulder before turning
tool “ON”.
! WARNING
! WARNING
Operating Instructions
-8-
FRONT
SWITCH BUTTON
SANDING
DISC
BACKING
PAD
LOCK NUT
WIRE BRUSH
SPINDLE

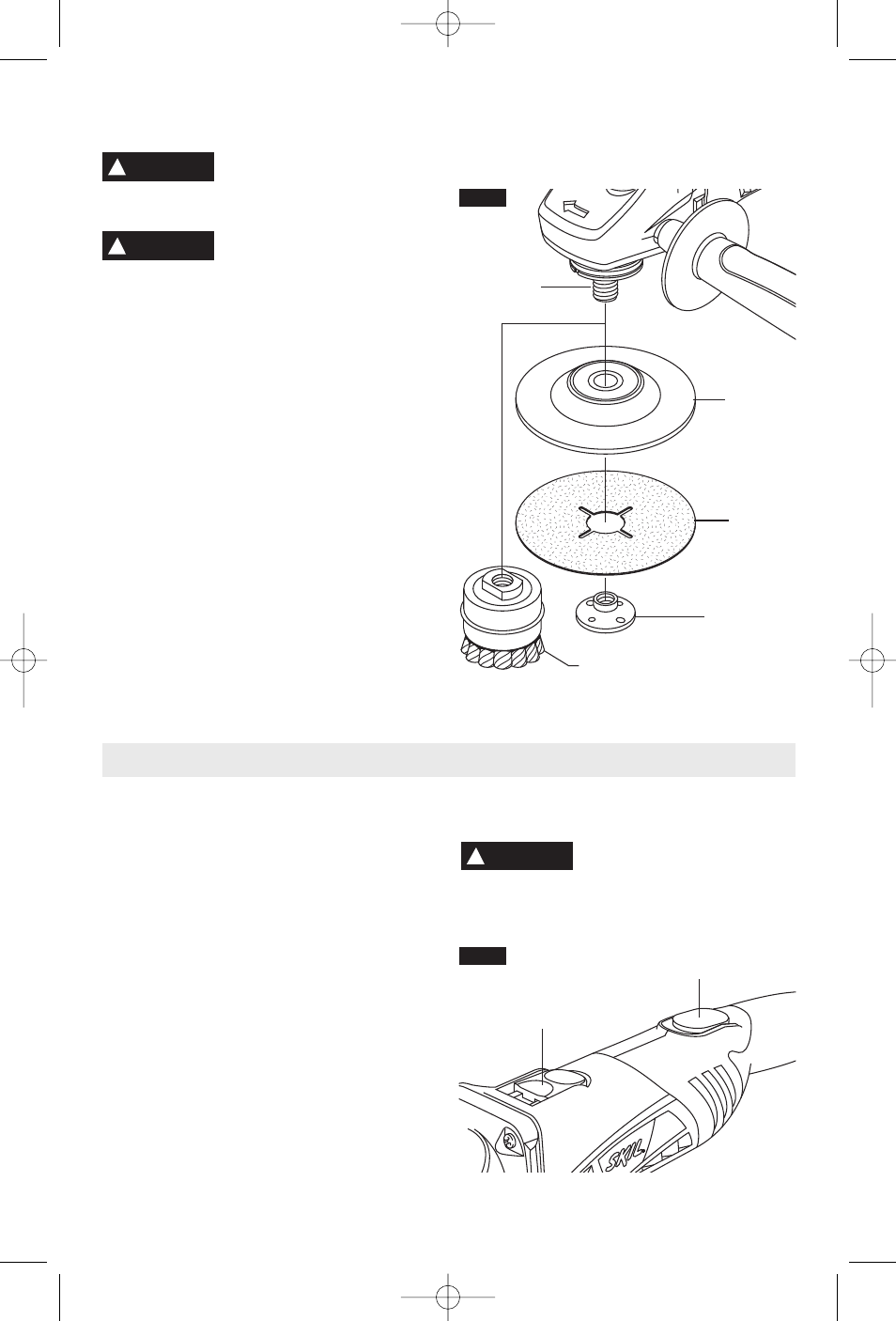

FIG. 4
FIG. 5 REAR
SWITCH BUTTON
! WARNING
