Quick Start Guide

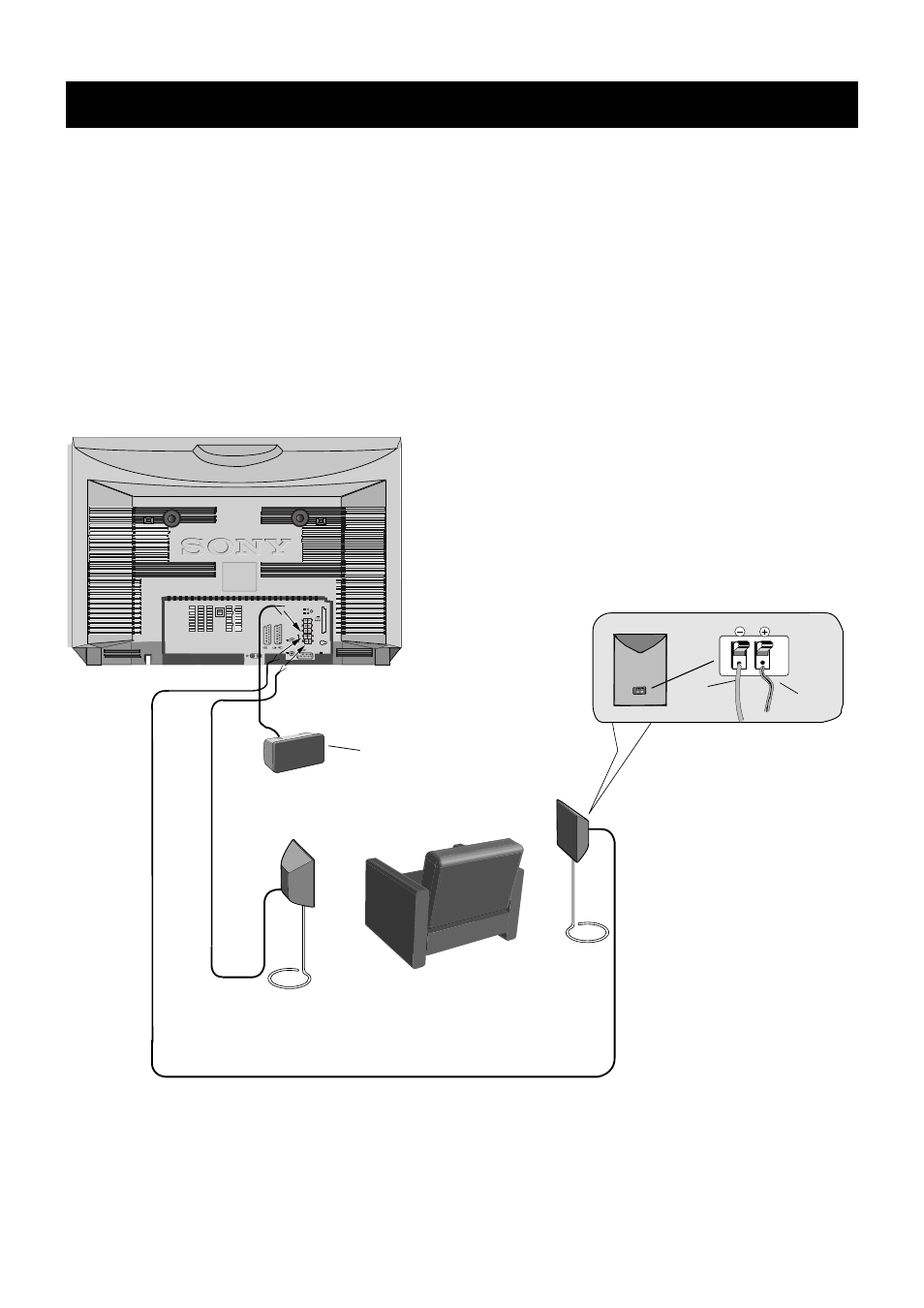

To connect the speakers provided:
3.1. Connecting the speakers
Before switching on the TV, please con nect the speakers to the TV using the leads provided. Connect the striped lead to the red
terminals and the black lead to the black terminals.
Dolby* ProLogic Surround normally requires 5 speakers:
Centre Speaker - to anchor the fixed sounds, like dialogues, to the screen.
Left and Right Front Speakers (incorporated in the TV) - for the normal two channel stereo or bilingual broadcasts.
Surround Speakers - for the special effects created by the surround channels.
* Manufactured under licence from Dolby laboratories Licensing Corporation. ‘Dolby’, ‘ProLogic’, and the double -D
symbol are trademarks of the Dolby Laboratories Licencing Corporation.
** For the best sound effects, place the surround speakers one meter above your listening position.
Surround Speakers
You
r Si
ttin
g Po
sitio
n
Centre Speaker
Black
lead
Striped
lead
