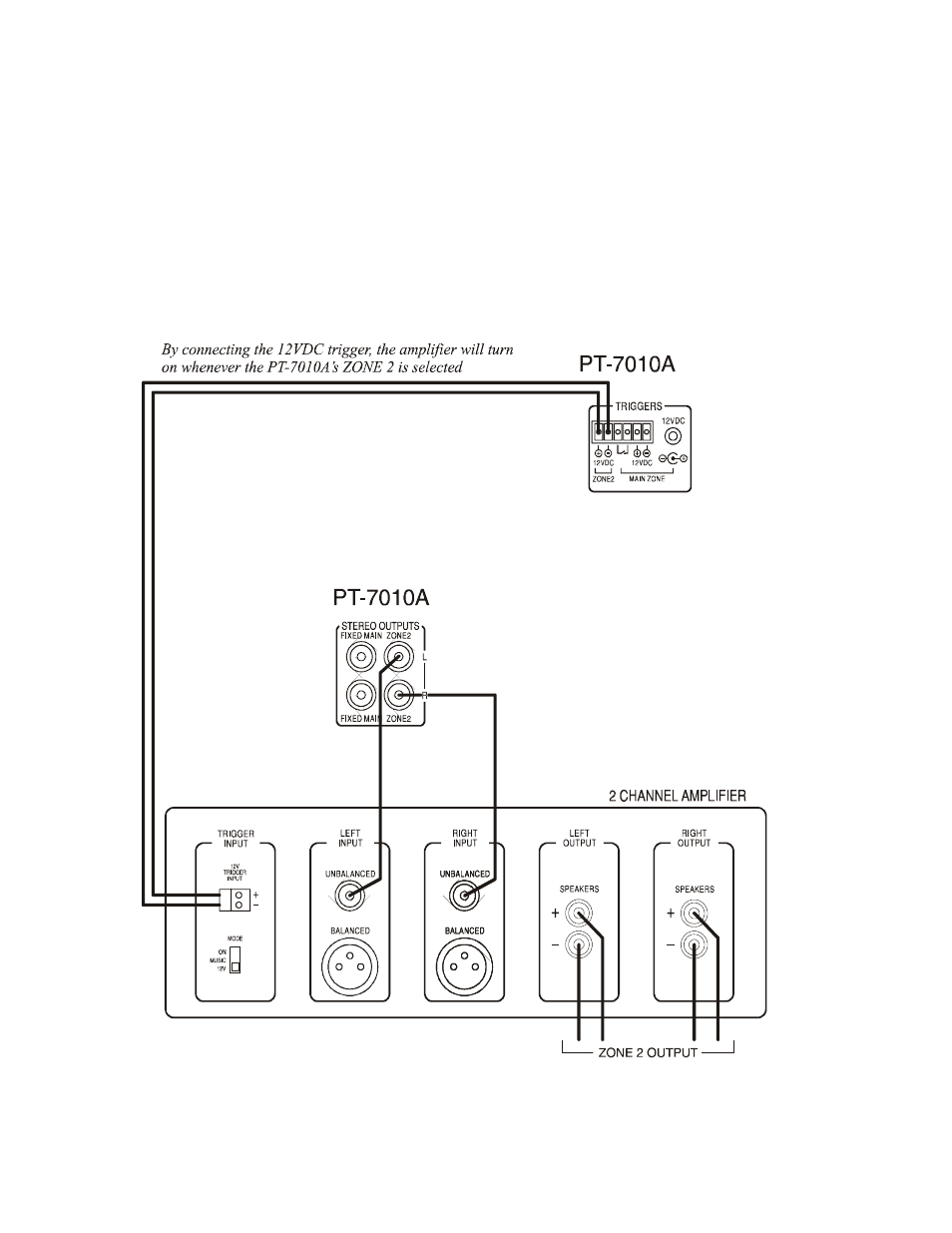

Connection Diagram 11:
Connecting a Separate Amplifier
for Zone 2
This configuration shows the ZONE 2 connections to a 2-
channel amplifier. The output is a left and right RCA
connection. Zone 2 does not have the option of balanced XLR
connections. Also note the connection of the 12 VDC trigger
to turn the amplifier on.
