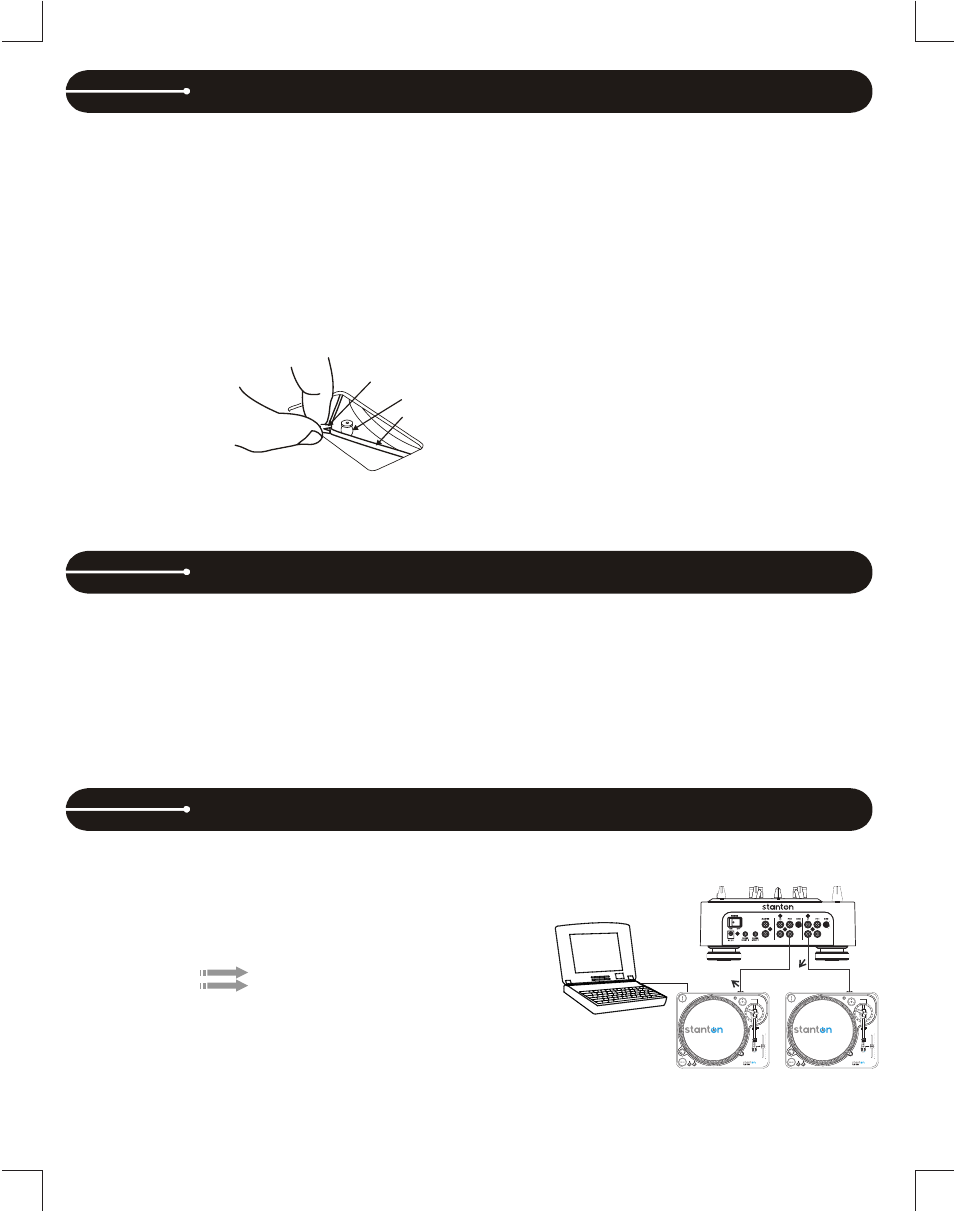

ASSEMBLY
CONNECTIONS
PLACEMENT
Ribbon tape
Driving roller
Drive belt
Set the PH/LINE
switch to Line”
Set the PH/LINE
switch to “PH”
Thank you for purchasing the T.55 USB turntable from Stanton. The T.55 USB is built upon Stanton’s heritage of designing audiophile products
for the most discriminating listener. Before assembling the T.55 USB please check to make sure the following items are included with the main
unit in the carton.
AC cord
RCA cable
45 rpm adaptor
Counter weight
Cloth dust cover
Platter with belt (Belt is located underneath the platter) Slipmat
Stanton 500.V3 Cartridge pre-mounted on headshell
except on model T.55USBX, no cartridge included
Cakewalk Pyro Audio Creator LE
User Manual
Target light
After confirming that all of the above parts are included in the box, its time to assemble the turntable.
1) Remove the platter from its protective wrapping and place on the spindle of the main unit.
2) Loop the belt over the motor pulley.
Be sure it does not twist .
3) Remove the slipmat from its protective wrapping and place on the platter.
4) Place the counter-weight on the back of the tonearm assembly.
5) If desired, place the 45rpm adaptor in its allocated holder on the main unit.
- Do not place the unit in a location where it will be exposed to direct sunlight or near a heating appliance.
- Do not place the unit in a location where there is high humidity or a lot of dust.
- Cartridge may pick up slight sound pressures or vibrations from the speakers coming along the floor or through the air resulting in feedback. Find a location
which is very stable and vibration free.
- The legs have functions for adjusting the height of the unit itself. Adjust the legs to stabilize the main body horizontally.
Before connecting the unit it is advised that you also consult your current equipment instruction manual.
Note: Be sure to turn off the equipment before you make changes to the different connections.
1. Connect the power cord to an AC outlet.
2. Connect the RCA cable to the PHONO input of your amplifier.
Output terminals Amplifier(Receiver)
L (White) L Channel
R (Red) R Channel
You can also use a line input by setting the phono / line switch at the rear of the turntable
to line.
3. Connect a PC via USB cable.
