Sub120 connections, Sub120 wiring guide, Speaker cable (un-shielded) – Samson Sub120 User Manual
Page 16: Positive negitive positive negitive
15
SUB120 Connections
Tip (signal)
Sleeve (ground)
Tip (signal)
Sleeve (ground)
Tip (signal)
Sleeve (ground)
Tip (signal)
Sleeve (ground)
2
3
1
Male XLR
Hot (2)
Cold (3)
Common (1)
End View
Solder Points
1
2
3
Tip (signal)
Sleeve (ground)
Cold (Pin 3)
(no connection)
Unbalanced 1/4” to RCA Cable
Un-Balanced XLR to RCA Cable

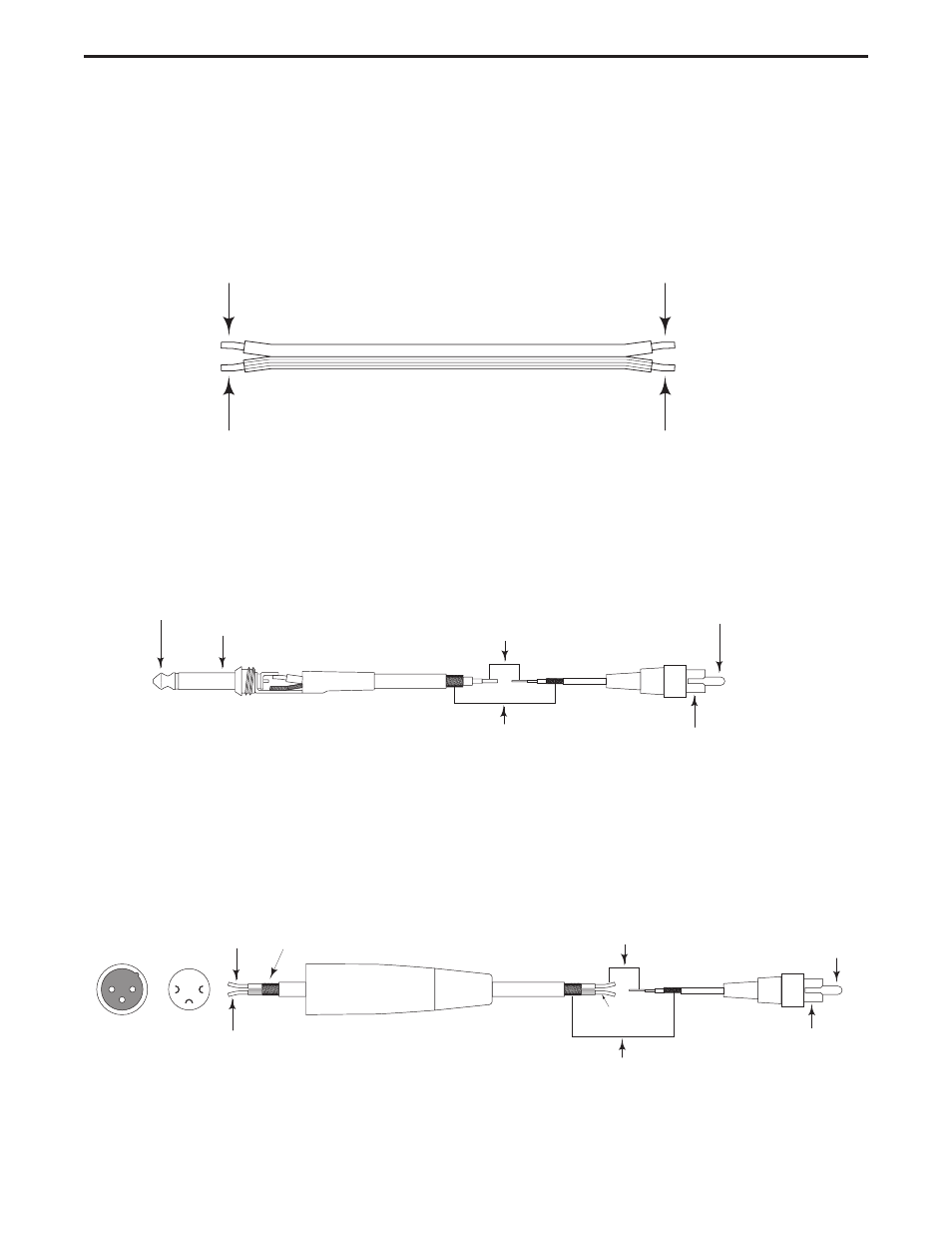

SUB120 Wiring Guide
There are several ways to interface the SUB120 depending on your exact monitoring set-up. The SUB120 fea-
tures both Preamp Level and Speaker Level inputs and outputs, so connecting to any active or passive satellites
speakers is easy. Follow the cable diagrams below for connecting your monitor system.
Speaker Cable (Un-Shielded)
Note: Just about all un-shielded speaker wire will have a marking indicating the negative side. To avoid phase cancelation
problems, be sure to maintain the correct connection for the positive and negative sides throughout your system.
Positive
Negitive
Positive
Negitive
