Spirit XBR25 User Manual
Page 11
XBR25 / XBR55
10

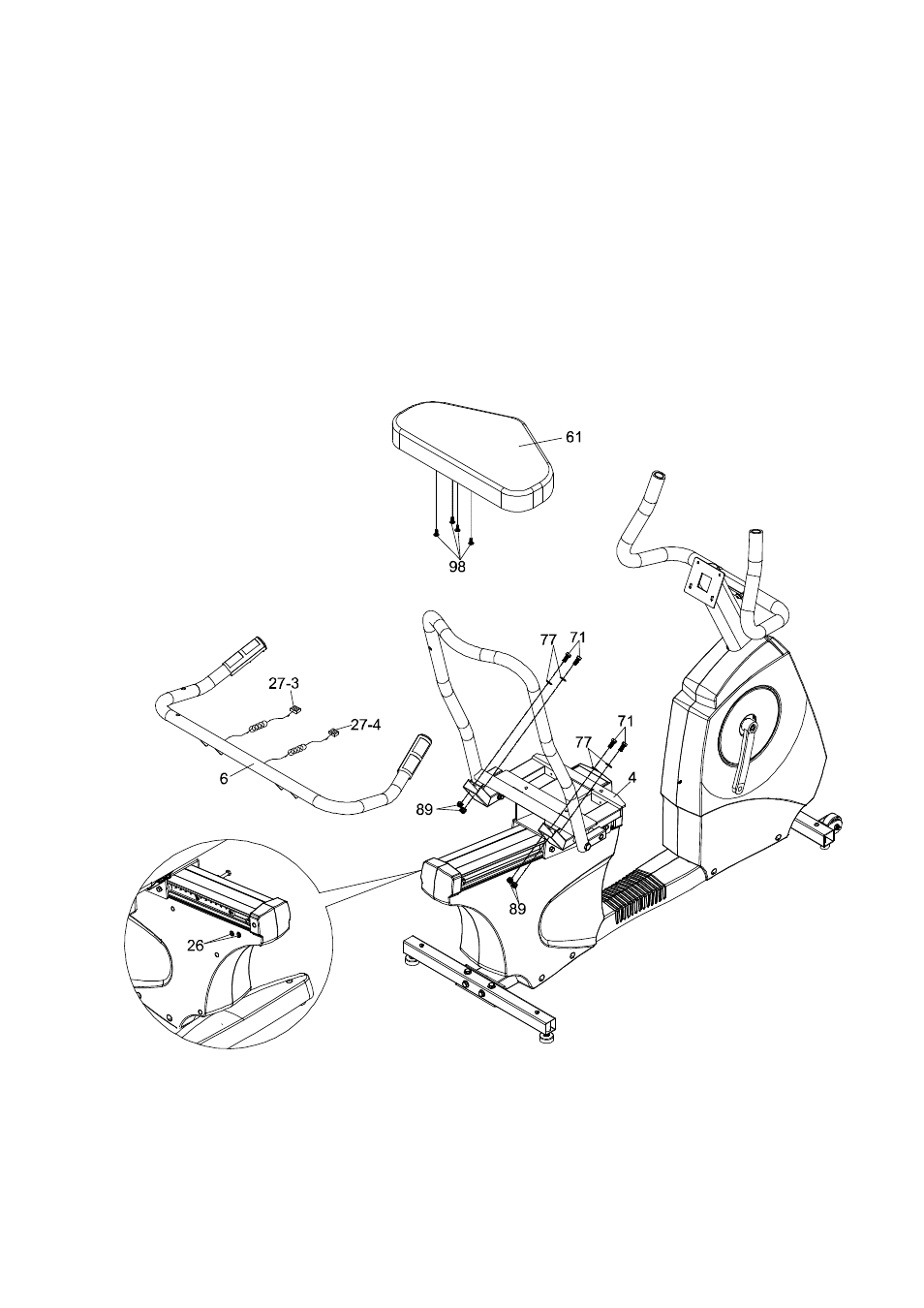

STEP 3: SEAT & HANDLE BAR ASSEMBLY
1. Install the Seat Cushion (61) on the Seat Carriage (4) with the four M6x15mm Phillips Head
Screws (98).
2. Install the Handle Bar (6) onto the Seat Carriage (4) with the four 3/8 x 1-3/4 Hex Head Bolts
(71), four 3/8 x 19 Flat Washers (77), and four 3/8 x 7T Nylon Nuts (89) by using the 12/14mm
Wrench (112) and 14/15mm Wrench (132).
3. Then plug the two Hand pulse Cables (27-3)(27-4) into the sockets located on the left side rear
cover (26), just under the seat.
