MONITORING

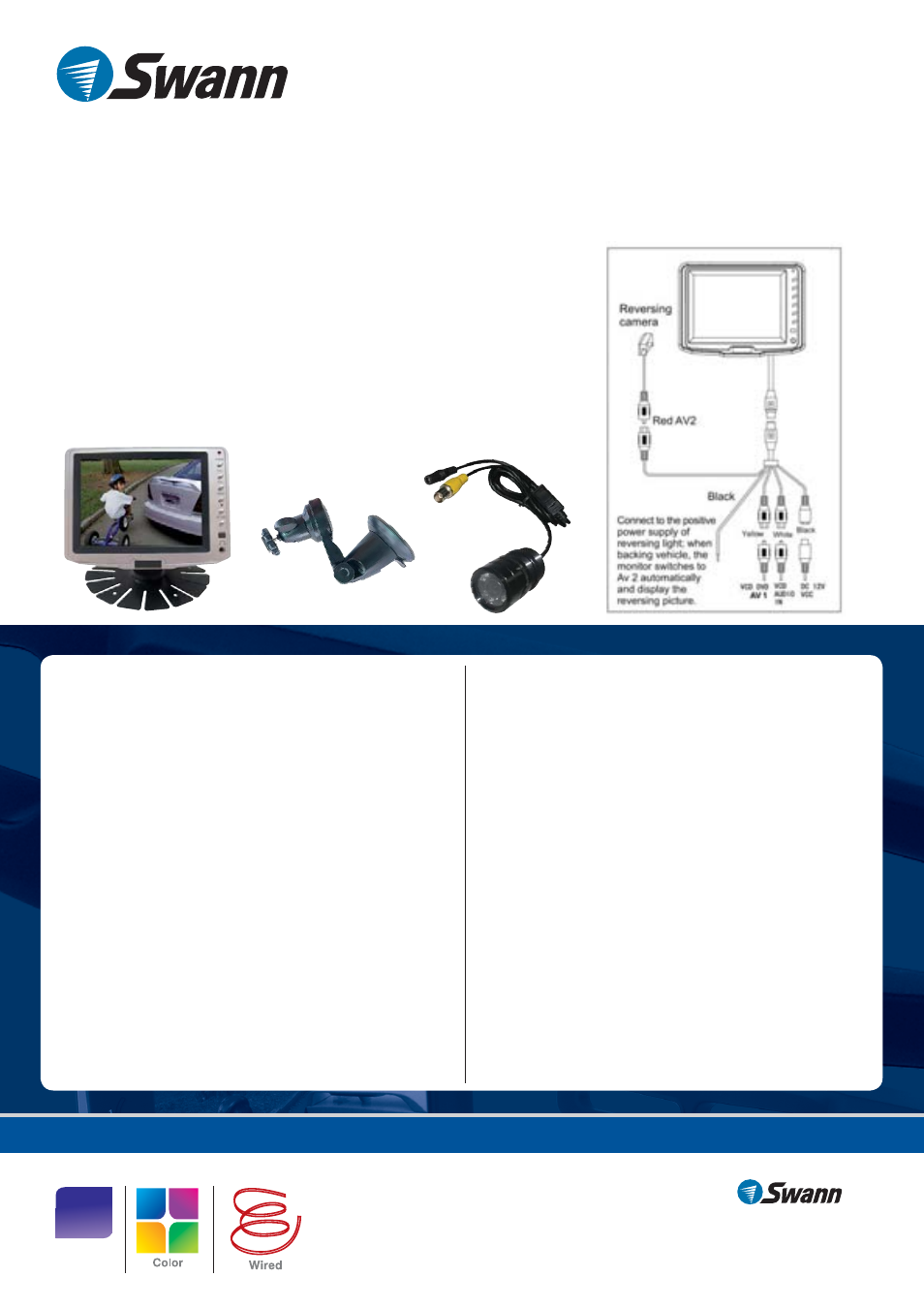

4 Step Installation
Step 1
: Mount LCD to dash
Step 2
: Connect LCD power wire to reversing light fuse or
12V power source
Step 3
: Run cable & mount camera to the back of the car
Step 4
: Connect power to the reversing light
Camera Specifications
Pickup Device:
1/4” CMOS image sensor
Number of Pixel:
PAL: 720x576; NTSC: 720x478
System of signal:
PAL/NTSC
Horizontal Resolution:
420 TV Line
Minimum Illumination:
0.5 Lux/F4.5
Night Vision Range:
Up to 9ft (3m)
Backlight compensation:
Auto
Electronic Shutter:
1/50(1/60)~1/100,000sec
White Balance:
Auto
S/N
Ratio:
>48dB
Gamma Consumption:
>0.45
Operating Temperature:
-20 ° C~60 ° C
Sync. System:
Internal
Video Output:
1.0Vp-p/75Ω
Power Supply:
DV12V, <150mA
View Angle:
90 degree
Technical Specifications
Package Contents:
• Wired Camera
• 5” LCD screen
• LCD stand
• Cigarette lighter adaptor
• Instruction Guide
** This product will be set to the TV standard of the country of sale
y
Warrant
month
12
5” LCD Wired Reversing Kit
Colour LCD Monitor & Night Vision Camera
Safeguard family, pedestrian & protect your vehicle!
LCD Monitor Specifications
Size of screen:
5 inches
Screen:
TFT
Screen
LCD Profile Ratio:
Ratio 4:3
Bot:
0.107mm (H) x 0.319mm (V)
Display Resolution:
960 (H) x 234 (V)
Contrastness:
Contrast 150:1
Brightness:
300cd/m
Reponse Time (ms):
R:30/F:50
Viewing Angle:
U:15/D:35 L/R:55
Diplay of imitate quantity:
OSD Display
Adjustment item of imitate quantity:
Brightness, contrastness,
resolution,
color,
volume
(0-100)
Colour system:
PAL, N3.58,N4.43
Video input:
1VP-P 75OHM(TWO ROUTE)
Audio input:
1.5VP-P(ONE ROUTE)
Sound System:
B/G(5.5M),I(6.0M),D/K(6.5M)
Power:
DC+12V+/-10%
Picture display mode:
4:3/16:9/16:9-1
Source of light:
CCFL
Life expectanty of lamp:
About 10,000
Line frequency of system:
15.625kHz (PAL) /15.670kHz (NTSC)
Spot frequency of system:
50Hz (PAL) / 60Hz (NTSC)
Function of backing car:
Up/Down, Left/Right Manual
Language:
English, Russian, German, French, Spanish,
Portugese, Italian & Dutch changable
menu
language
Outside dimension:
W163mm x H133mm x T38mm (inc headset)
Net weight:
around 430gr
Operation Temperature:
0~40
Storage Temperature:
-20~-60
Power consumption:
around 8w
