2

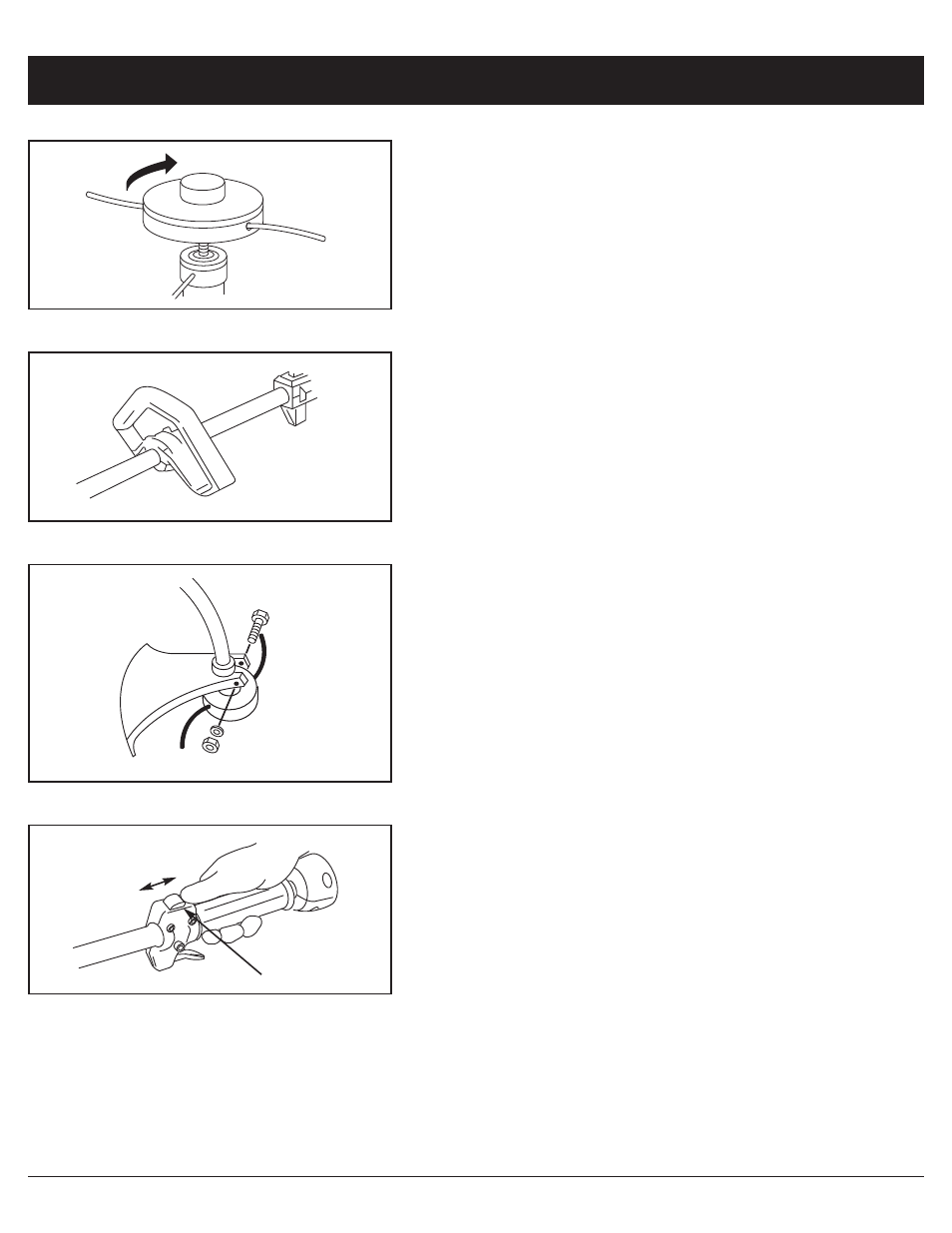

ASSEMBLY INSTRUCTIONS
■ TOOL LIST
• Screwdriver (Phillips or Standard)
• Allen wrench 4mm
• 10mm wrench
■ INSTALLING CUTTING HEAD
• While locking the gear shaft by inserting
a pin into the upper holder and
the housing.
• Rotate the cutting head to clockwise
to engage threads. Hand-tighten it securely.
■ INSTALL ASSIST HANDLE
• Use the 3 screws provided for this assembly.
Mount the back edge of the handle clamp to match
the arrow on the tube. Adjust the handle for
comfort and good balance. Check that the cutting
line of the unit is away from your feet and legs.
■ INSTALLING DEBRIS GUARD
• Put the debris guard on the gear box, attach it
with the screw and nut provided.
■ STOP AND START SWITCH
1. Ignition switch
2. Stop
3. Start
1
2
3
