Simplicity 1694296 - Manual (Page 2)

2 TP 400-3541-00-AT-SMA © Copyright 2002 Simplicity Manufacturing, Inc. All Rights Reserved.

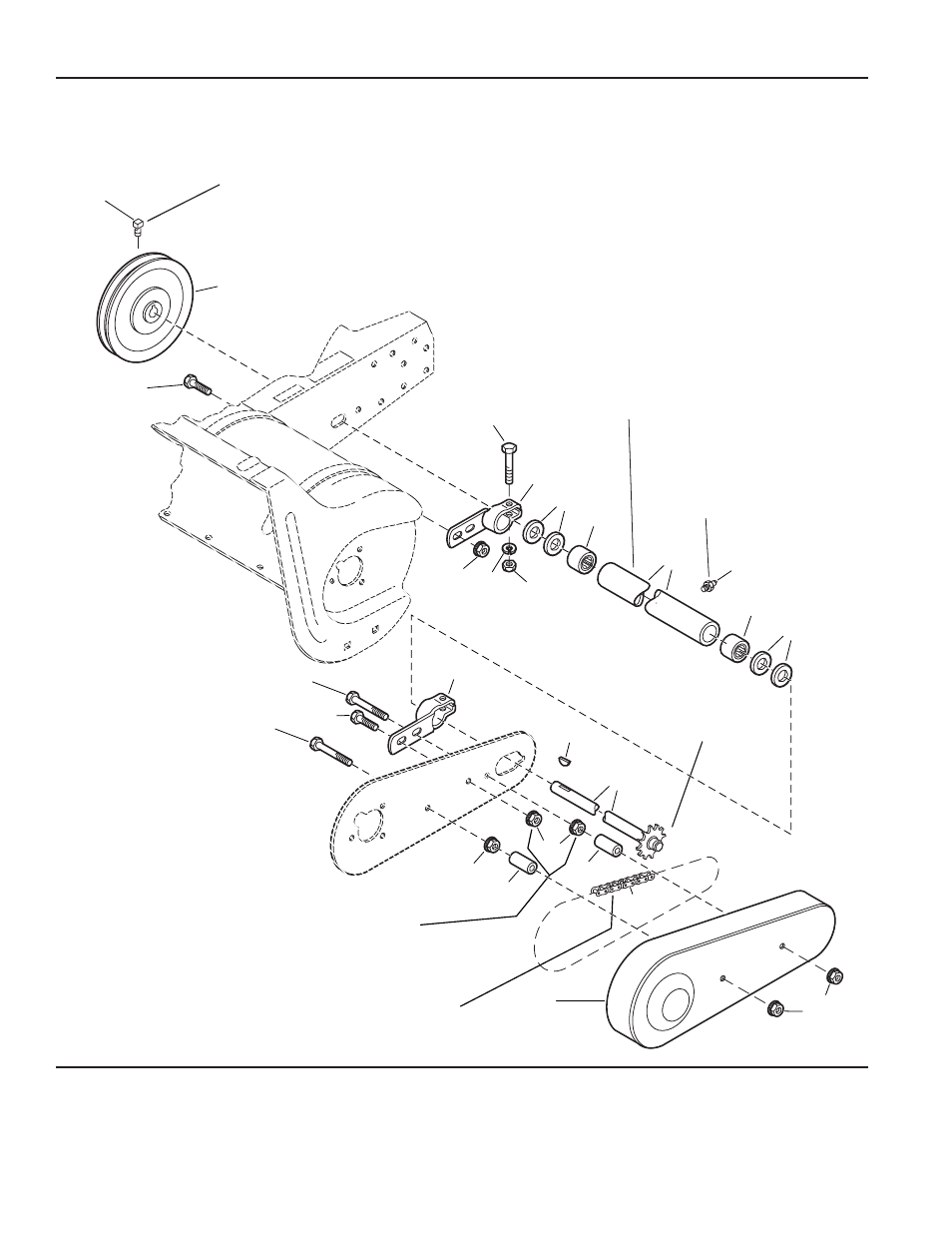

Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986036
Apply grease to
entire length of chain
(Lithium No. 2).
Torque to
40-45 ft. lbs.
Sprocket must be
in-line with driven
sprocket within .06"
Must be parallel to
blower housing within
1/8" when assembled.
Grease when
assembled.
Torque to
13-17 ft. lbs.
11
17
15
12
18
16
13
1
7
5
9
2
4
3
10
6
5
6
10
10
8
14
3
15
10
18
7
The above parts group applies to the following Mfg. Nos.:
1694296 Single Stage Snowthrower, 46”
