SD25 Series Screwdrivers
Page 16 T-40409-A 39-30-40409

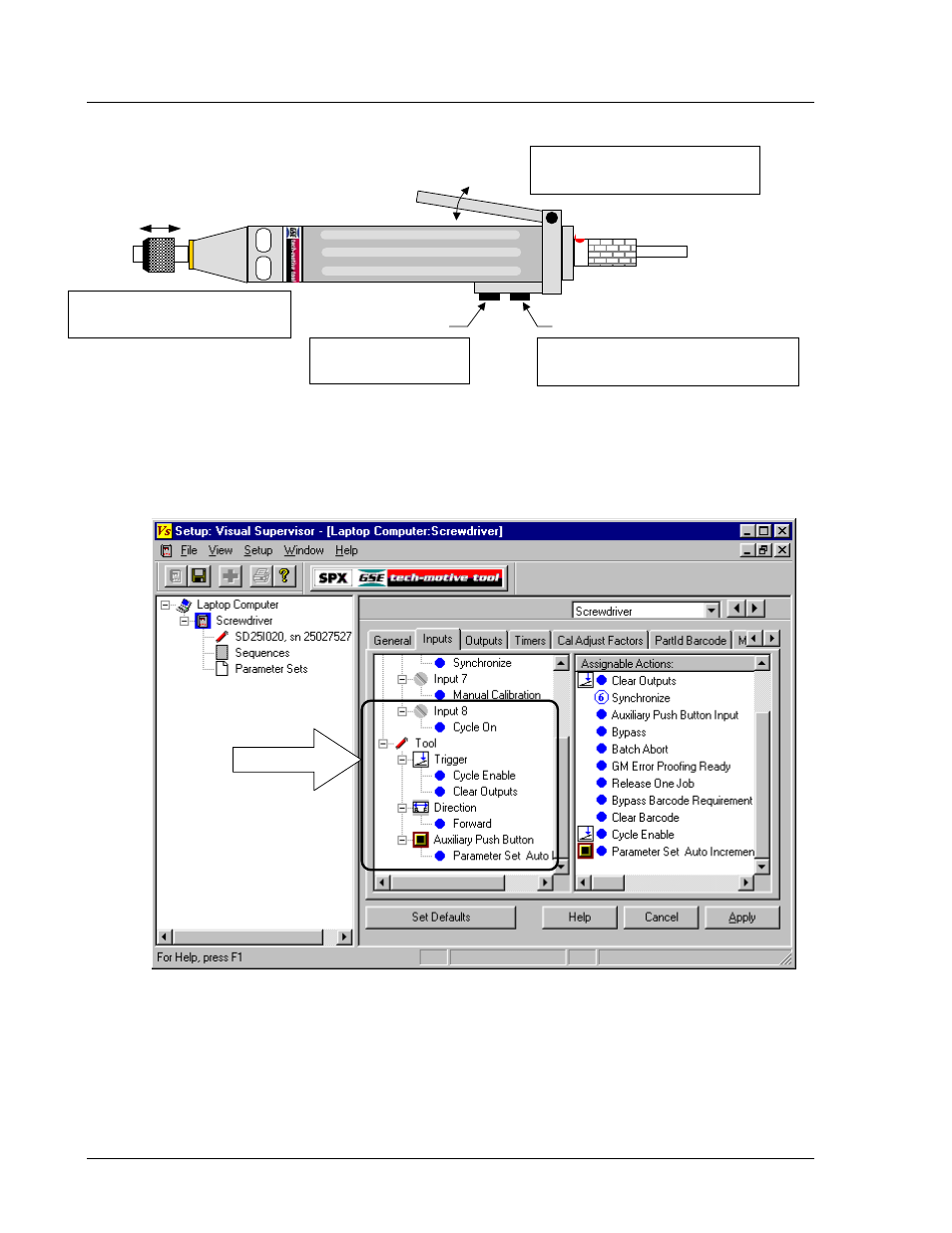

The screwdriver inputs are software selectable using VS. To enable the push-to-start function, assign
the Cycle On input to Input 8, and assign the Cycle Enable input and Clear Outputs input to the
Trigger. The typical inputs for a screwdriver with push-to-start function enabled are shown below.
Throttle/Trigger lever
Forward/reverse button
• Press to enable the fastening cycle
• Release to stop the screwdriver
• Press and release 2 times to change the
parameter sets
• Press and release to
change the direction
Multi-purpose (auxiliary) button
• Push to start the fastening cycle
• Release to stop the screwdriver
Push-to-start
