assembly instructions
-16-

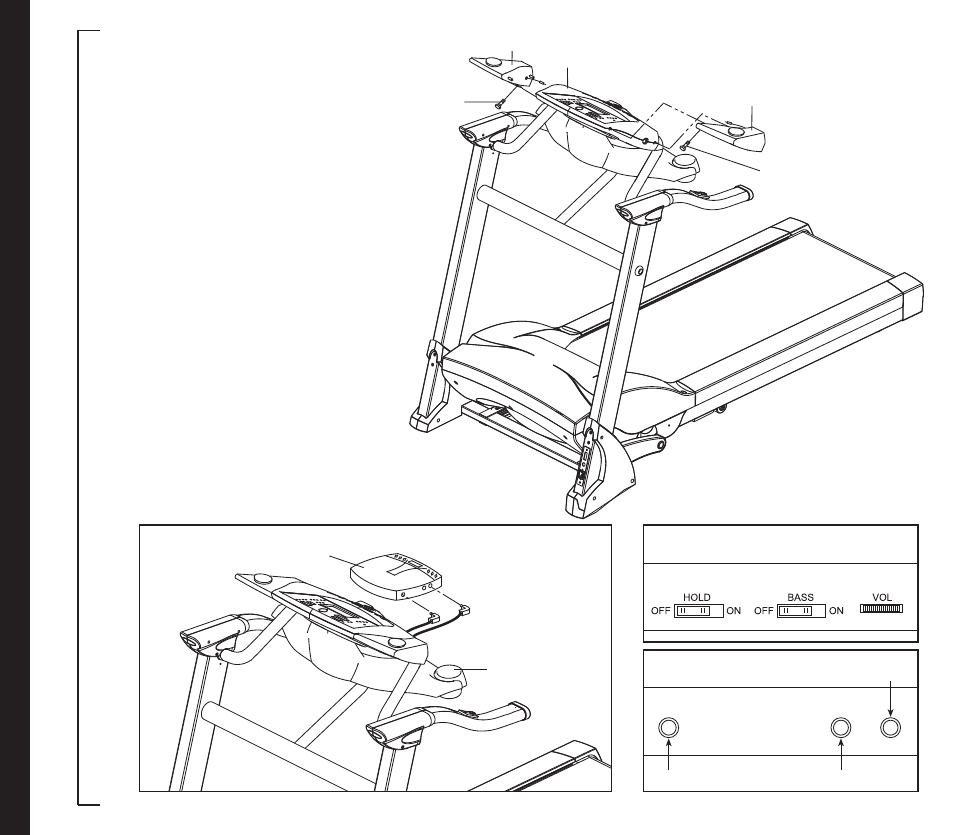

Connecting the Speakers and CD Player:
When connecting the Speakers to the
Console first plug the Speaker Wires into
the sides of the Console. Then insert the
Speakers into the sides of the Console and
secure with Knobs.
Plug the two wires from the Console Tray
into the CD Player then place it on the Tray
as shown in FIG 3.
NOTE: There are three plugs located on
the left side of the CD player. The rear plug
is the AC power. The middle plug (Line
Out) is not used at all. Leave that one open.
The front plug is called Headphones Out
and is used for the speakers (or headphones
if you like).
Warning: On the right side of the CD Player
there is a button called “Hold”. This button
should ALWAYS be set to OFF. If it is on,
the unit will not play.
OPTIONAL
EQUIPMENT
ASSEMBL
Y
FIG-3
CD Player
Console Tray
Speaker
Speaker
Console
Knob
Knob
CD Player, right side
AC Power Line Out (not used)
CD Player, left side
Headphones Out
