ASSEMBLY INSTRUCTIONS
10

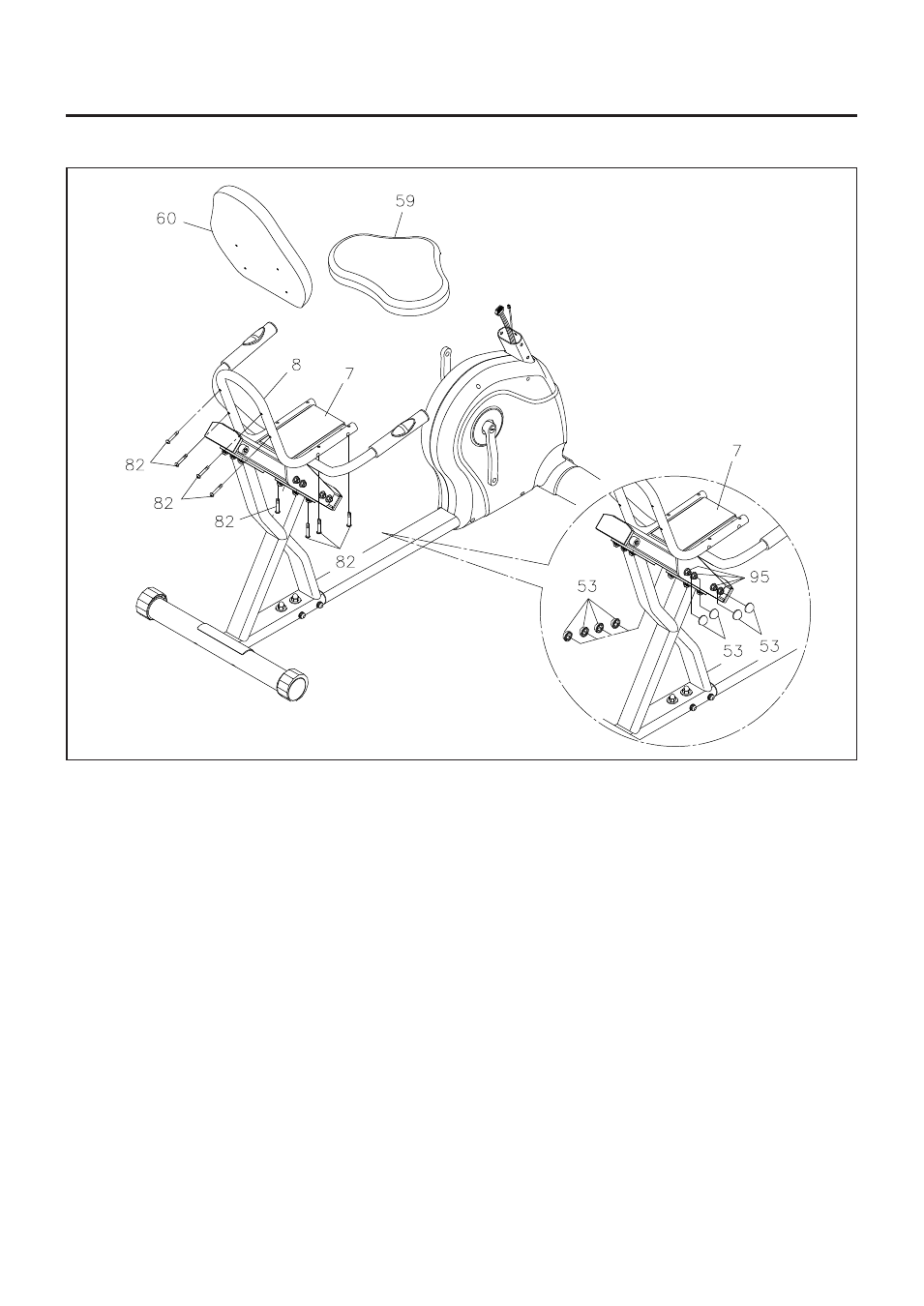

STEP 8
Attach the SEAT(59) and BACK CUSHION(60) to the SEAT FRAME(8) with ROUND HEAD BOLTS
(M6x1x38mm)(82).
STEP 9
Refer to the inset drawing. Press the NUT CAPS(M10)(53) onto the NYLOCK NUTS(M10x1.5)(95) on both
sides of the SEAT CARRIAGE(7).
