Lift Rod
1. Lay lift rod (A, figure 3) next to the tractor so that rear
(B) with square weldment (C) is towards the
rear. The weldment is positioned to prevent clevis pin
(D) from being installed from the right hand side
(interference would occur).
2. The lift rod must be inserted from the rear of the front
axle, aligning rear (B) with the tractor lift lever
(F). Install pin (D) from inside and secure and
spring clip (E).

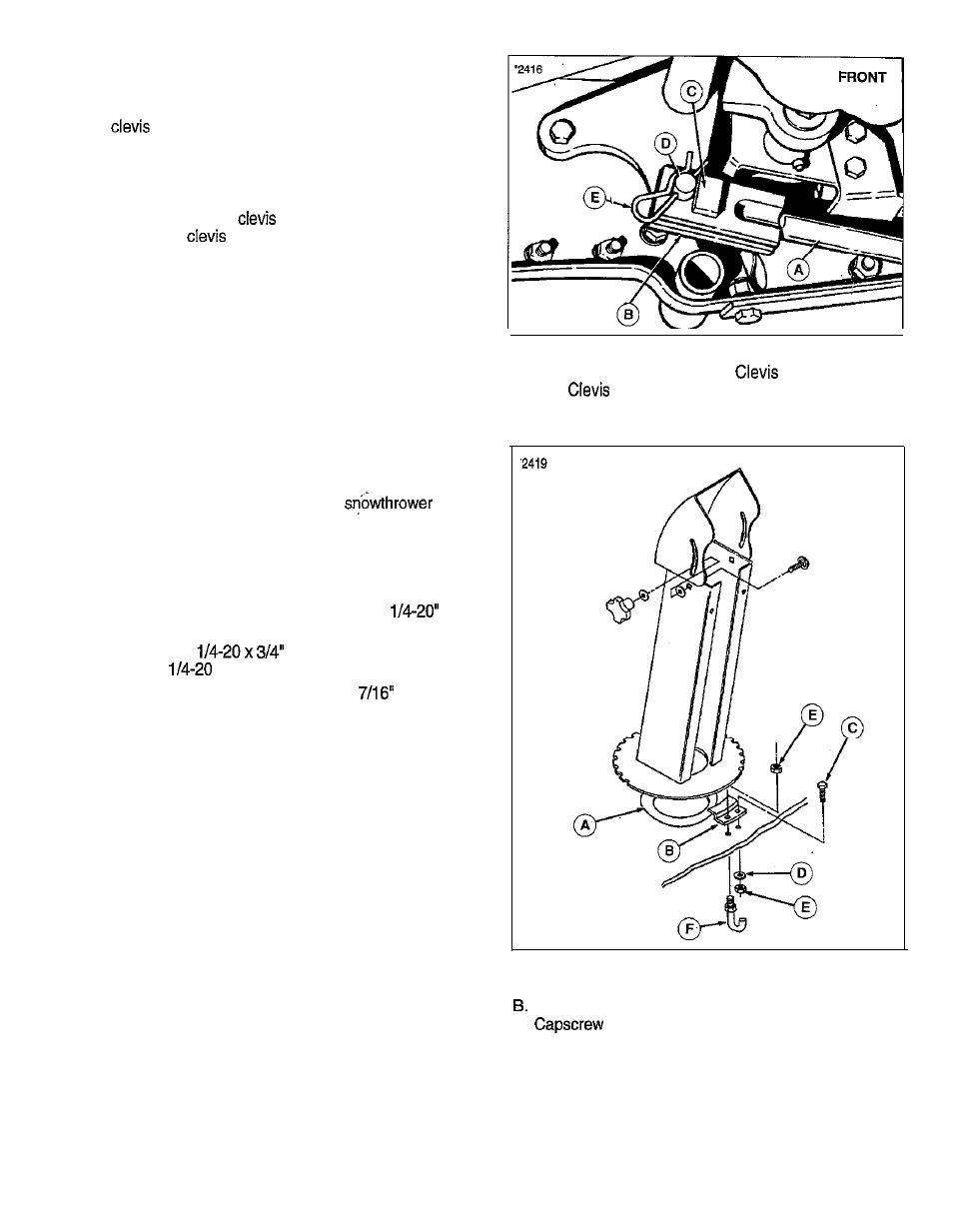

Figure 3. Installing Lift Rod
A. Lift Rod D. Pin
B. Rear E. Spring Clip
C. Square Weldment F. Tractor Lift Lever
Install Discharge Chute
1. Install nylon ring (A, figure 4) over
bottom discharge opening.
2. Install chute underneath left rear retaining bracket (B,
factory installed). Make sure that chute ring gear teeth
mesh with spiral rotator spring. The PTO retaining
hook(F) should be pre-installed in the outside hole of
the left rear bracket, if not, install it using nut.
3. Install three other chute retaining brackets (B) and
secure with capscrews (C), lo&washers
(D) and nuts (E).
4. Tighten hardware securely with two wrenches.
Figure 4. Installing Spout
A. Nylon Ring
Chute Retaining Bracket
C.
D. Lockwasher
E. Nut
F. PTO Retaining Hook
