STudIOdOck 4i
ARCHITECT’S & ENGINEER’S SPECIFICATIONS
The StudioDock active studio monitors from Samson come
in 2 models, the 3i and 4i. The StudioDock 3i shall have
an internal stereo 15 watt amplifier. The 4i has a stereo 20
watt amplifier. Both models shall have a front panel with
power LED indicators, volume control, stereo aux input,
and headphone output on 1/8th inch jack. Both models
use a 1.25 inch silk dome tweeter. The 3i, and 4i shall use
a custom designed copolymer 3.25-inch, and 4.25-inch
woofer respectively. Both models shall have iPod docks on
top and rear panel USB I/O for sync to computer, charging
of the iPod, and playing iPod audio from the iPod dock.
Both models shall use multi-pole passive crossover designs.
The rear panels shall have rear tuned ports for balanced low
frequency response, power on/off switches, RCA inputs,
USB computer interface, passive left speaker outputs,
and power AC input. Both models shall be AV shielded for
multimedia use. Both models shall be covered in a black
satin vinyl finish. 18 gauge speaker wires and USB cable
shall be included.
PROducT SPEcIFIcATION SHEET
SERIES DESCRIPTION CATEGORY
STudIOdOck TWO-WAY AcTIVE STudIO MONITORS MONITORS
STUDIODOCk 4i SPECIFICATIONS
Frequency Response ......................... 65 Hz - 23 kHz
Amplifier Power Rating ..................... 2 x 20 watts RMS
Crossover Frequency ........................ HPF: 4 kHz, 6 dB/oct Butterworth,
PTC Protected;
LPF: 1400 kHz, 12 dB/oct
Linkwitz-Riley
Inputs...... ....................................... Unbalanced: -10 dBv line level
Connectors: RCA (rear panel),
3.5mm (front panel)
USB: USB 2.0 connection
iPod Sync: Hi-speed
USB Audio: Full speed
Connector: B type
DAC (internal): 16-bit delta sigma,
44.1 kHz or 48 kHz
Enclosure ........................................ Construction: MDF
Finish: Black textured
vinyl covering
Dimensions ..................................... Active: 6.625” (w) x 9” (d)
x 9.125” (h)
168mm x 229mm x 232mm
Passive: 6.625” (w) x 7.625” (d)
x 9.125” (h)
168mm x 194mm x 232mm
Weight...... ...................................... Active:9.5lbs•4.3kg
Passive:6.5lbs•3kg
v
v
v
v
T H G I R
T F E L

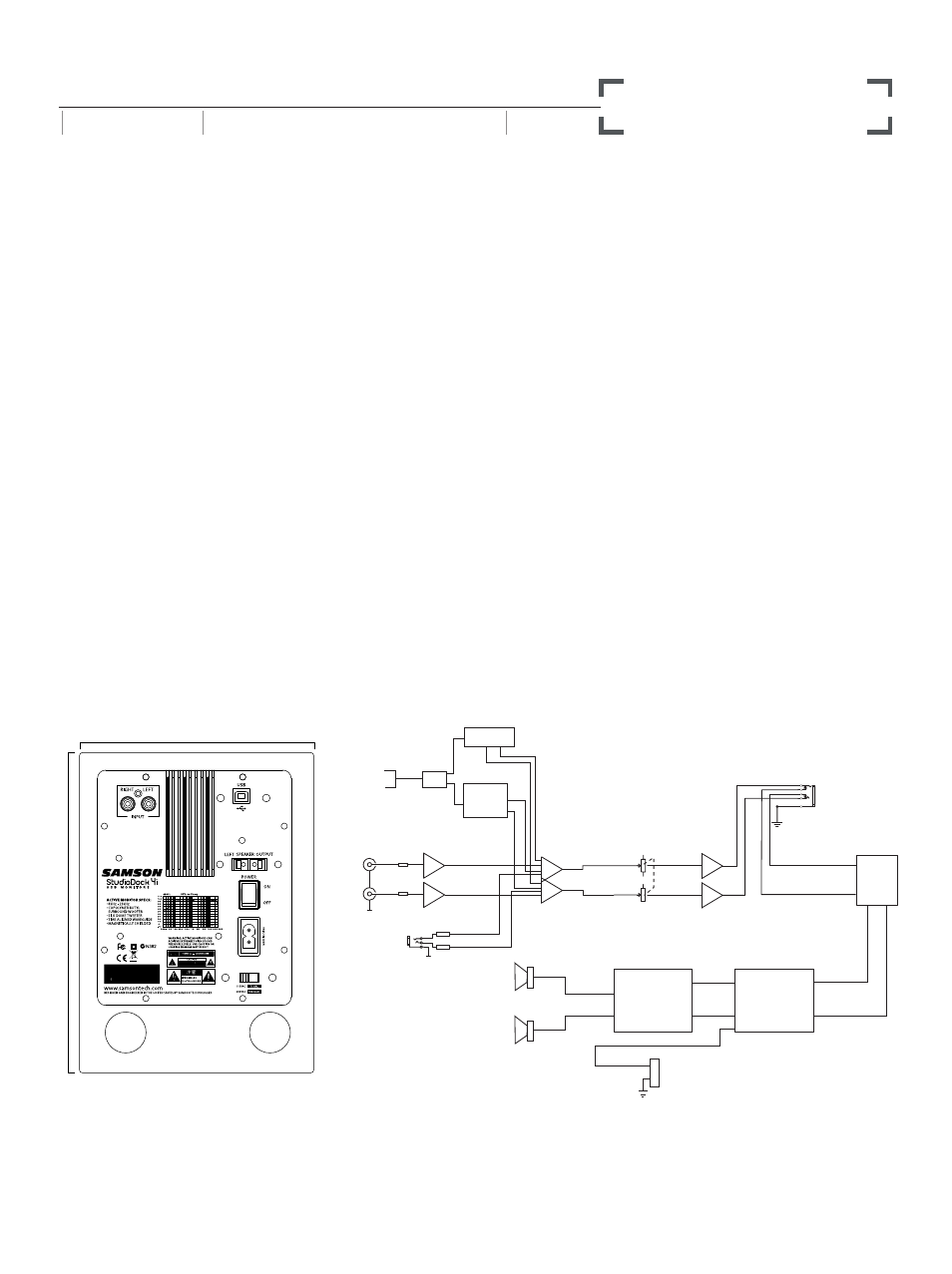

2#!
