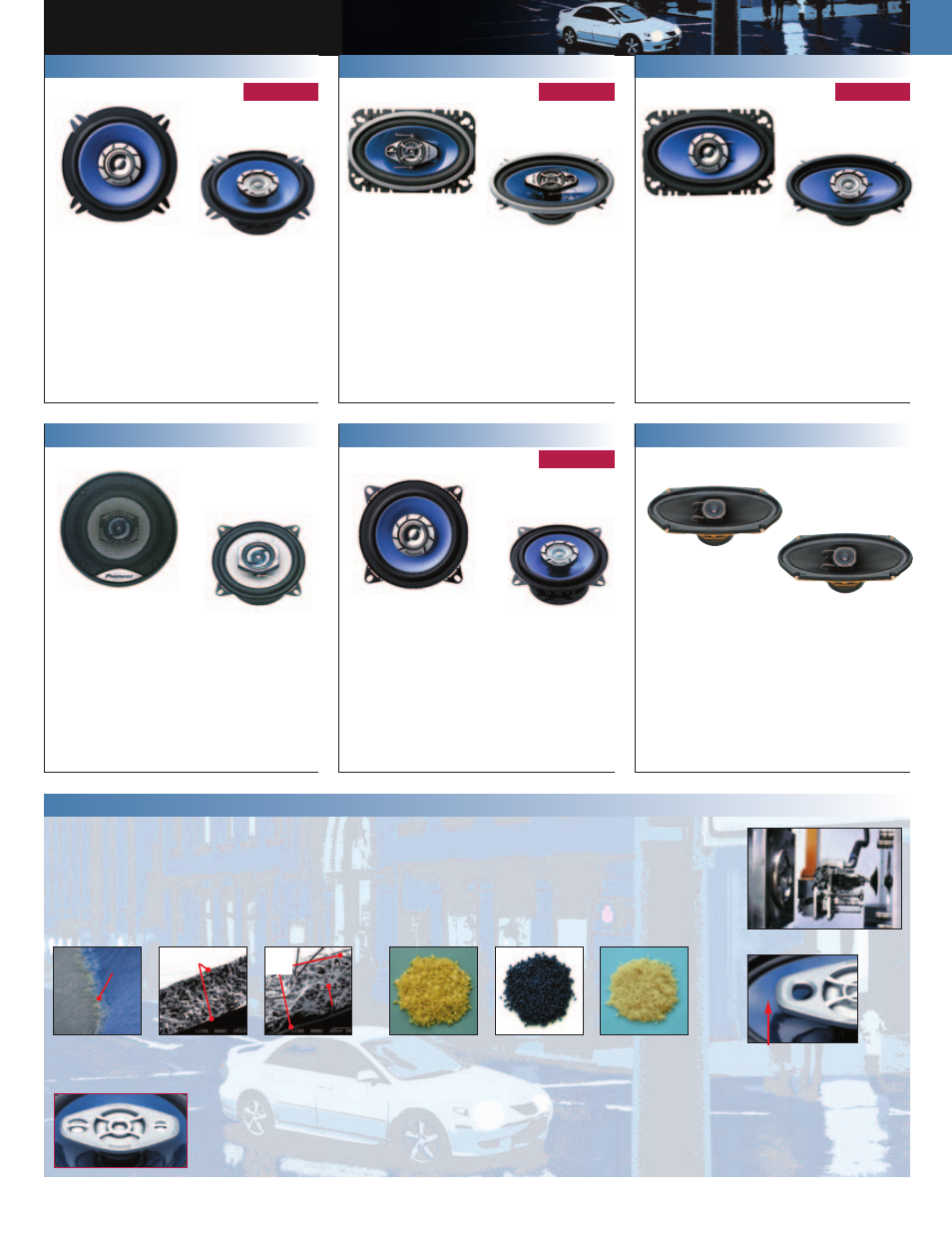

S P E A K E R S 2 1
5-1/4" 2-Way Speaker
T S - G 1 3 4 0 R 130W MAX.
FEATURES
• IMPP Composite Cone Woofer
• High-Energy Strontium Magnet (Woofer)
• Kapton Voice Coil Bobbin
• Conex Damper
• 1-3/8" Film Cone Tweeter
• Shallow Mounting Depth for Wider Installation Coverage
4" x 6" 3-Way Speaker
T S - A 4 6 7 0 R 120W MAX.
FEATURES
• Interlaced Aramid Fiber Reinforced IMPP Cone Woofer
• High-Energy Strontium Magnet (Woofer)
• Glass-Imide Voice Coil Bobbin
• Conex Damper
• 1-1/8" Foamed PPC (Pearl Poly-Carbon) Balanced Dome
Midrange with Magnetic Fluid and Neodymium Magnet
• 3/8" Dome Tweeter
• Custom-Fit US/European Compatible Basket Design
4" x 6" 2-Way Speaker
T S - G 4 6 4 0 R 100W MAX.
FEATURES
• IMPP Composite Cone Woofer
• High-Energy Strontium Magnet
• Kapton Voice Coil Bobbin
• Conex Damper
• 1-3/8" Film Cone Tweeter
• Custom-Fit US/European Compatible Basket Design
IMPP Cone Reinforced with Interlaced Aramid Fiber
Cone performance is most dependent on two variables: weight and durability. Pioneer IMPP cones have long been renowned for
their lightweight structure. Now we’ve reinforced them with Interlaced Aramid Fiber, creating a high-performance cone with a highly
dense internal architecture. This added strength and rigidity provides resiliency against high power output and booming bass. Full-
bodied sound is transferred quickly with character and midrange depth once considered impossible with previous IMPP cones.
Foamed PPC
PPC (or Pearl Poly-Carbon to us engineers) is a lightweight material that delivers high sensitivity, open sound character and smooth
extended frequency response in tweeters. Not only that, but it has a high inner loss that reduces distortion. It’s also blended with
special carbon fiber for UV resistance and protection against the harsh environment of your car. Think of it as the perfect soundstage for
the crisp highs you demand.
NEW FOR 2004 NEW FOR 2004 NEW FOR 2004
Aramid Fibers inside
the cone Regular IMPP Cone Aramid Fiber
Reinforced IMPP Cone
Microscopic Cross Section View
Long Aramid
Fibers
Long Aramid
Fibers
Skin Layer Skin
Layer
Long Aramid Fiber
Pellets Color Pellets Polypropylene Pellets
Pioneer IMPP reinforced cones are a combination of aramid fiber,
polypropylene and color pellets.
Speaker Specifications located on Page 22.
IMPP Injection Mold Process
Interlaced Aramid Fiber
Reinforced IMPP Cone
4" 2-Way Speaker
T S - A 1 0 5 7 100W MAX.
FEATURES
• Foamed IMPP Composite Cone Woofer
• High-Compliance Urethane Surround for High Efficiency
• High-Energy Strontium Magnet (Woofer)
• Glass-Imide Voice Coil Bobbin
• Latex-Treated Conex Damper
• 1" Foamed PPC (Pearl Poly-Carbon) Balanced Dome Tweeter
with Neodymium Magnet and Magnetic Fluid
• 4 & 2-Hole Compatibility with Removable Screw Holes
FEATURES
• IMPP Composite Cone Woofer
• Kapton Voice Coil Bobbin
• Cotton/Conex Damper
• 1-1/8" Film Cone Tweeter
• 4 & 2-Hole Compatibility with Removable Screw Holes
4" 2-Way Speaker
T S - G 1 0 4 0 R 100W MAX.
4" x 10" 2-Way Speaker
T S - A 4 1 0 3 120W MAX.
FEATURES
• IMPP Composite Cone Woofer
• Urethane Surround for High Efficiency
• High-Energy Strontium Magnet (Woofer/Tweeter)
• Aluminum Voice Coil Bobbin
• Conex Damper
• 1-5/8" Cone Tweeter
NEW FOR 2004
