TO REPLACE CABINET TOP

Replace the cabinet top by positioning over the unit.

(Figure 15) Gently slide top forward until the top drops
into place. (Figure 16) Slide top backward until flush

with the back of the unit. (Figure 17)

Operate the unit in “FAN ONLY” position for a min-
imum of one hour to insure the cell is thoroughly dry.

NOTE: An occasional “arcing” sound is normal when

operating the unit immediately after cleaning
the Cell and should stop after a few minutes of

operation. If cleaning the Cell does not alleviate

excessive arcing, refer to the Troubleshooting
Section on page 5.

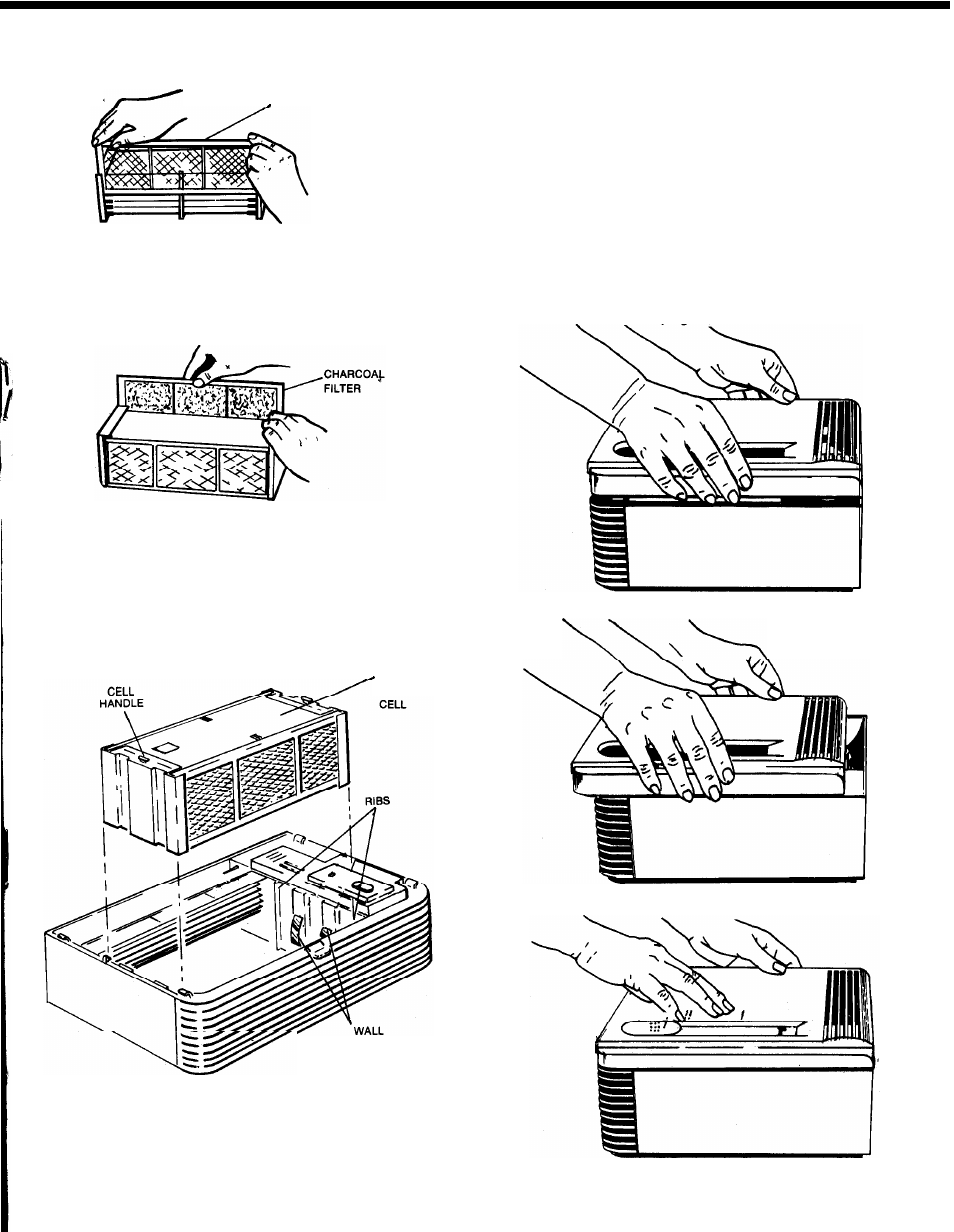

Figure 15
