Sennheiser ASA 3000 - Manual (Page 2)

Active antenna combiner
Broadband inputs and outputs
Rugged 19” housing in 3000 Series design
Eight LEDs for indicating RF power at the inputs
Delivery includes: AC 3000, rack mounting kit, mains cable

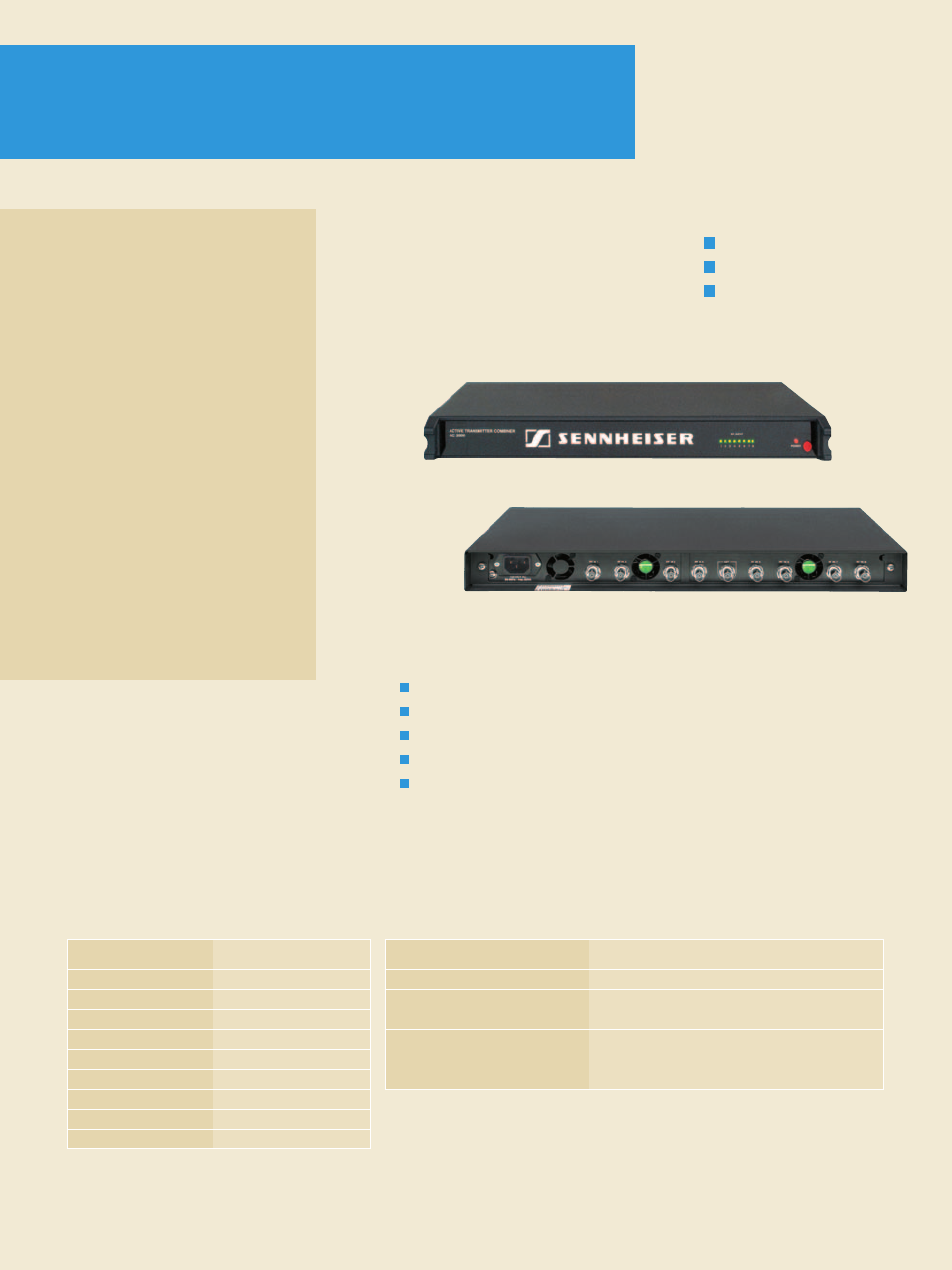

The AC 3000 is an active
antenna combiner for creating
high-quality 8-channel
wireless monitoring systems
for stage use or talk-back
applications, for example in TV
studios. It combines the
RF signals of up to eight
SR 3054/SR 300 G2 trans-
mitters or four SR 3056 twin
transmitters onto a single
antenna such as the
A 2003 UHF directional
antenna or A 1031 U omni-
directional antenna.
AC 3000
Product
News
3000 Series
Cat. No. 09409 US
Cat. No. 09410 UK
Cat. No. 09424 EU
Technical Data
Antenna combiner 8:1
Frequency range 470 – 870 Hz
Distribution attenuation 0 dB
RF input power max. 100 mW per input
Impedance 50
Ω
Power supply 100 – 240 V, 50 – 60 Hz
Power consumption max. 120 VA
Temperature range -10°C to +50°C
Weight 3 kg
Accessories
Passive directional antenna A 2003-UHF Cat. No. 03658
Passive omni-directional
antenna A 1031-U Cat. No. 04645
Co-axial antenna cable, GZL 1019 A1 (1 m) Cat. No. 02324
BNC connectors GZL 1019 A5 (5 m) Cat. No. 02325
GZL 1019 A10 (10 m) Cat. No. 02326
Please note: Active antennas must not be used with this product.
