A PPENDIX D—A LARM S TRUCTURE

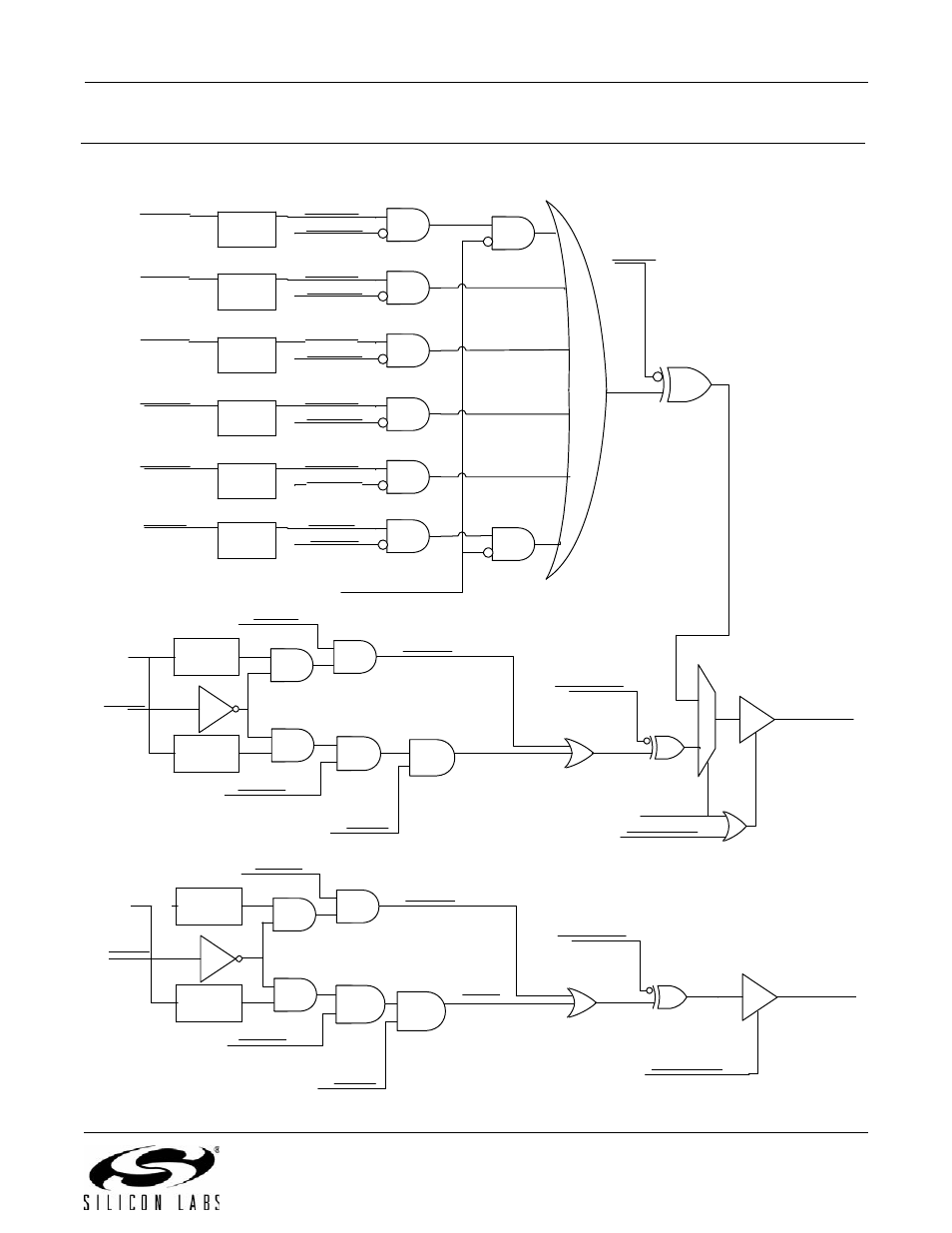

Figure 84. Si5324, Si5326, and Si5328 Alarm Diagram
in out Sticky
Write 0
to clear
LOSX_INT LOSX_FLG
LOSX_MSK
in out Sticky
Write 0
to clear
LOL_INT LOL_FLG
LOL_MSK
in out Sticky
Write 0
to clear
FOS2_INT FOS2_FLG
FOS2_MSK
in out Sticky
Write 0
to clear
FOS1_INT FOS1_FLG
FOS1_MSK
in out Sticky
Write 0
to clear
LOS2_INT LOS2_FLG
LOS2_MSK
in out Sticky
Write 0
to clear
LOS1_INT LOS1_FLG
LOS1_MSK
WIDEBAND MODE
INT_POL
FOS1_EN
LOS1-EN
INT_C1B
E
1
0
CK1_BAD_PIN
INT_PIN
CK_BAD_POL
LOS1_INT LOS
Detector
FOS
Detector
CKIN1
LOS2_EN
C2B
E
CK2_BAD_PIN
CK_BAD_POL
LOS2_INT LOS
Detector
FOS
Detector
CKIN2
PD_CK1
PD_CK2
FOS2_INT
FOS2_EN
FOS_EN
FOS_EN
