25
CDP-XE570

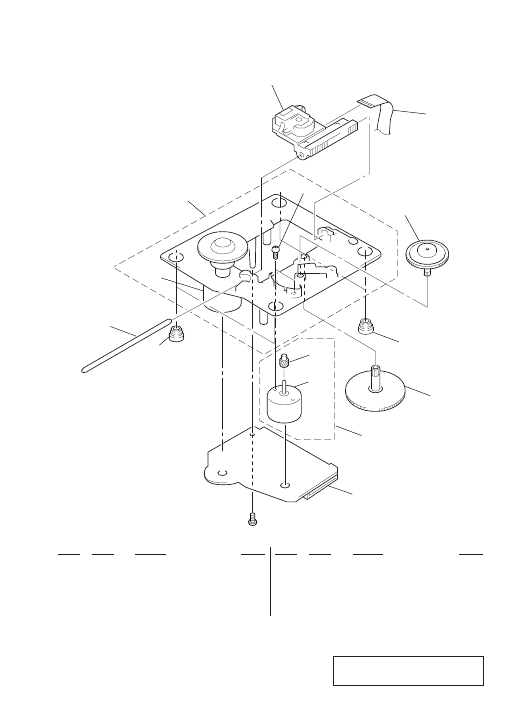

7-3. BASE UNIT SECTION (BU-5BD27)
151
152
153
158
154
156
160
161
M102
M101
#2
157
159
155
154
not supplied
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
0 151
1-796-033-11 OPTICAL PICK UP
152
1-782-817-11 WIRE (FLAT TYPE) (16 CORE)
153
4-917-567-01 GEAR (M)
154
4-951-940-01 INSULATOR (BU)
155
4-917-565-01 SHAFT, SLED
156
4-917-564-01 GEAR (P), FLATNESS
157
A-4725-568-A BD BOARD,COMPLETE
158
3-713-786-51 SCREW +P 2X3
159
4-917-566-01 GEAR (S)
160
X-4917-504-1 MOTOR ASSY
161
X-4917-523-3 BASE (OUTSET) ASSY
M102
1-541-353-11 MOTOR (SLED)
The components identified by mark
0
or dotted
line with mark
0
are critical for safety.
Replace only with part number specified.
