Page 14

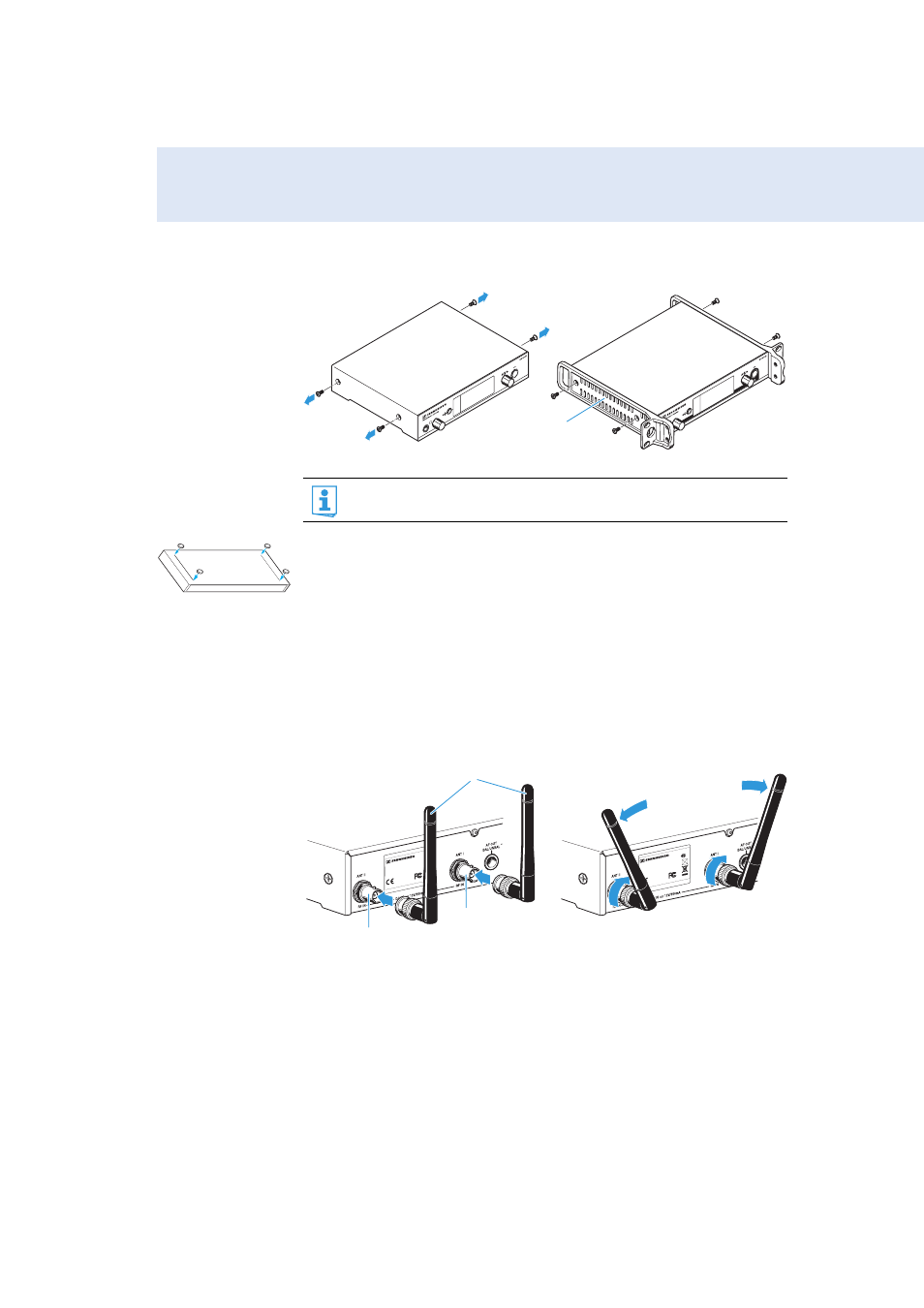

Putting the receiver into operation

Secure the rack mount “ears”

to the sides of the receiver using the

previously removed recessed head screws (see right-hand diagram).

Fitting the

device feet

Clean the base of the receiver where you want to fix the device feet.

Fit the device feet to the four corners of the receiver as shown.

Place the receiver on a flat, horizontal surface.

Connecting the

rod antennas

The supplied rod antennas

can be mounted quickly and easily and are

suitable for all applications where – good reception conditions provided –
a wireless transmission system is to be used without a large amount of
installation work.

Connect the two rod antennas

to the BNC sockets

and

at the

rear of the receiver.

Align the rod antennas upwards in a V-shape.

Do not fit the device feet when mounting the receiver into a
19” rack.

XXX - XXX

MHz

FREQ. RANGE-

SER. NO.:

XXXXXXXXXX

TRUE DIVERSITY

RECEIVER

EM 50

IDENT

. NO.:

XXXXXX

IC: 2099A-

XXXXXXX

DESIGNED IN GERMANY

, ASSEMBLED IN USA

0682
