EXTERNAL SCHEMATIC AND INSTALLATION

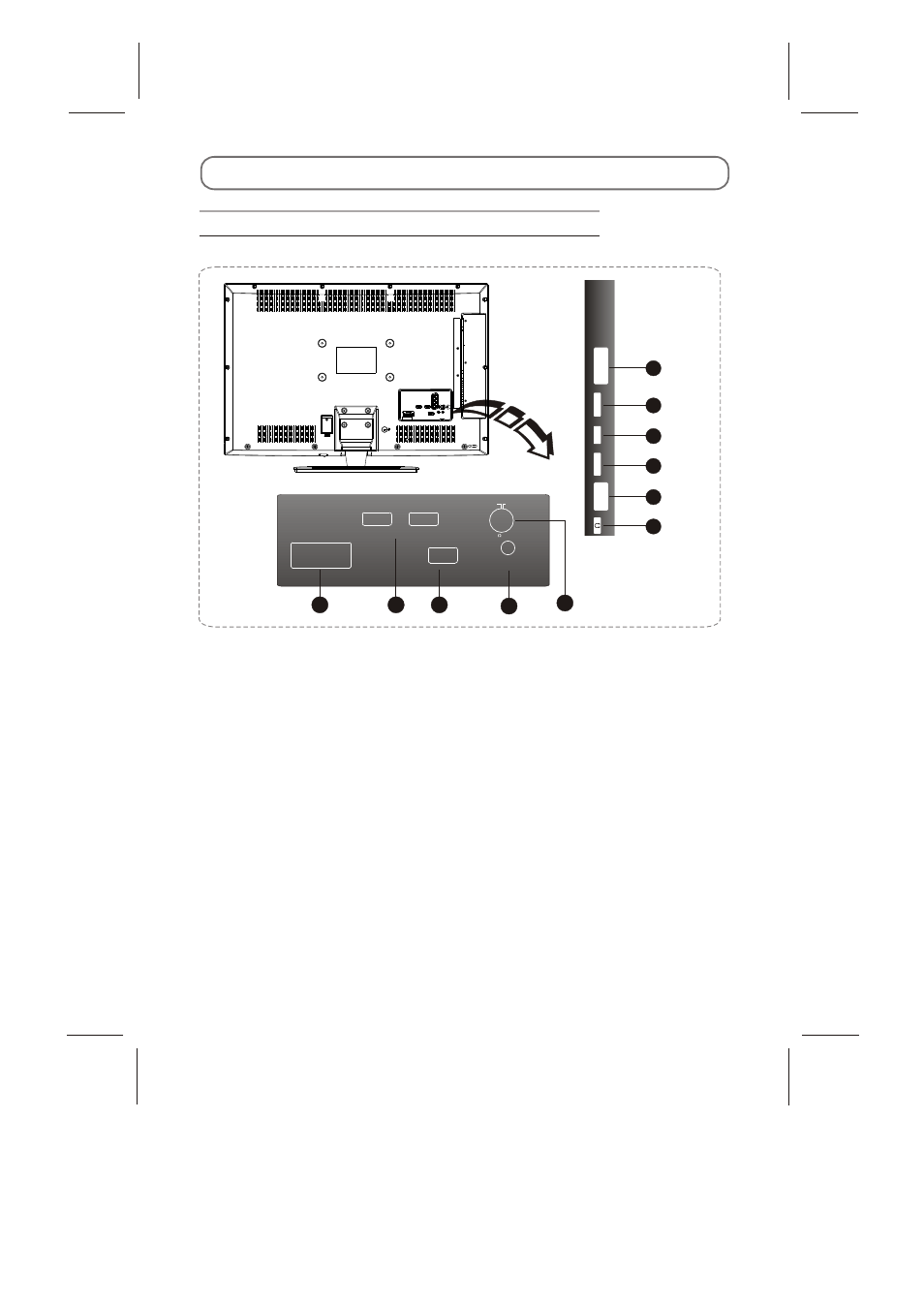

Back Panel
Note: The graphics are for representation only.
1.VGA IN: Connect a PC via a VGA cable.
2. HDMI1\HDMI2\HDMI3:Connect HDMI input signal from signal source such as DVD.
3. Uplayer1\Uplayer2: Uplayer port.
4. VGA AUDIO IN: Audio input for PC and Audio input for HDMI when the signal is DVI timing.
5. RF IN: Connect a coaxial cable to receive signal from the antenna or cable.
6. EARPHONE: Audio output, speakers will be muted when earphone plugged.
7. AV IN: Connect AUDIO and VIDEO input signal from signal source such as DVD.
AUDIO OUT: Connect AUDIO output signal.(
8. S/PDIF: Use a digital optical cable to connect your TV to a compatible audio receiver.
9. Y Pb Pr(Component input): Connect YPbPr signal from signal source such as DVD.
AUDIO IN:
Only output ATV & DTV audio.)
Connect the AUDIO input signal for YPbPr.
~7~
S
/P
D
IF
H
D M
I1
U p la
y e r1
C
O M
P
O N
E N
T I N
&
A
U D
IO
I N
A V I N
&
A
U D
IO
O
U T
2
3
6
7
8
9
HDMI3 HDMI2
Uplayer2
VGA IN
VGA
AUDIO IN
75 ANT
1 2 3 4 5
