Smooth Fitness 5.25 User Manual
Page 15
SMOOTH 5.25 MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
15
ASSEMBLY
STEP 6:

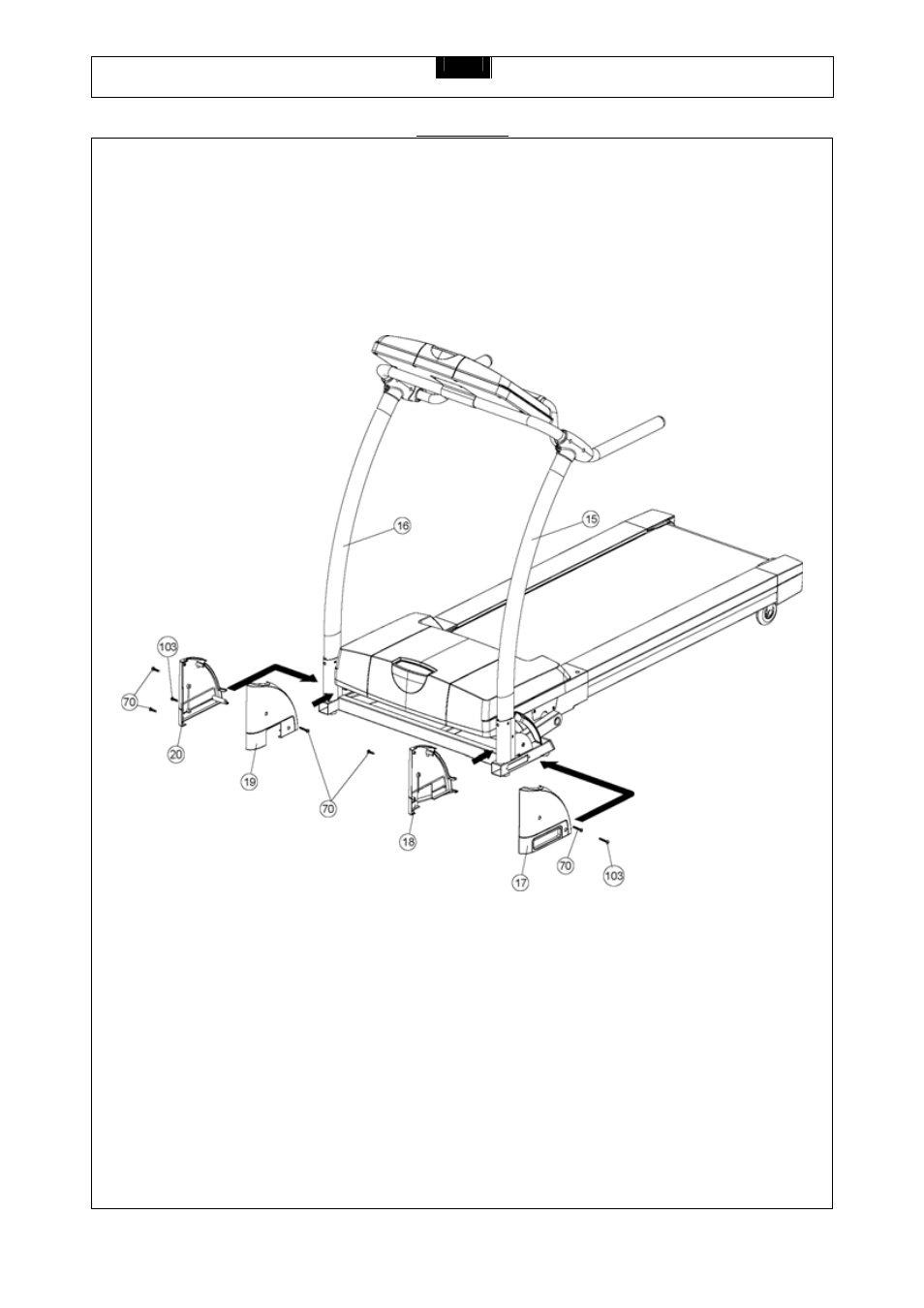

Attach the Upright Base Cover – Left #2 (18) and Upright Base Cover – Left #1 (17) over the Left Upright (15).
Secure using three Plastic Fixing Insert (72) and three M4 x 15mm Screw (70). Attach the Upright Base Cover –
Right #2 (19) and Upright Base Cover – Right #1 (20) over the Right Upright (16). Secure using three Plastic Fixing
Insert (72) and four M4 x 15mm Screw (70).
