R
L V I D E O 1
S - V I D E O
V I D E O
ANT
HEAD P HONE
A U D I O
ANT
IN OUT

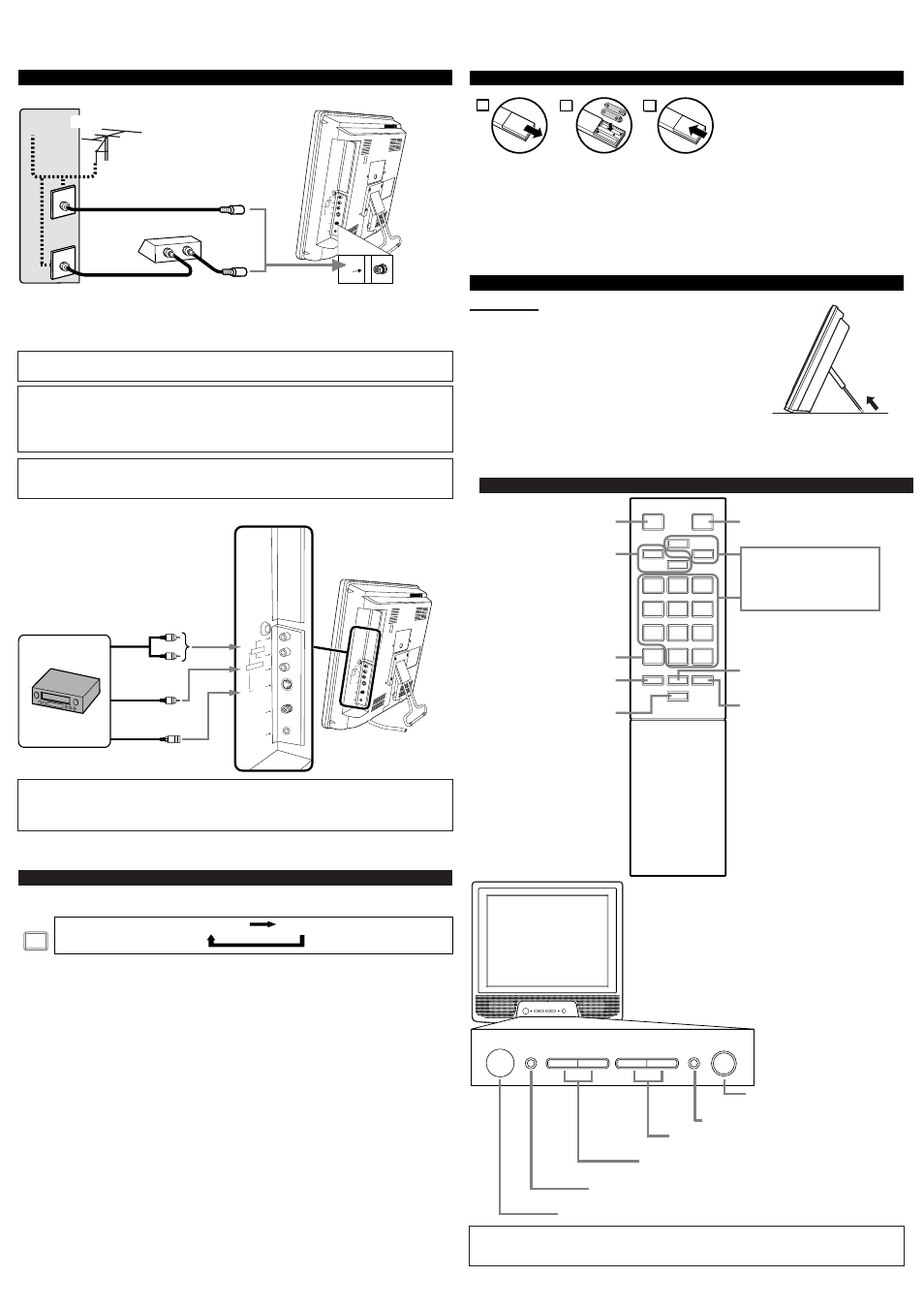

INSTALLING THE BATTERIES
Install two AAA batteries (supplied)
matching the polarity indicated inside
battery compartment of the remote con-
trol.
[BATTERY PRECAUTIONS]
• Be sure to follow the correct polarity as indicated in the battery compartment.
Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries
with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.
• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
PREPARATION FOR USE
2 1 3
CONNECTIONS
R
L
S - V I D E O
V I D E O
ANT
HEAD P HONE
A U D I O
V I D E O 1
R
L
S-VIDEO
VIDEO
ANT
HEAD PHONE
VIDEO1
AUDIO
OPERATIONS
Note:
● If some digits appear in the corner of the screen when the unit is turned on for the first time, hit
[POWER] without unplugging the power cord.
Audio Cable
Video Cassette
Recorder
Notes:
● The AUDIO L jack is for mono input. The sound is heard from both speakers. Use this jack for
connecting monaural audio equipment.
● The S-VIDEO jack is given priority over the VIDEO jack.
Rear of this TV
REMOTE CONTROL AND FRONT PANEL FUNCTION
1 2 3
4 5 6
7 8 9
0 +100 MENU
o
n
p m
MUTE SLEEP
DISPLAY
CH RET
INPUT
SELECT
POWER
CH
VOL
POWER button
To turn TV on/off
Channel number buttons
CH(ANNEL) K K/L L buttons
MENU button
To view on-screen menu SLEEP button
DISPLAY button
To display CH No./Audio Status
CH(ANNEL) RET(URN) button
To return to previous channel
INPUT SELECT button
To select TV or external input
MUTE button
To mute sound
VOL(UME) X X/Y Y buttons
To adjust volume
To select channels
MENU Y VOLUME X L CHANNEL K SELECT POWER
MENU Y VOLUME X L CHANNEL K SELECT POWER
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
[EXTERNAL CONNECTION]
ex.
Plug the incoming cable into the ANT. jack on the rear of the TV.
*NOTE (DO NOT DISCONNECT FROM BOX)
Some cable TV systems use scrambled signals
and require a special converter to receive these
channels. Consult your local cable company.
(OUT)
(OUT)
(IN)
(IN)
Note:
• For your safety and to avoid damages to the unit, unplug the antenna cable from the
ANT jack before moving the unit.
(OUT)
S-Video Cable
(IN)
SELECTING AUDIO/VIDEO INPUT
When you use the AUDIO/VIDEO input jacks, select “VIDEO1” mode by hitting [INPUT
SELECT] on the remote control. The input mode changes by hitting the button as following:
TV channel VIDEO1 INPUT
SELECT
VIDEO1 input
You can bracket this product as wall mounting TV using the arm adapted for 100mm (commer-
cially available).
POWER button
To turn TV on/off
SELECT button
CHANNEL K K/L L buttons
To select channels
VOLUME X X/Y Y buttons
To adjust volume
MENU button
To view on-screen menu
Infrared Sensor Window
Photo Stand
Adjust the length of the stand in 5 levels
to change the angle of the TV.
PHOTO STAND
Video Cable
OR
Rear of this TV
OR
Incoming cable from home Antenna /
Cable Company (No Cable Box)
Incoming cable from Cable
Company or Satellite Antenna
Cable Box or
Satellite Box*
Cable
TV signal
Antenna
OR
