Operating the Tractor

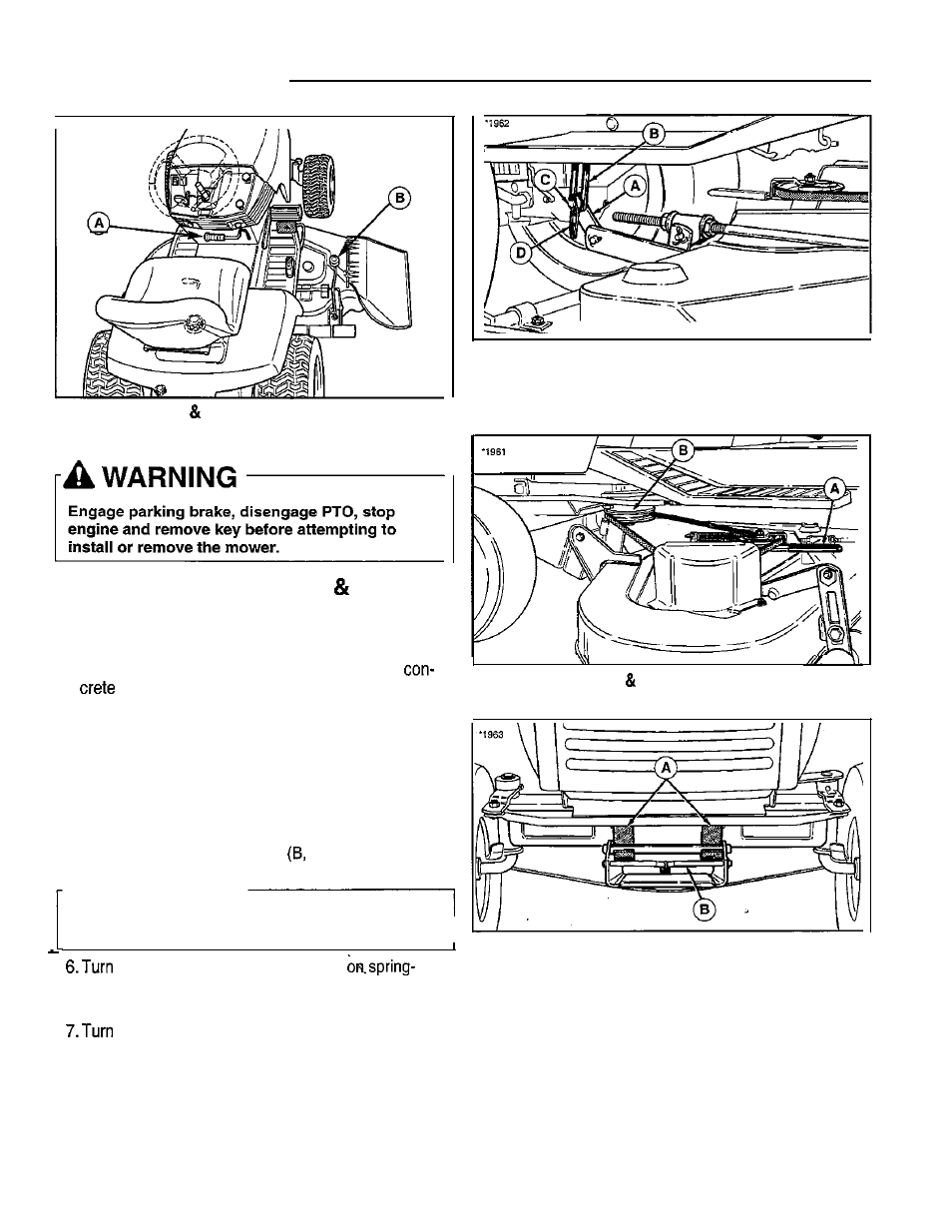

Figure 6. Raising Lowering Mower
A. Mower Lift Lever B. Mower Height Adjuster
MOWER DECK REMOVAL
INSTALLATION
Removing the Mower Deck
Figure 7. Lift Arms
(Viewed from underneath right side of tractor)
A. Mower Lift Arm
C. Flat Washer
B. Tractor Lift Arm D. Safety Clip
1. Park tractor on a hard, level surface such as a
I
floor. Turn off PTO switch and engine, remove
Figure 6. Removing Installing Belt
the key and apply parking brake.
A. Idler Arm B. PTO Pulley
2. Place mower in the lowest cutting position using the
mower height adjuster (B, Figure 6).
3. Place the mower lift lever (A, Figure 6) in the lowest
position.
4. Disconnect the mower lift arm from the tractor lift arm
(A, Figure 7). Re-install washer and safety clip.
5. Remove belt from PTO pulley Figure 8).
A
CAUTION
The muffler and surrounding areas may be hot.
I
wheels straight ahead. Pull back
loaded lever (B, Figure 9) and lift mower hitch off of
the tractor brackets.
Figure 9. Mower Hitch
A. Tractor Hitch Brackets
B. Spring-Loaded Lever
wheels fully left, and slide mower deck out right
side of tractor.
