Spirit CT 800 User Manual
Page 10
CT800
-9-

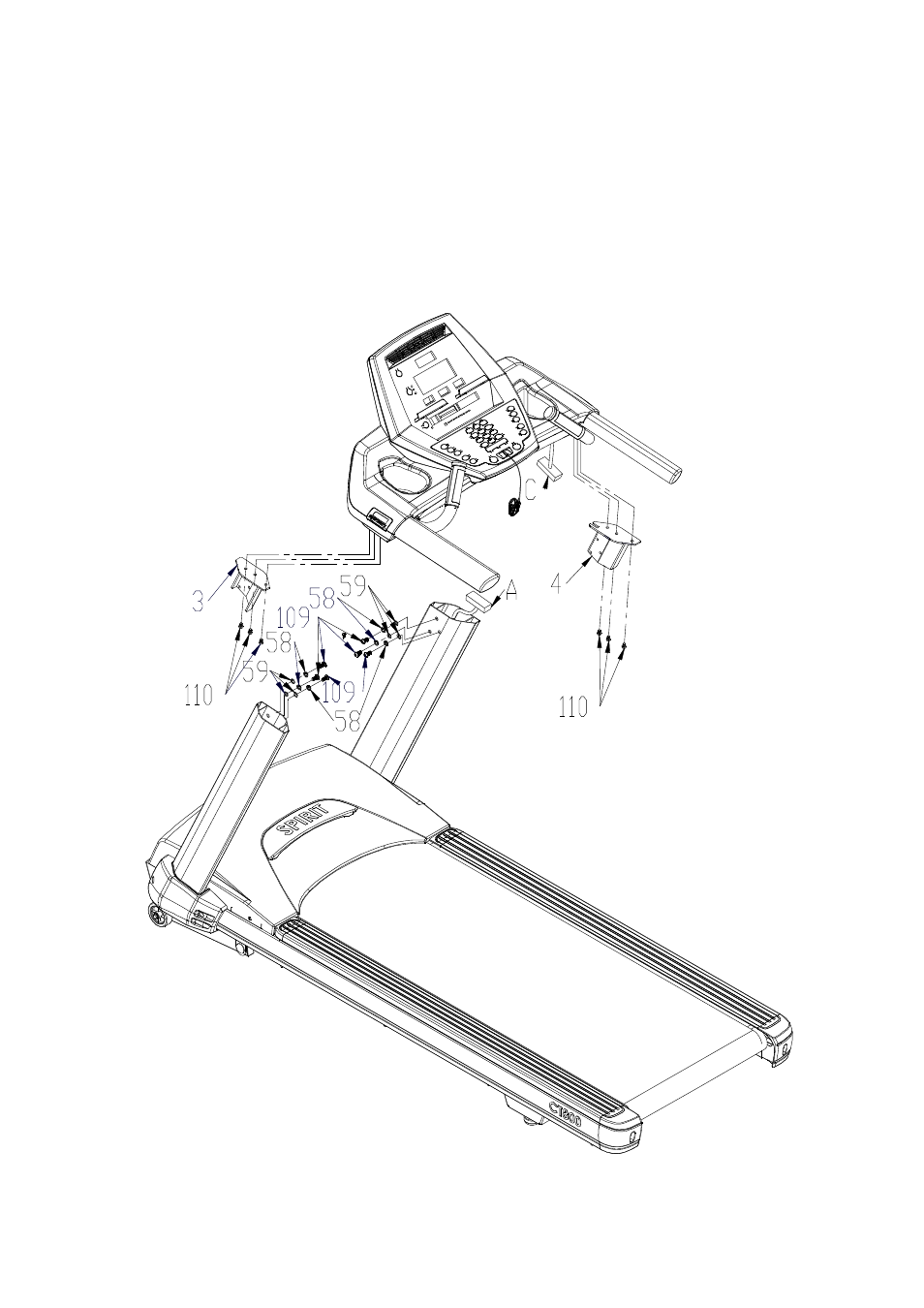

Step 3: Console Assembly to Upright Tubes
•
Attach the two interface mounts (3 left & 4 right) to the console assembly frame with six M8 x
12mm screws (110).
•
Connect the console computer cable (C) to the mating cable (A) from the upright tube.
•
Attach the console assembly to the top of the uprights with six 3/8 x 3/4 bolt (109), 3/8 split
washer (58) and 3/8 flat washer (59). Be careful not to pinch the computer cable.
