Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
6

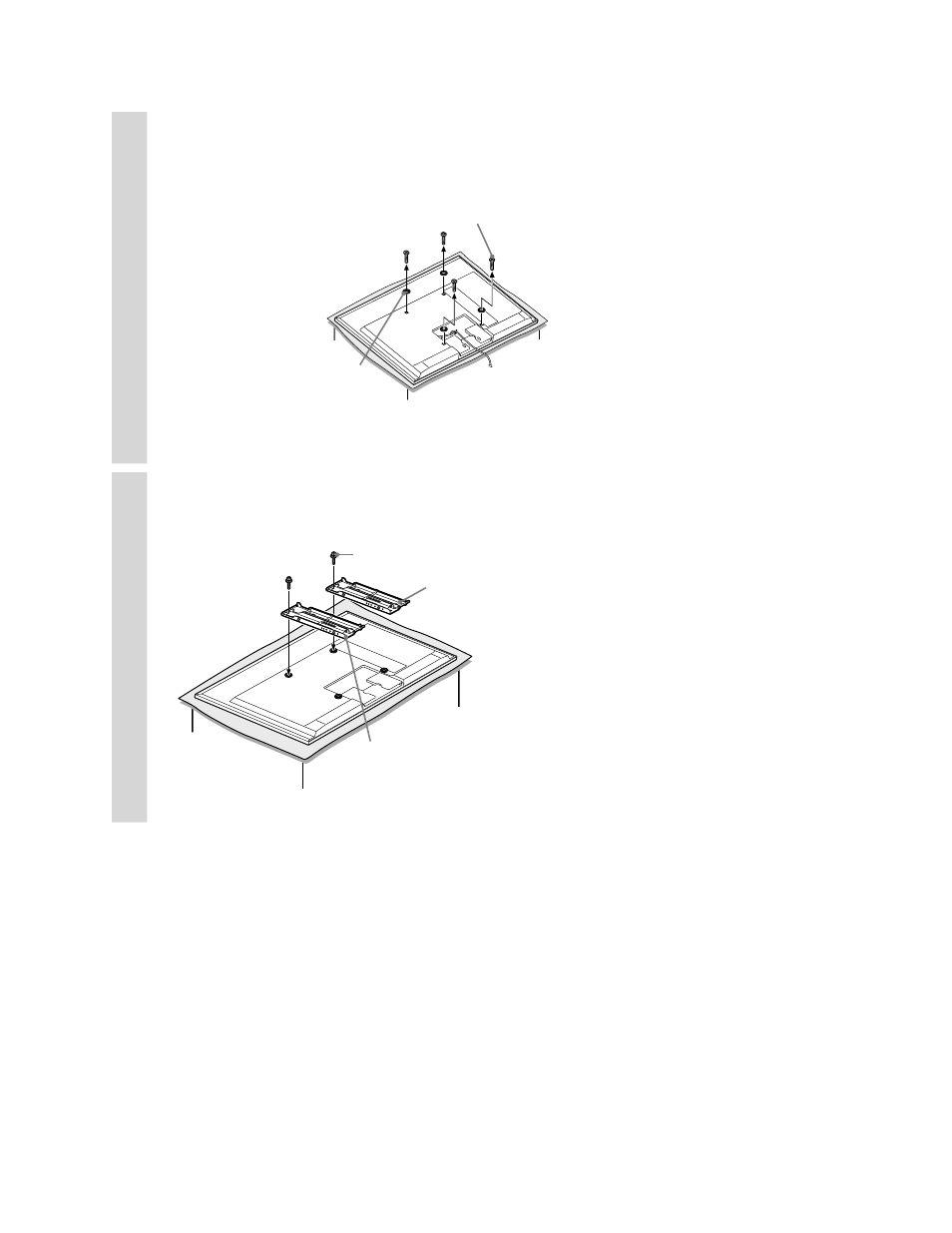

Place the Spacers. (KDL-52NX80
* only)
Place the four spacers (supplied).
Remove the four screws, and be sure
to store them in a safe place, keeping
them away from children.
* In the actual model names, the “” indicates numbers and/or characters specific to each model.
7
Attach the Mounting Bracket to the rear of the TV temporarily.
Temporarily tighten the top of the Mounting Bracket using two screws (+PSW M6 × 6).
Screw
Mounting
Bracket
Mounting
Bracket
