SIR-ECL1 Operation and Installation Guide
9

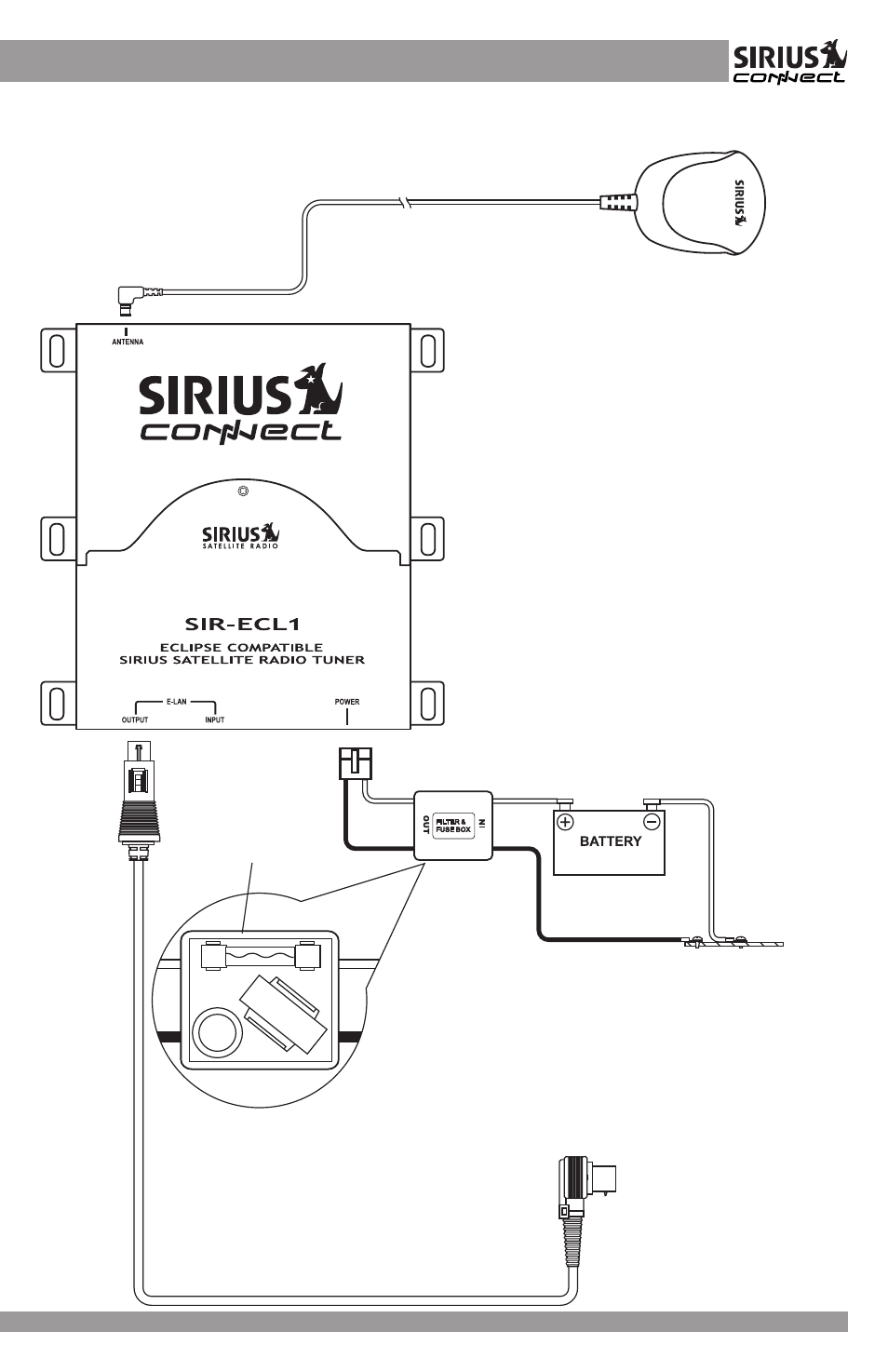

SIR-ECL1 Installation Guide
Antenna (21’ cable) - Mount on
Roof of Vehicle
Power
Harness
Black
Connect to Chassis Ground
3.5-meter E-LAN Cable
(Connect to ECLIPSE
Sirius-Ready Headunit)
Yellow – Connect to Battery Positive
Right-angle SMB
Connector
Power Harness Connector
After the wiring connections are complete, plug
the wiring harness into the connector. Make
sure to insert firmly to lock the connector in
place.
*NOTE* BE SURE TO CONNECT THE BATTERY (Yellow)
AND GROUND (Black) WIRES CORRECTLY. IF THEY ARE
CROSSED, THE FUSE INSTALLED IN THE POWER
HARNESS FUSE BOX WILL BLOW.
1AMP Fuse
To access the fuse, remove the top
cover of the in-line filter/fuse box
