-17-
More About Speed Changes
Spindle Adjustments
Your new drill press comes fitted with a depth
stop for use when drilling. Follow the instruc-
tions below for use.
1. Loosen the depth collar lock knob. Figure
26.
2. Rotate the depth collar to the desired depth
indicated by the scale on the collar. Secure
the collar with the lock knob.
3. Test the depth stop by measuring how far
the spindle actually moves when handles are
rotated. Figure 27. Make adjustment using
step 1 and step 2 if needed.
Figure 26. Loosening collar lock knob.
Figure 27. Actual stop depth being measured.

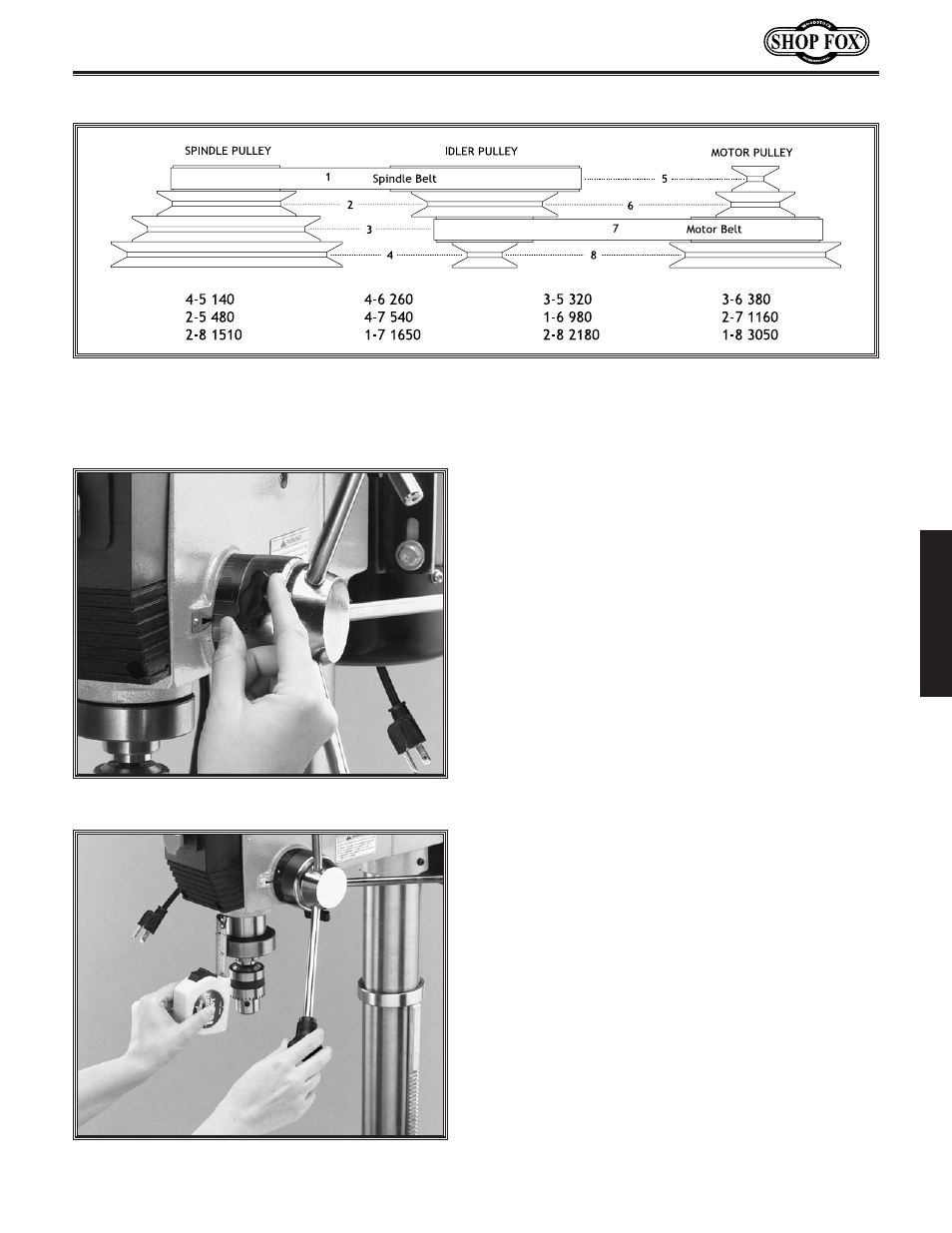

The speed chart above is included to help illustrate belt changes necessary to produce a desired speed.
Select the proper speed for the job at hand and find it on the speed chart above. Move the belts to the
indicated location on the chart. The belt setting in the example above, shows the spindle belt is in the
#1 position and the motor belt is in the #7 location. This will produce a speed of 1,650 RPM.
ADJUSTMENTS
