Create the group information with a text file
The PJ Master enables you to import the group information of the network from the text file which
defines the target and server information. To import the group information from the text files, pre-
pare a defined file based on the format described on item ”Network tree data format” below. How
to import the defied file, refer to item “Import the group information from the defined file” (p.23).
Network tree data format
The defined file is a tab-deliminated file created with spreadsheet software and it is defined as fol-
lows. Refer to item “Practical example of defined file” below for further information.
Column
Description (example)
ID code
Sequence number (1,2,3,4.....)
Target name
Server name or Target Name (Server_A, Server_B, Proj_01, Proj_02.
PDP_10)
Target property
0: Server, 1: Projector, 2: PDP (0,1,2)
IP Address
Assigned IP address (192.168.0.1,)
Parent ID code
ID of the server to which the target links. The top server should be set “0”
Layer
0: top layer, 1: 2nd layer, 2: 3rd layer,...(0,1,2,3..)
Disconnect number
Number of disconnected targets (1,2,3,4,5...)
Telnet password
Password for telnet login to the target (blank: no password)
License key
License key code for the PJ Master
Updated Date
(2005-05-28 12:15:00)
Top Server
Server_A
Server_C
Server_D
Server_E
Server_B
Server_G
PDP_201
PDP_202
PDP_203
PDP_204
Proj_01
Proj_02
Proj_03
Proj_04
Proj_05
Proj_101
Proj_102 Proj_103
Proj_104 Proj_105
Proj_201
Proj_202 Proj_203
Proj_204 Proj_205
Proj_301
Proj_302 Proj_303
Proj_304 Proj_305
Proj_401
Proj_402 Proj_403
Proj_404 Proj_405
Proj_406
Proj_407
Proj_06
Proj_07
Proj_08
Proj_09
Proj_10
Server_F
PDP_101
PDP_102
PDP_103
PDP_104
Layer=0
ID=0
(192.186.0.1)
ID=1
ID=14
ID=8
ID=20
ID=25
ID=35
ID=31
Layer=1
Layer=2
Layer=3
Practical example of the defined file

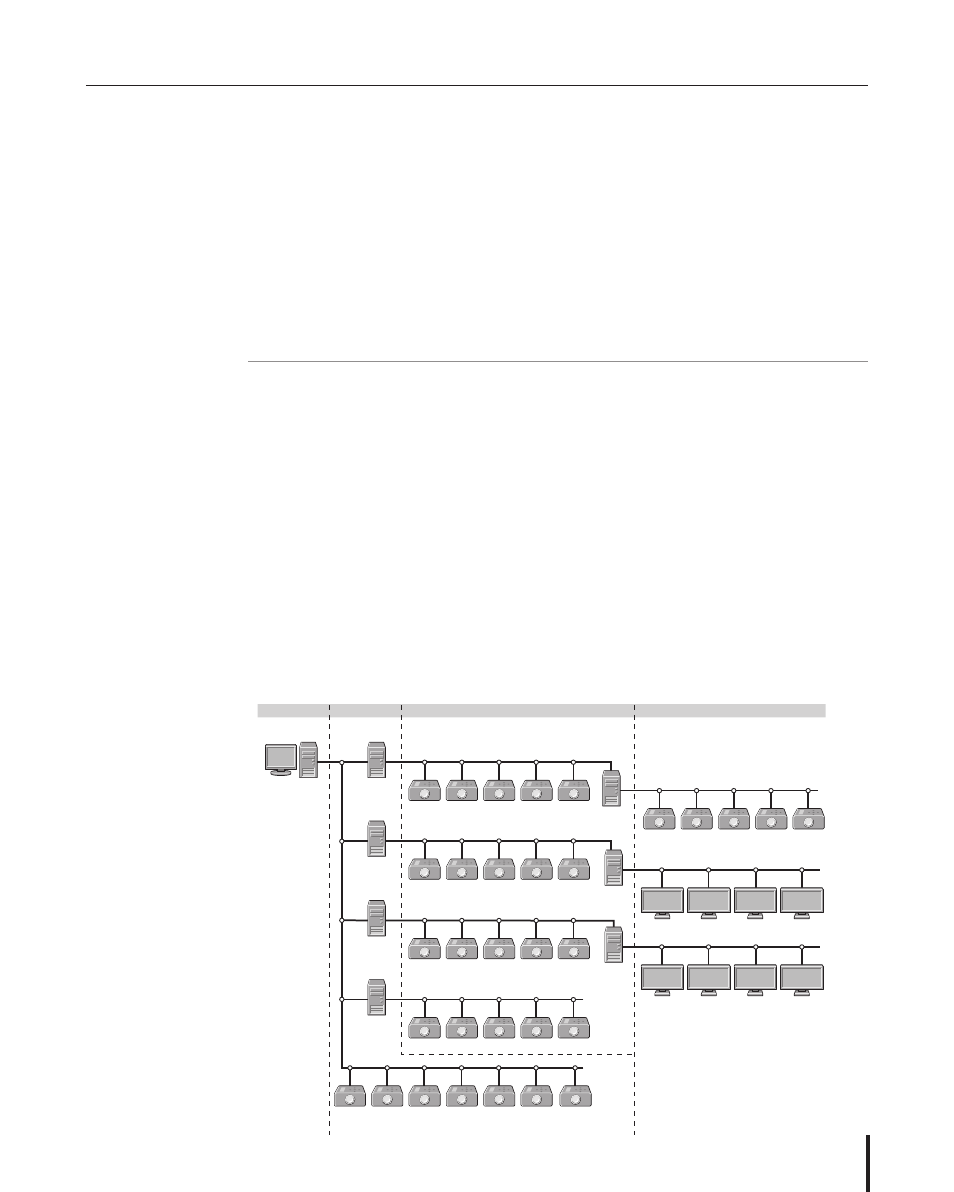

Describes how to create the defined file if you setup the tree formatted network as the below
environment.
Create the network tree data with a text file
