Sony RDR-VX511 - Manual (Page 116)

116

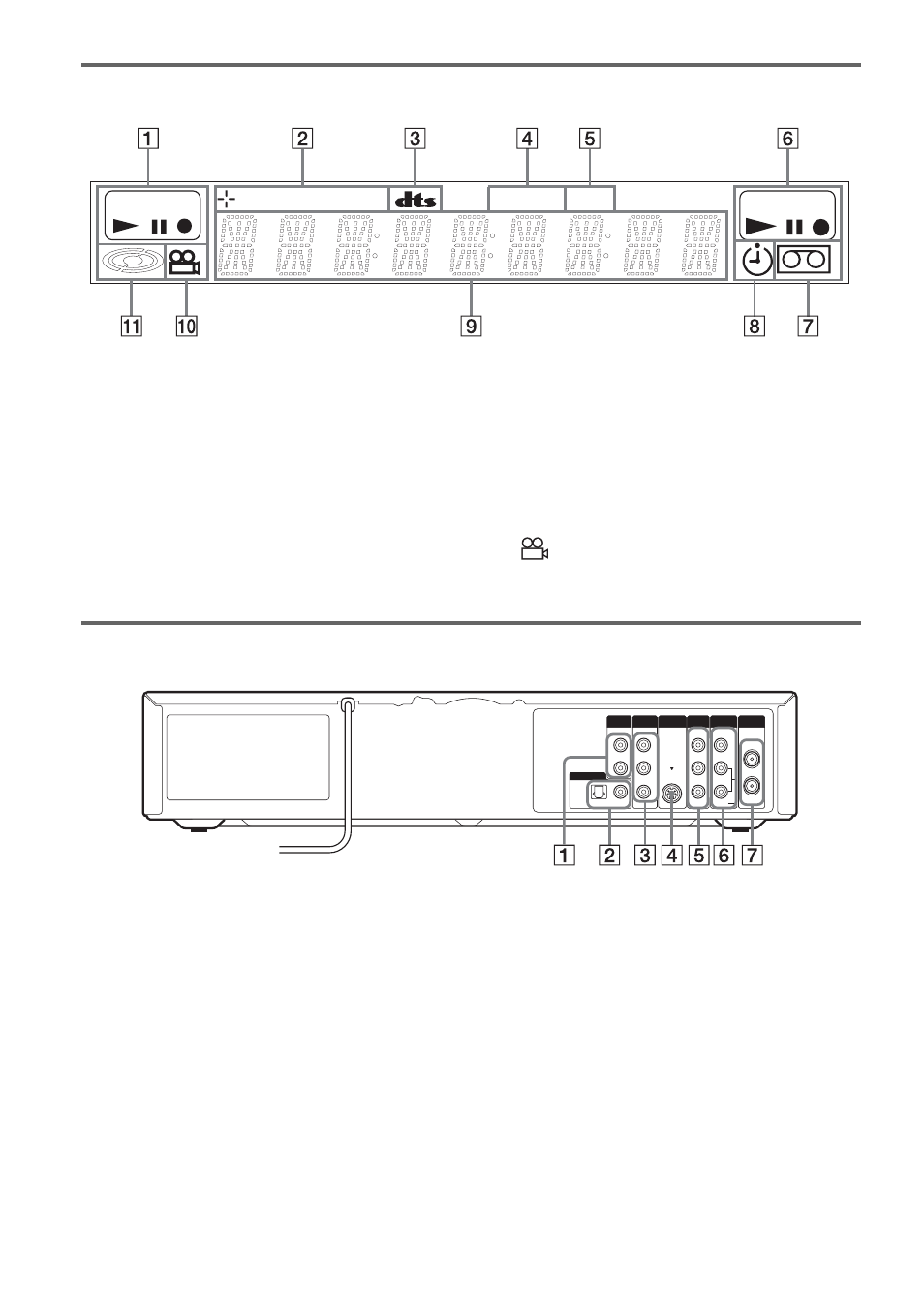

Front panel display
A DVD Playing/recording status
B Disc type/recording format
C Audio signal indicators
D STEREO indicator (45, 73)
E SAP (Second Audio Program) indicator
(45, 73)
F VIDEO Playing/recording status
G Tape indicator
H Timer indicator
I Displays the following (44, 71):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
• Clock
• Channel
J
(angle) indicator (33)
K Disc indicator
Rear panel
A AUDIO OUT L/R jacks (17)
B DIGITAL AUDIO OUT (COAXIAL/
OPTICAL) jacks (17)
C COMPONENT VIDEO OUT (Y, P
B
, P
R
)
jacks (16)
D S VIDEO OUT jack (15)
E LINE 1 IN (VIDEO/AUDIO L/R) jacks
(27)
F LINE OUT (VIDEO/AUDIO L/R) jacks
(15, 16)
G VHF/UHF IN/OUT jacks (14)
DVD
RW VR VCD SAP
VIDEO
STEREO
IN
L
R
VIDEO
AUDIO
OUT
VHF/UHF LINE OUT
VIDEO
Y L
P B R
P R
AUDIO
LINE 1 IN AUDIO OUT S VIDEO OUT COMPONENT
VIDEO OUT
DIGITAL AUDIO OUT
OPTICAL COAXIAL
