When the video input signal is connected
to the Y-Pb/Cb-Pr/Cr jacks, select y,Pb/
Cb,Pr/Cr.
When the video input signal is connected
to the VIDEO jack, select Video.
When the video input signal is connected
to the S-VIDEO jack, select S-video.
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
When the video input signal is connected
to the Y-Pb/Cb-Pr/Cr jacks, select y,Pb/
Cb,Pr/Cr.
When the video input signal is connected
to the VIDEO jack, select Video.
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
Video
y,Pb/Cb,Pr/Cr
Video
S-video
Input Selection
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
INPUT 1 MENU
HDMI
RGB(Scart)
When scart video equipment is connected to the
INPUT 1 (ANALOG) terminal, select RGB (Scart).
When the video signal is connected to the HDMI
terminal, select HDMI.
INPUT 2 MENU
INPUT 3 MENU
y,Pb/Cb,Pr/Cr
1
2
3

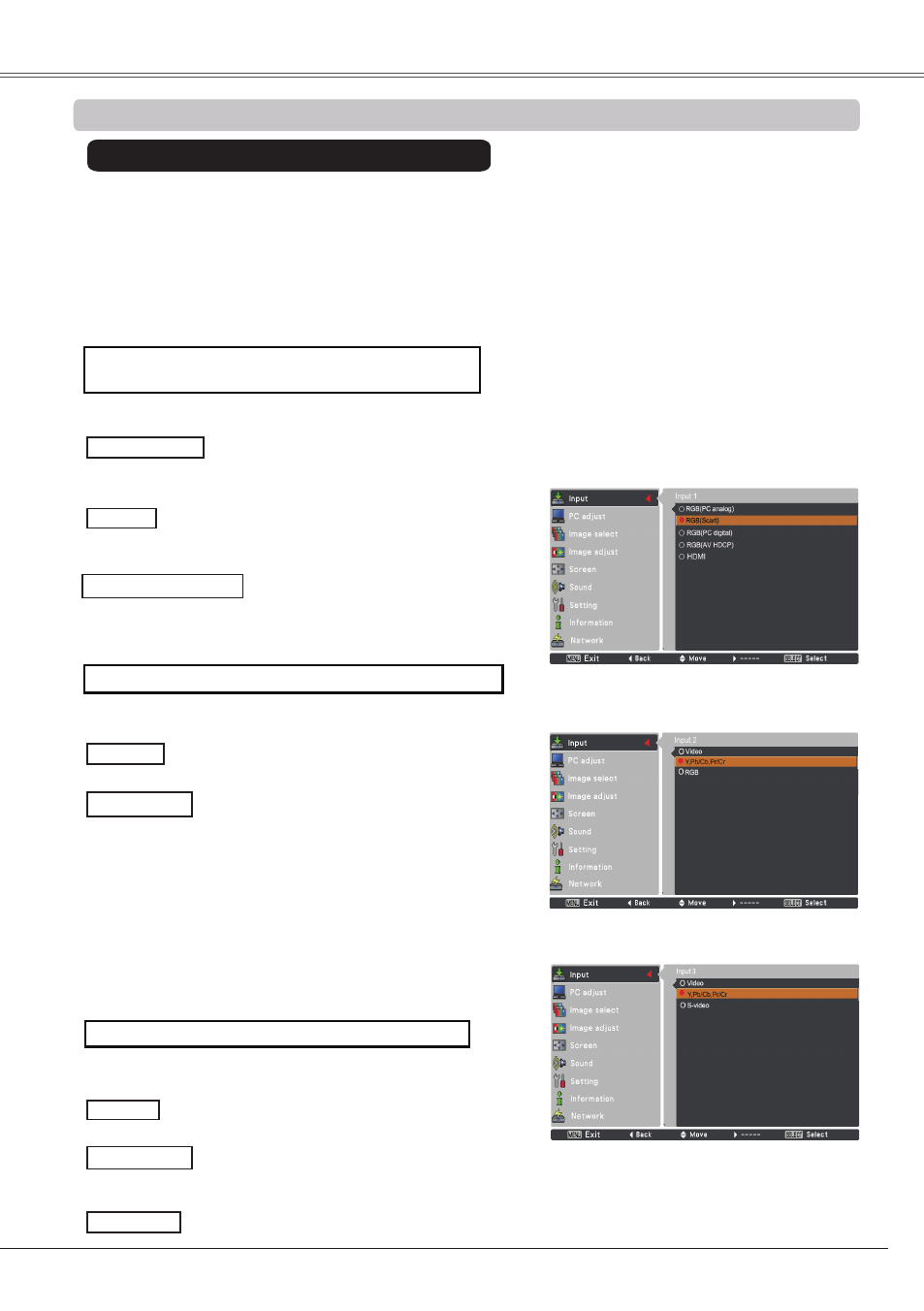

Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select Input and
then press the Point ► or the SELECT button.
Use the Point ▲▼ buttons to select the desired input
and then press the Point ► button to access the
submenu items.
Use the Point ▲▼ buttons to select the desired
source and then press the SELECT button.
Video Input Source Selection
Menu Operation
 Note:
• When the video input signal is connected to
the Y-Pb/Cb-Pr/Cr jacks, Y,Pb/Cb,Pr/Cr takes
precedence of RGB.
• Y,Pb/Cb,Pr/Cr input can accept the component
signal and the analog RGB signal. When analog
RGB signal is not recognized in Y,Pb/Cb,Pr/Cr input
source, set to RGB input manually.
WHEN SELECTING INPUT 1 (COMPUTER INPUT
TERMINALS )
WHEN SELECTING INPUT 2 (5 BNC INPUT jACKS )
WHEN SELECTING INPUT 3 (AV TERMINALS )
RGB(AV HDCP)
If the HDCP-compatible signal source is
connected to the INPUT 1 (DIGITAL) terminal,
select RGB (AV HDCP).
35
