Arts, 300 r, Open top burner parts – Southbend 336D-3T User Manual
Page 49
M
ODEL
300 R
ESTAURANT
R
ANGES
P
ARTS

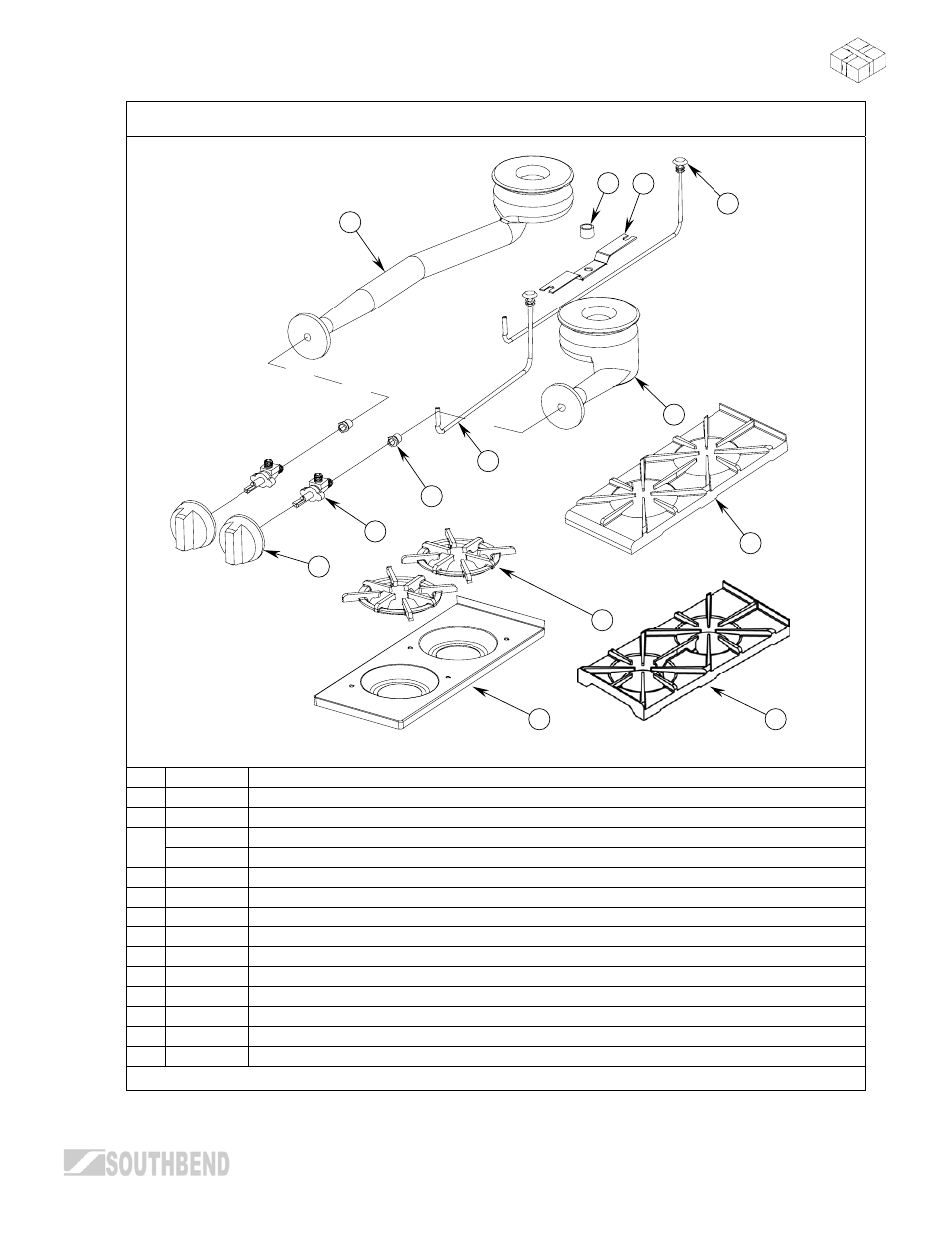

Open Top Burner Parts
1
2
3
4
5
6
7
8
9
11
10
12
13
Key Part
Number Description
1 1178204 Knob Control
2 1178202 Gas
Valve
3 1008745 Hood Orifice #45 (Natural Gas)
1008755 Hood Orifice #55 (LP Gas)
4 1177447 Pilot
Assembly,
Front
5 1177111 Burner
Assembly,
Front
6 1177448 Pilot
Assembly,
Rear
7
1180872
Pilot Support Bracket
8 1179710 Spacer
9 1177439 Burner
Assembly,
Rear
10
1107596
Enameled Top Plate (for units manufactured before January 1, 2000)
11
1160162
Spider Grate (for units manufactured before January 1, 2000)
12
1181340
Grate Top (for units manufactured after January 1, 2000 through October 13, 2003)
13
1181340
Grate Top –27” with bowl (for units manufactured after October 13, 2003)
* not shown on drawing
PARTS
O
PERATOR
’
S
M
ANUAL
1182298
REV
3 P
AGE
49
