Electrical schematic for 120 volt ranges, Roubleshooting – Southbend 336D-3T User Manual

Page 42

background image

T

ROUBLESHOOTING

M

ODEL

300 R

ESTAURANT

R

ANGES

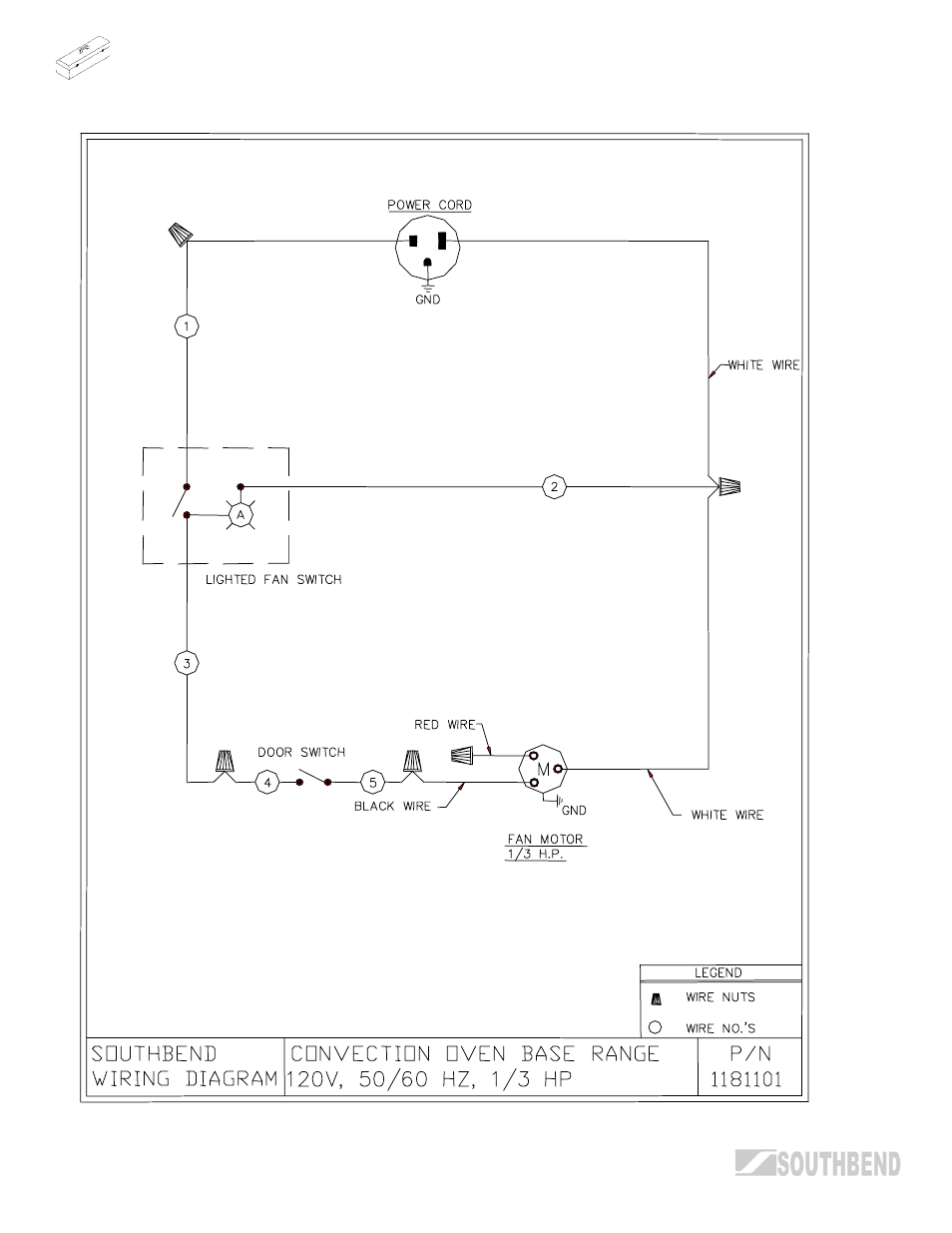

Electrical Schematic for 120 Volt Ranges

TROUBLESHOOTING

P

AGE

42 O

PERATOR

’

S

M

ANUAL

1182298

REV

3
