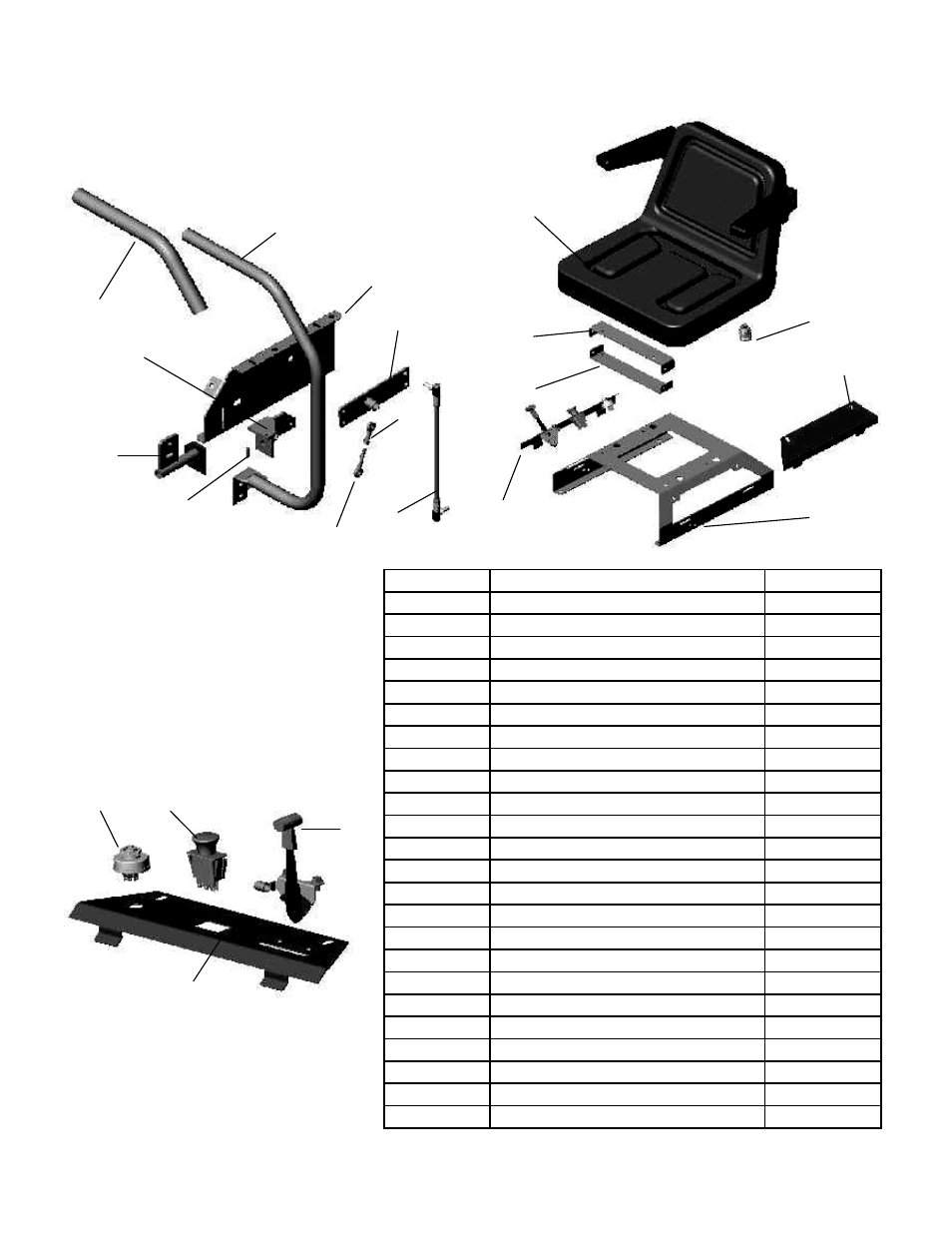

STEERING (LEFT)
SEAT BASE ASSEMBLY
SEE DETAIL
THIS PAGE
49
50
57
51
52
56
55
53
54
CONTROL CARD
58
59
60
61
62
63
64 65
66
67
IT EM # DESCRIP T ION P ART #
49 HANDLE GRIP 3673
50 DIRECT IONAL HANDLE 3685T K
51 CONT ROL CARD LEFT 3620T K
CONT ROL CARD RIGHT 3621T K
52 UNIVERSAL P IVOT P LAT E 3698T K
53 CONNECT OR (FEMALE) 3608
54 DIREC. CONT ROL LINKAGE 3670
55 CONNECT OR (MALE) 3721
56 1/4 SET SCREW NB310
57 HANDLE MOUNT LEFT 3636T K
HANDLE MOUNT RIGHT 3635T K
58 SEAT ASSEMBLY 3724
ARM REST KIT 3603
59 SEAT BRACKET 3662T K
60 SEAT BRACKET 3661T K
61 SP RING 3609
62 RIGHT CONT ROL COVER 3726
63 SEAT MOUNT 3613C
64 KEY SWIT CH 3623
65 P T O SWIT CH 3605
66 T HROT T LE CABLE ASSY 3640
67 LEFT CONT ROL COVER 3722
68 LEFT P IVOT WELDMENT 3700T K
RIGHT P IVOT WELDMENT 3699T K
68
