Ventilation

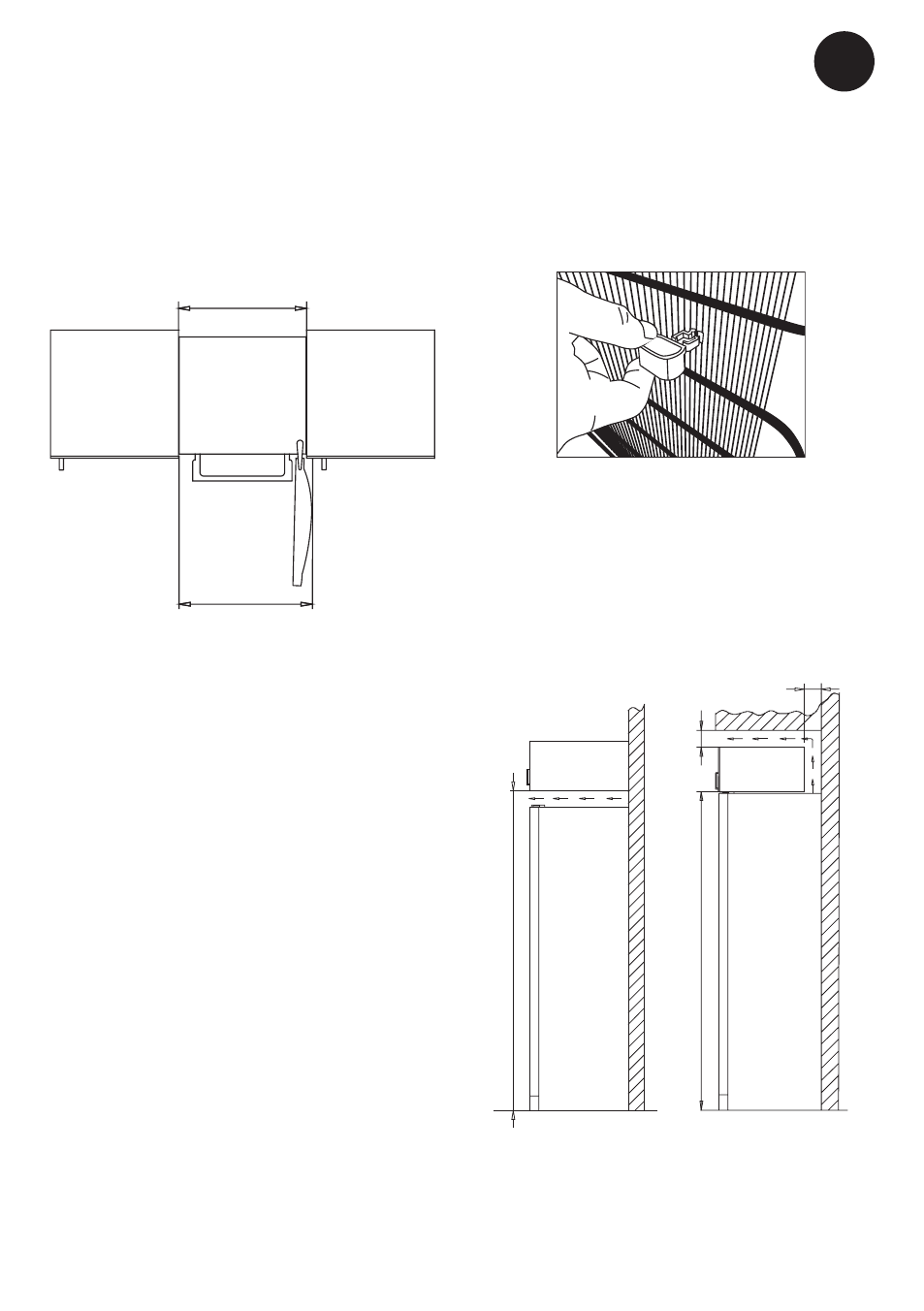

It is important that the appliance be

well ventilated and that air can circulate

unhindered above, below and around it. The

figures below illustrate how the necessary

air circulation can be ensured (figs 6-7).

The appliance viewed from

above

If the appliance is placed beside a wall,

there must be sufficient room for its door

to be opened wide enough to allow the

shelves to be pulled out (fig. 4).

Distance pieces

The distance pieces on the rear of the

appliance ensure sufficient air circulation.

Fit the distance pieces supplied with the

appliance as shown in fig. 5.

fig. 5
