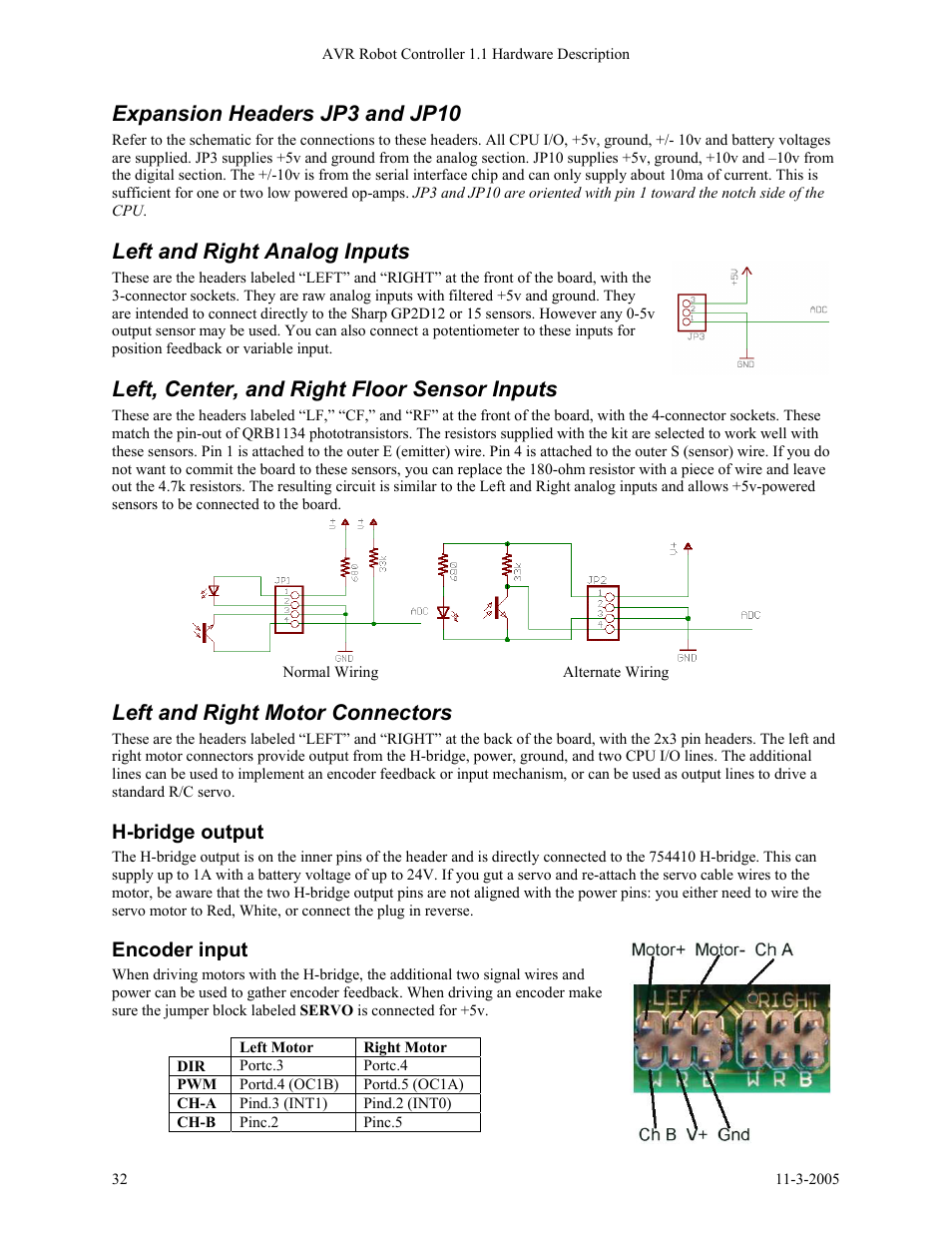

Expansion headers jp3 and jp10, Left and right analog inputs, Left, center, and right floor sensor inputs – SRS Labs SRS Robot Level 1 Kit User Manual

Page 32: Left and right motor connectors, H-bridge output, Encoder input

Expansion headers jp3 and jp10, Left and right analog inputs, Left, center, and right floor sensor inputs | Left and right motor connectors, H-bridge output, Encoder input | SRS Labs SRS Robot Level 1 Kit User Manual | Page 32 / 34 Expansion headers jp3 and jp10, Left and right analog inputs, Left, center, and right floor sensor inputs | Left and right motor connectors, H-bridge output, Encoder input | SRS Labs SRS Robot Level 1 Kit User Manual | Page 32 / 34
