— Quick Reference —

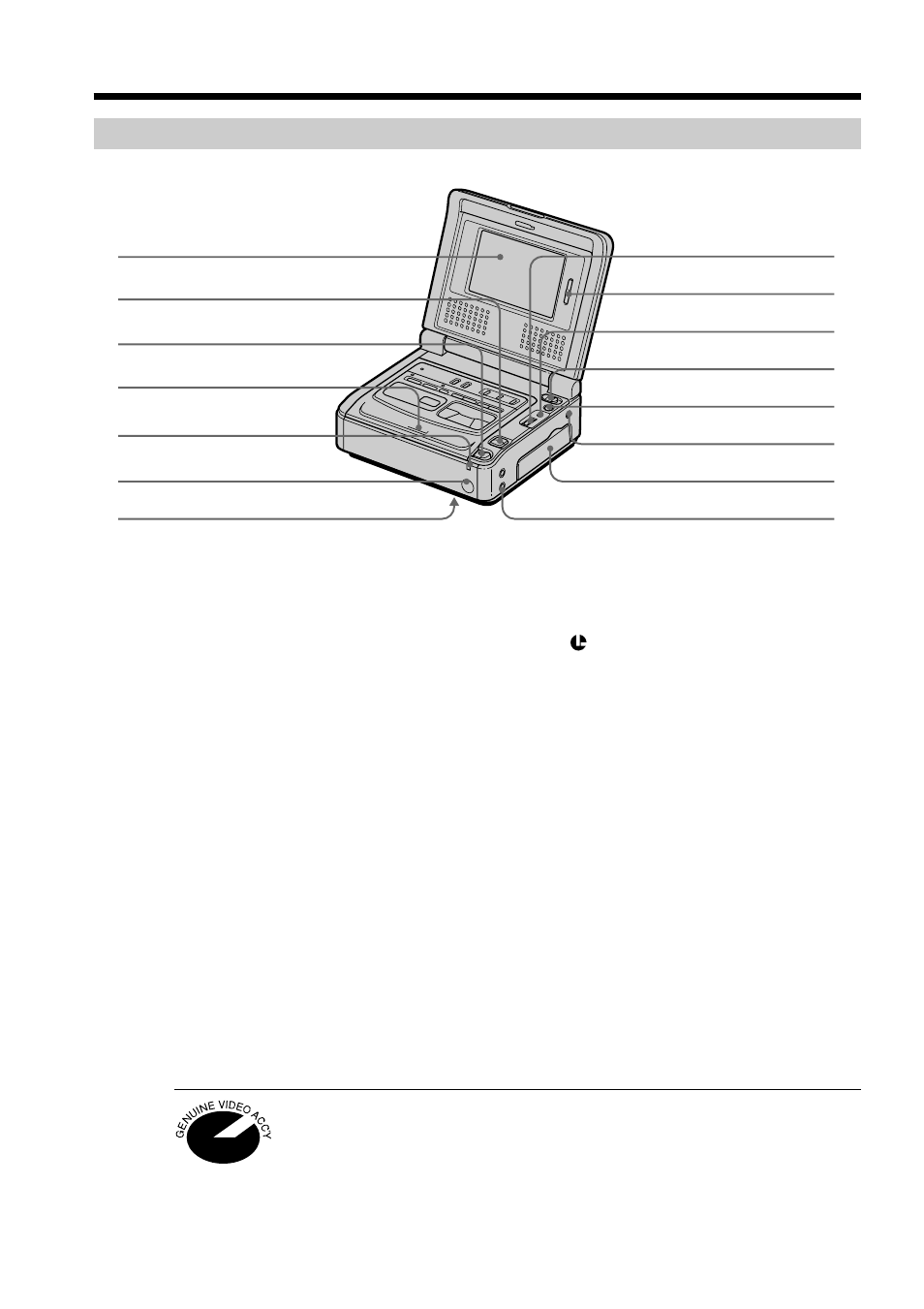

Identifying the parts and controls
This mark indicates that this product is a genuine accessory for Sony
video products.
When purchasing Sony video products, Sony recommends that you
purchase accessories with this “GENUINE VIDEO ACCESSORIES”
mark.
VCR
1 LCD screen
2 VOLUME +/– buttons (p. 12)
3 EJECT knob (p. 11)
4 Cassette compartment (p. 11)
5 POWER ON/CHARGE lamp (p. 12)
6 Remote sensor
Aim a Remote Commander (not supplied)
here for remote control.
7 RESET button (bottom) (p. 62)
8 SEL/PUSH EXEC dial (p. 14, 50)
9 LCD BRIGHT buttons (p. 12)
0 MENU button (p. 50)
qa POWER switch (p. 12)
1
2
9
q;
qa
qs
qd
qf
qg
3
4
5
6
7
8
qs SUPER LASER LINK button (p. 17)
qd LANC jack
LANC stands for Local Application Control
Bus System. The LANC control jack is used
for controlling the tape transport of video
equipment and peripherals connected to it.
This jack has the same function as the jack
indicated as control L or REMOTE.
qf Jack cover (p. 16)
qg AUDIO/VIDEO INPUT jack (p. 18, 47)
