NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 8

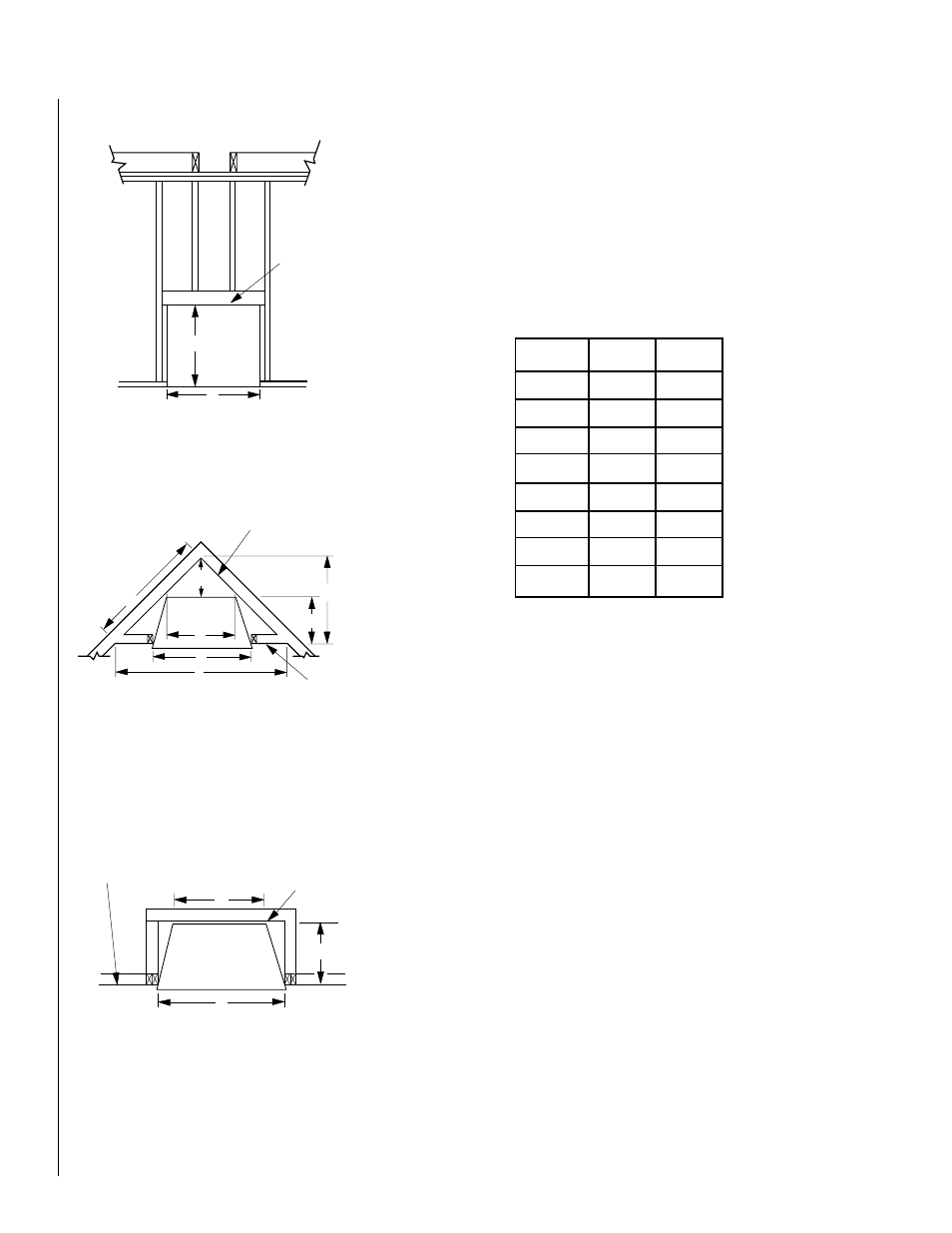

FRAMING SPECIFICATIONS
Figure 6
Figure 7
Figure 8
Opening UVF-500 UVF-600
A 41 ¹⁄₄" 46 ¹⁄₄"
B 37 ¹⁄₂" 43 ¹⁄₂"
C 27 ¹⁄₂" 31 ³⁄₄"
D 13 ³⁄₄" 15 ⁷⁄₈"
E 66 ³⁄₄" 73"
F 33 ³⁄₈" 36 ¹⁄₂"
G 19 ⁵⁄₈" 20 ⁵⁄₈"
H 47 ¹⁄₄" 51 ⁵⁄₈"
Framing Dimensions
Header
B
A
Corner Installation
H
D
C
A
E
G
F
Back Wall Of Chase/Enclosure
Including Finishing Materials
If Any
Rough
Framing Face
(Unfinished Shown)
A
G
C
Back Wall Of Chase/Enclosure
Including Finishing Materials
If Any
Rough Framing Face
(Unfinished Shown)
