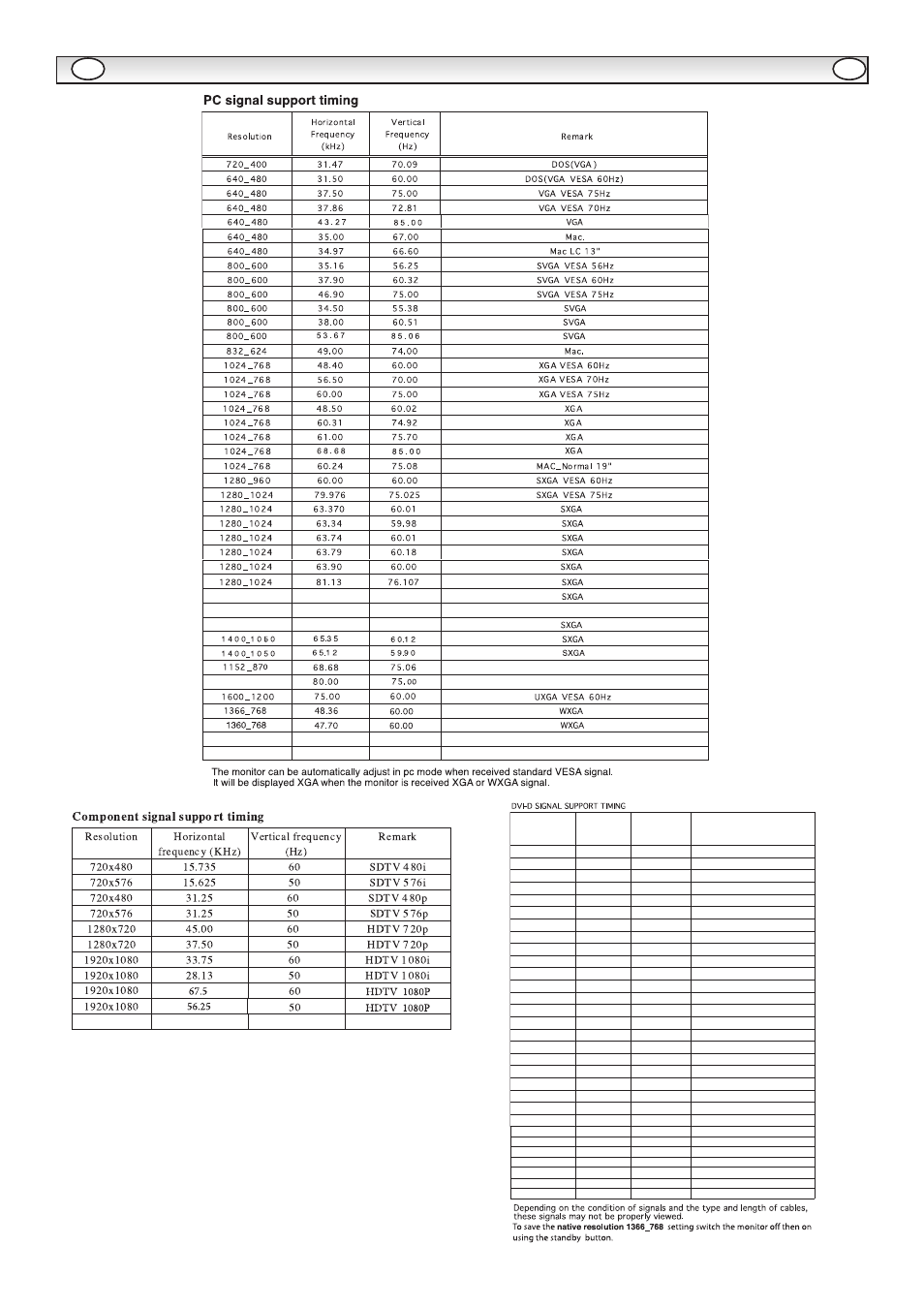

PC/DVI-D / COMPONENT SIGNAL SUPPORT TIMING LIST
GB
GB
Component signal support timing
Resolution
Horizontal
frequency (KHz)
Vertical frequency
(Hz)
Dot Clock
Frequency(Mhz)
Remark
720x480
15.735
60i
12.27
SDTV 4 80i
720x576
15.625
50i
13.50
SDTV 5 76i
720x480
31.25
60p
27
SDTV 4 80p
720x576
31.25
50p
27
HDTV 5 76p
1280x720
45.00
60p
74.25
HDTV 7 20p
1280x720
37.50
50p
74.25
HDTV 7 20p
1920x1080
33.75
60i
74.25
HDTV 1 080i
1920x1080
28.13
50i
74.25
HDTV 1 080i
1920x1080
31.25
50i
74.25
HDTV 1 152i
1152_900
61.20
65.20
1152_900
61.85
66.00
SXGA
1152_900
71.40
75.60
MAC_Normal 21”
1280_1024
Mac_.
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Remark
640_480
31.43
59.88
VGA VESA 60Hz
640_480
37.86
72.81
VGA VESA 72Hz
640_480
37.5
75
VGA VESA 75Hz
640_480
34.97
66.6
MAC LC 13"
640_480
35
66.67
MAC_ NORMAL 13"
800_600
35.16
56.25
SVGA VESA 56Hz
800_600
37.88
60.32
SVGA VESA 60Hz
800_600
46.875
75
SVGA VESA 75Hz
832_624
49.72
74.55
MAC_ NORMAL 16"
1024_768
48.36
60
XGA VESA 60Hz
1024_768
60.23
75.03
XGA VESA 75Hz
1024_768
56.47
70.07
XGA VESA 70Hz
1024_768
60.24
75.08
MAC_ NORMAL 19"
1152_870
68.68
75.06
MAC_ NORMAL 21"
1280_1024
63.98
60.02
SXGA VESA 60Hz
720_480
31.7 59.94
480p
768_575
31.25 50
575p
1280_720 37.5
50
720p-50Hz
1280_720 45
60
720p-60Hz
1920_1080 28.125
50
1080i-50Hz
1920_1080 33.75
60
1080i-60Hz
