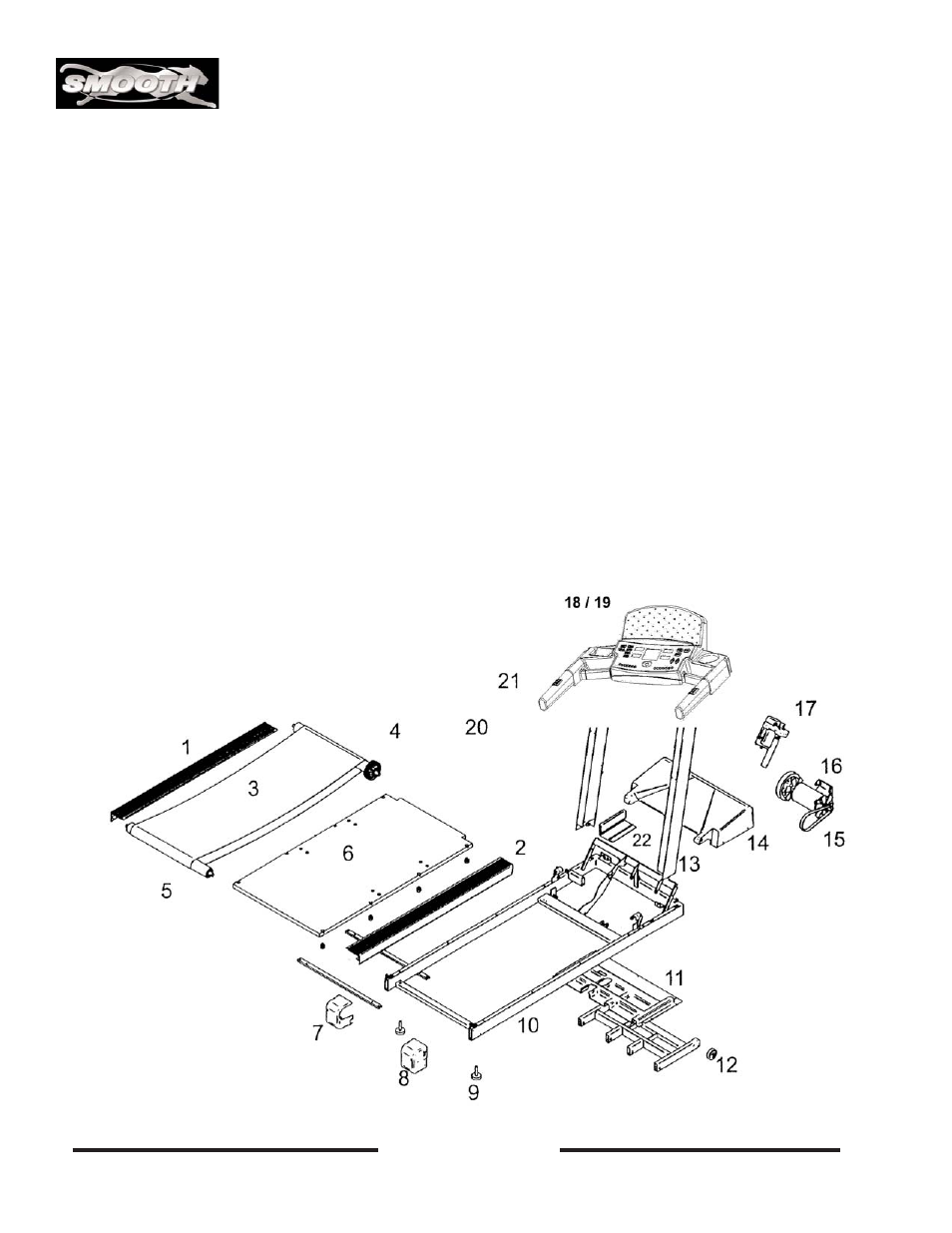

Parts & exploded view – Smooth Fitness SMT9.2HRAB User Manual
Page 19
19
Part #
Part #
1
Left Side Extrusion Rail
05-0045
12
Front Wheel (2)
06-0039
2
Right Side Extrusion Rail
05-0045
13
Uprights for Console (2)
23-0134
3
Treadmill Belt
AeroBelt
04-0010
04-0014
14
Motor Hood Cover Top
06-0040
4
Front Roller Assembly
24-0106
15
Motor Drive Belt
04-0023
5
Rear Roller
09-0009
16
Motor
12-0004
6
Treadmill Deck
03-0016
17
Elevation Motor (acuator)
12-0026
7
Left End Cap
06-0043
18
Console Assembly
24-0216
8
Right End Cap
06-0042
19
N/A
9
Rear Adjustable Foot (2)
10-0008
20
Handlebars
various
10 Main Frame
various
21
Toggle switches (2)
08-0027
11 Bottom Motor Pan
06-0041
22
Lower Electronics M/Control P/Supply
(855)
08-0052
22
Controller
08-0050
Parts & Exploded View
