D3589 Mini Grinder Set
O
PE
R
AT
IO
N
S
The mini grinder set comes with two different sizes of
sanding drums and sleeves.
To install a sanding sleeve, do these steps:
1. Remove the screw and flat washer at the top of the
sanding drum.
2. Slide a sanding sleeve of the appropriate size onto
the drum.
3. Reattach the flat washer and screw.
4. Tighten the screw until the drum begins to place
pressure on the inside of the sanding sleeve.
Sanding Sleeves

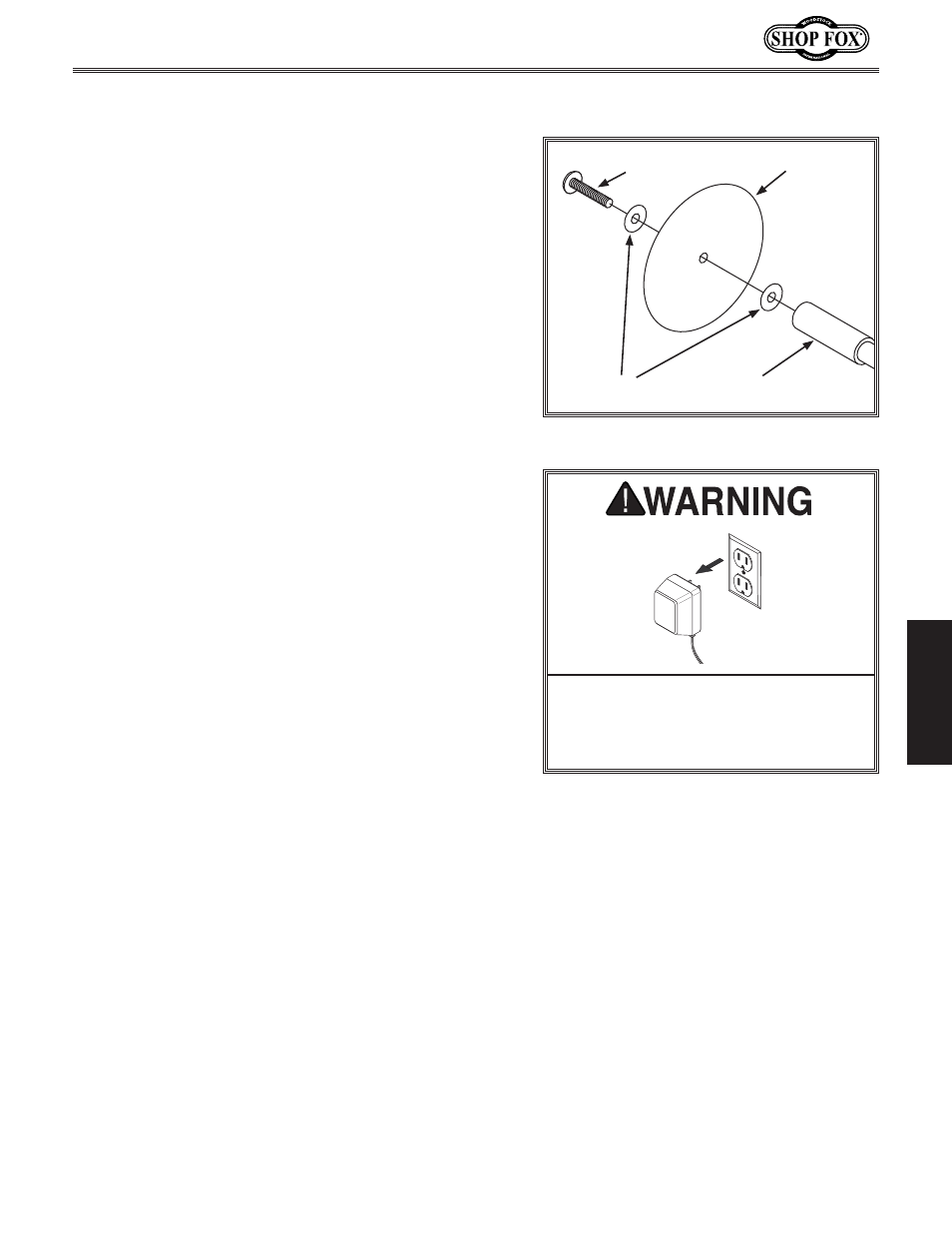

Figure 3. Installing a cutting wheel.
Screw
Rubber Washers
Cutting Wheel
Mandrel Post
The process for installing cutting wheels is very similar
to installing sanding drums.
To install a cutting wheel, do these steps:
1. Remove the screw and the rubber washers at the
top of the mandrel.
2. Fit the cutting wheel between the two rubber wash-
ers, as shown in Figure 3.
3. Re-insert and tighten the screw.
Cutting Wheels
Both polishing wheels provided with the mini grinder
screw onto the same threaded mandrel. Simply screw
the polishing wheel onto the polishing wheel mandrel.
Polishing Wheels
DO NOT investigate problems or adjust
the mini grinder set while it is run-
ning. Wait until the tool is turned off
and unplugged.
