Digital Access Keypad Manual
SECO-LARM U.S.A., Inc.
Digital Access Keypad Manual
(DEFAULT: )
Power:
• Operation voltage -- 12-24 Volts AC/DC. No jumper needed to set voltage.
• Stand-by current drain -- 10mA @12VDC.
• Active current drain (press keypad key) -- Under 30mA.
• Active current drain (relay activated) -- Under 80mA.
Outputs:
• Relay output -- 5A @ 28VDC, Form "C", N.O./C./N.C., programmable for 1 to 999 second timed output or
shunt (start/stop) output. Three terminals.
• Tamper output -- 50Ma @12VDC, N.C. output. Connect to tamper circuit of alarm control panel.
Two terminals.
Inputs:
• Power -- 12-24Volts AC/DC. Two terminals.
• Egress -- N.O., ground (-). Single terminal.
Code Operation:
• Up to 100 user codes, 10,000 possible user code combinations.
• Max. 10 seconds to enter each digit.
• Max. 30 seconds to enter each code.
Dimensions (keypad with back box):
• 4-5/8" x 2-7/8" x 1-7/8" (117 x 74 x 48 mm).
Weight (keypad with back box):
• 6.3 oz. (180 grams).
SPECIFICATIONS:

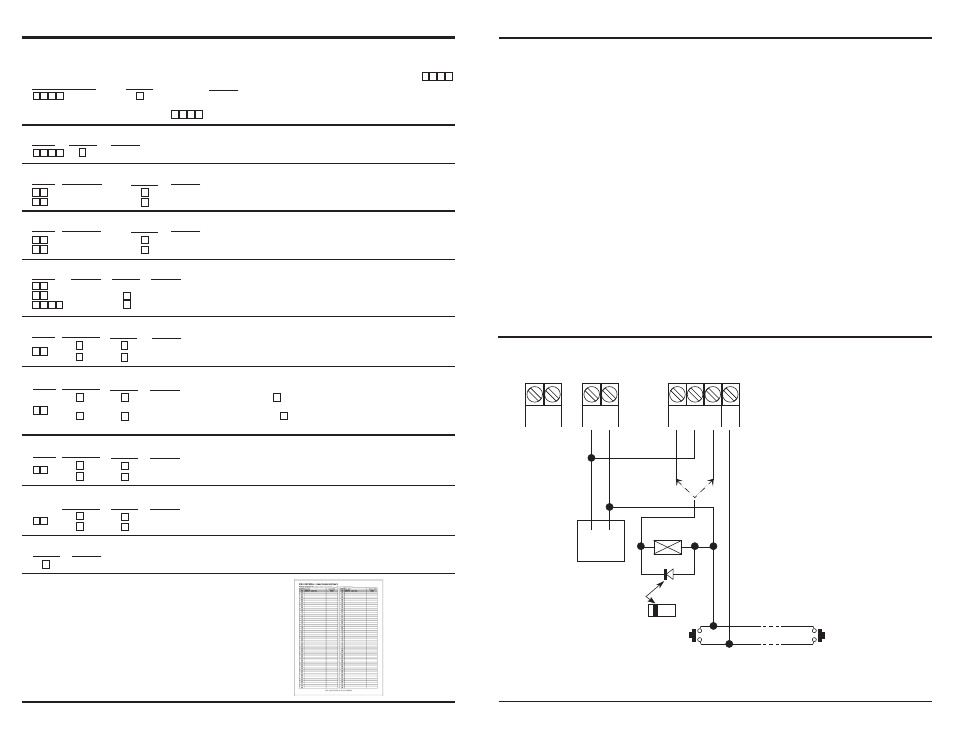

WIRING (SAMPLE INSTALLATION):
USER CODE WORKSHEET
OUTPUT 1 EG
N.C.
(+) (--)
(for DC
use only)
Egress button (inside the
protected premises)
(+)
N.C. N.O.
12~24V AC/DC C.
12VDC
power
supply
+ --
Electric
Lock
Diode
1N4004
Cathode
N.O.
Additional egress buttons
can be connected in parallel
as needed
N.O.
REMARKS:
Output relay
N.O. output for fail-secure lock.
N.C. output for fail-safe lock.
OR
+ --
Tamper
N.C.
Connect to the N.C.
24hr. zone of alarm
panel or other
signalling device.
N.O.
#
#
8 4
1
0
Enter Master code
*Key in the Master Code.
Note: For first-time use, Master code is
Confirm Func ion
Enter into programming mode
Enter Programming Mode
Data Refresh
Configure Relay Outputs
Op ion Confirm Function
Clears all previously stored data.
Option Output ime
1 to 999
Confirm Function
Relay momentary mode, from 1 to 999 seconds
Relay shunt mode (ON/OFF)
X X X X *
0 0 0 0
#
#
#
8 9 0 1
4 0
*
INSTALLER PROGRAMMING
These functions should only be used by professional installers, as incorrect entries can disable the entire keypad function.
0 0 0 0
4 1
Wrong Code Lockout
Option # of tries
5 to 10
Confirm Function
After 10 successive wrong codes, 30-second lockout
After 5 to 10 wrong codes, 15-min. lockout - Can reset wi h Master Code
None of the above
#
#
7 0
7 2
7 6 0 0
Door Unlocked Announcer
Option Code entry Confirm Function
1-sec. beep notifies the user to open the door when the output relay is ac ivated.
The beep is disabled, replaced by 2 short beeps for valid user codes.
#
#
8 1
1
0
User Code Entry Mode
Op ion Code entry Confirm Function
Auto Entry Mode is selected. The key that follows he user code is NOT required in
code entry. The User Codes MUST be set to the same digit length as the Master Code.
Manual Entry Mode is selected. The key that follows the user code is required in
code entry. The User Codes can be 4-8 digits, but not necessarily all of the same length. #
#
8 2
1
0
#
#
Keypress Beeps
Op ion Code entry Confirm Function
Keypad beeps when a key is pressed.
Silent operation -- keypad does not beep when a key is pressed.
#
#
8 3
1
0
Exit Programming Mode
Confirm Function
Exits programming mode, returns keypad to normal operations *
(DEFAULT: Momentary, 1-sec. output)
(DEFAULT: 10 tries / 30 seconds)
(DEFAULT: On)
{
{
(DEFAULT: Manual)
(DEFAULT: On)
Relay Output Inhibit Control (lockout mode)
Option Code Entry
1 to 999
Confirm Function
Lockout for 1 to 999 seconds
Lockout shunt mode (ON/OFF) #
#
5 0
5 1
(DEFAULT: Momentary, 1-sec. output)
To print out a blank worksheet where all user codes
can be recorded, please visit www.seco-larm.com
and select the Model #, "SK-1011-SQ" in the drop
down menu for the burglar section. On the product
page click on "User Code Worksheet," which will
load the .PDF.
{
LED Flashes in Standby Mode
Code entry Confirm Function
Amber LED ON during standby mode.
Amber LED OFF during standby mode.
{
(DEFAULT: On)
