Repair parts list – STA-RITE DURA-GLAS IITM P4RA6F-151L User Manual

Page 13

background image

13

1

1860 0795

5

6

11

12

13

16

17

18

19

15

14

10

7

8

9

3

4

2

20

22

23

24

21

Key

Part

Part

No.

Description

Qty.

No.

1

Motor

1

Chart at Right

2

#10-32 x 1/2” Screw

1

U30-692SS

3

Bonding Lug

1

U17-568

4

Water Slinger

1

C69-2

5

Seal Plate

1

C203-187P

6

“O” Ring

1

U9-228A

7

“O” Ring

1

U9-376

8

Insert

1

C3-186

9

#8-32 x 1/4” Screw

2

U30-401SS

10

Shaft Seal

1

U109-372SS

11

Clamp

1

C19-37A

12

Clamp Knob

1

WC36-22

13

Impeller

1

Chart at Right

Impeller Screw Assembly*

1

17301-0151

14

Diffuser**

1

C1-271P

15

Diffuser “O” Ring

1

U9-374

16

#8 Lock Washer

5

U43-21SS

17

Screw†

5

U30-922SS

18

Tank Body

1

C176-59P

19

Basket

1

C8-58P

20

Trap “O” Ring

1

U9-375

21

Trap Cover

1

C3-185P

22

1/4” NPT Drain Plug

2

U178-920P

23

Base w/Motor Pad***

1

C104-78P

24

Base Washer

2

U43-61SS

25

Base Screw

2

U30-918SS

26

Motor Pad***

1

C35-43

27

3/8-16 x 1” Hex Head Screw

4

U30-74SS

Decal “Suitable for outdoor use . . .”

U27-635

Tag, “CAUTION”

61002-0002

Tag, “CAUTION, WARNING (Bonding)

C63-12

Nameplate

U33-174

P4R SERIES

DURA-GLAS II POOL PUMP

208-230/460V 3 Phase Models

• Not illustrated.

* Model P4R6E3-151 uses Part No. 17301-0152.

** Models P4R6D3 and P4R6E3 use Part No. C1-271P1.

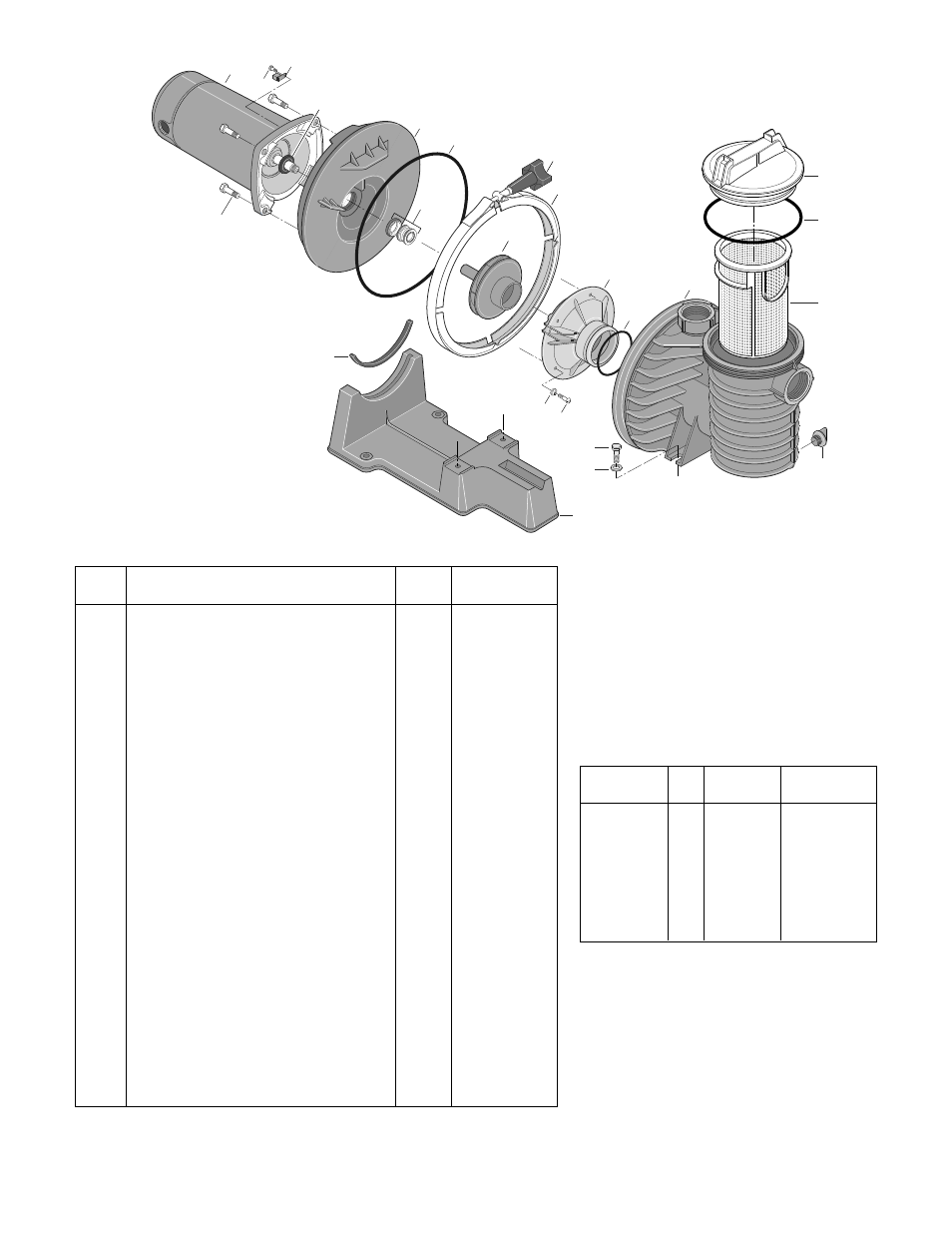

REPAIR PARTS LIST

Motor No.

Impeller No.

Model No.

HP

(Key No. 1)

(Key No. 13)

208-230/460-3Ø
P4RD3-150

3/4

AP100DH

C105-238PA

P4R6E3-151

1

AP100EH

C105-238PBA

P4R6F3-152

1-1/2

AP100FH

C105-238PDBA

P4R6G3-153

2

AP100GH

C105-238PEBA

230/460-3Ø
P4R6H3-154

3

AP100HL

C105-238PLA

Parts are common to all models listed except as noted;
Key Nos. 1, Motor; and 13, Impeller are listed below.

*** Model P4R6H3-154 uses Base No. C104-79P and

Pad No. C35-44.

† Models P4R6D3-150 and P4R6E3-151 use

Part No. U30-542SS.

Models

P4R6D3-150

P4R6E3-151

P4R6F3-152

P4R6G3-153

P4R6H3-154
