16

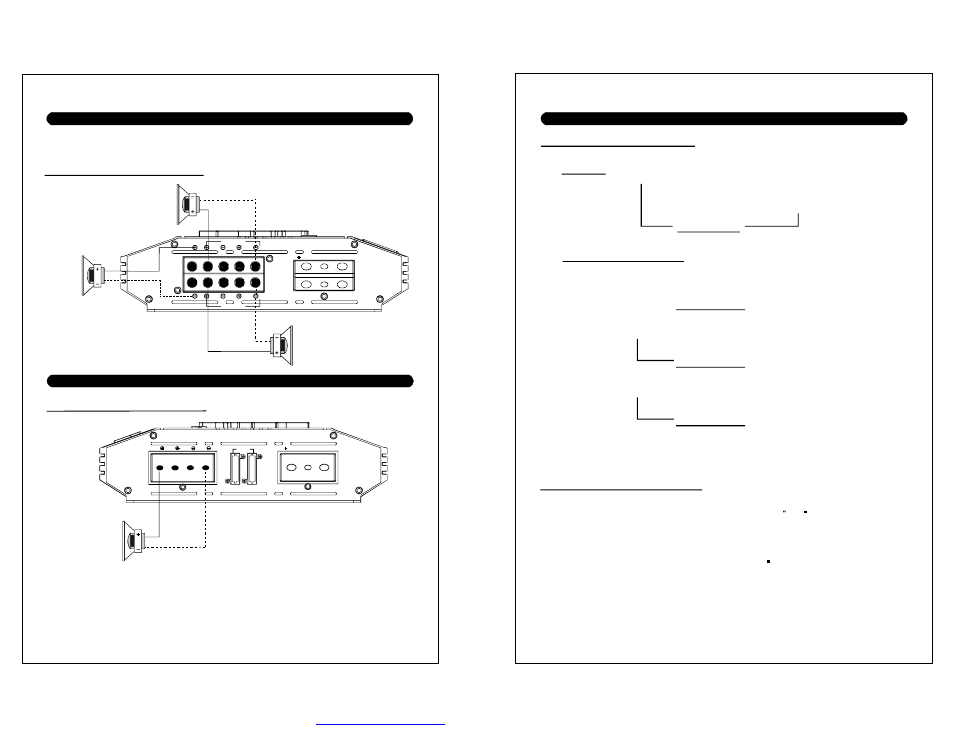

TROUBLE SHOOTING
NO SOUND Is the LED lit?
YES NO
Check Power and Remote turn-on
wire for voltage. Make sure Ground
wire is secure.
STILL NO SOUND
See your Authorized Sound Stream Dealer.
SOUND IN ONE CHANNEL ONLY
Reverse left and right speakers by unplugging the speaker connector, turning
it over and plugging it back in.
SOUND IS NOW IN
SOUND IS NOW IN
OPPOSITE CHANNEL
Reverse RCA inputs
SAME CHANNEL
Problem is in the speaker of
speaker wire of the silent channel
OPPOSITE CHANNEL SAME CHANNEL
Reverse RCAs at head unit Problem is in the Amplifier. See your
local Authorized
SOUND IS NOW IN
OPPOSITE CHANNEL
Problem is in the head unit
or before the amplifier
SAME CHANNEL
Problem is in the RCA cables
PROTECTION CIRCUIT
NOTE: Low battery voltage will cause the amplifier to run warmer and possibly
damage the amplifier.
Short Circuit Protection engaged: The amplifier will turn off and try to come back on
immediately. The amplifier will cycle like this indefinitely, with blips of sound each time. If
this is the case, check your speakers and wiring for low impedance and short circuits.
Thermal Protection engaged: The amplifier will turn off and several minutes later will
come back on. In this case, ensure that there is nothing blocking the normal convective
airflow of the amplifier. No obstruction should be within 2 of the amplifier on all sides.
5
CHANNEL BRIDGED LW5.830
BRIGDED MODE
15
SPEAKER
4~8 Ohm
SPEAKER
4~8 Ohm
SPEAKER
4~8 Ohm
As in all multiple speaker connections, please always observe polarity as failure
to do so, can cause phase cancellation.
REM GND 12V
BRIDGED
CH1 CH2
BRIDGED
CH3 CH4
S
S
FUSES SP SP SP SP REM GND 12V
1
CHANNEL BRIDGED LW1.350
SPEAKER
4~8 Ohm
