Page 14

14
Connections
TV and optional component connections
x Use the supplied audio cables to connect AUDIO IN
jacks to the corresponding AUDIO OUT jacks on the
television, VCR or other audio/visual components.
x Use the supplied audio cables to connect AUDIO OUT
jacks to the corresponding AUDIO IN jacks on the
television, tape or CD recorders.
x Use the cables to connect VIDEO OUTΰPr/PB/Yα
jacks to the corresponding component video inputs on
the television or monitor.
NOTE: Some televisions or monitors are equipped with
component video inputs capable of reproducing a
progressively scanned 480p video signal. Connection to
these inputs allows you to view the highest quality
pictures with high resolution.
x Use the 75 ohm coaxial cable to connect COAXIAL OUT
jacks to the corresponding Coaxial type digital audio input
on an amplifier equipped with a Dolby Digital decoder.
x Use the video cable to connect the VIDEO OUT jack to
the Video input jacks on the television.
x Use the S-Video cable to connect the S-VIDEO OUT jack
to S-Video input jack on the television.
x Use the video cable to connect the VIDEO IN jack to the
Video output on the television or VCR.
Note: Select one connection with TV of VIDEO OUT, S-video,
or Component VIDEO OUT. Do not connect all of them at
same time.

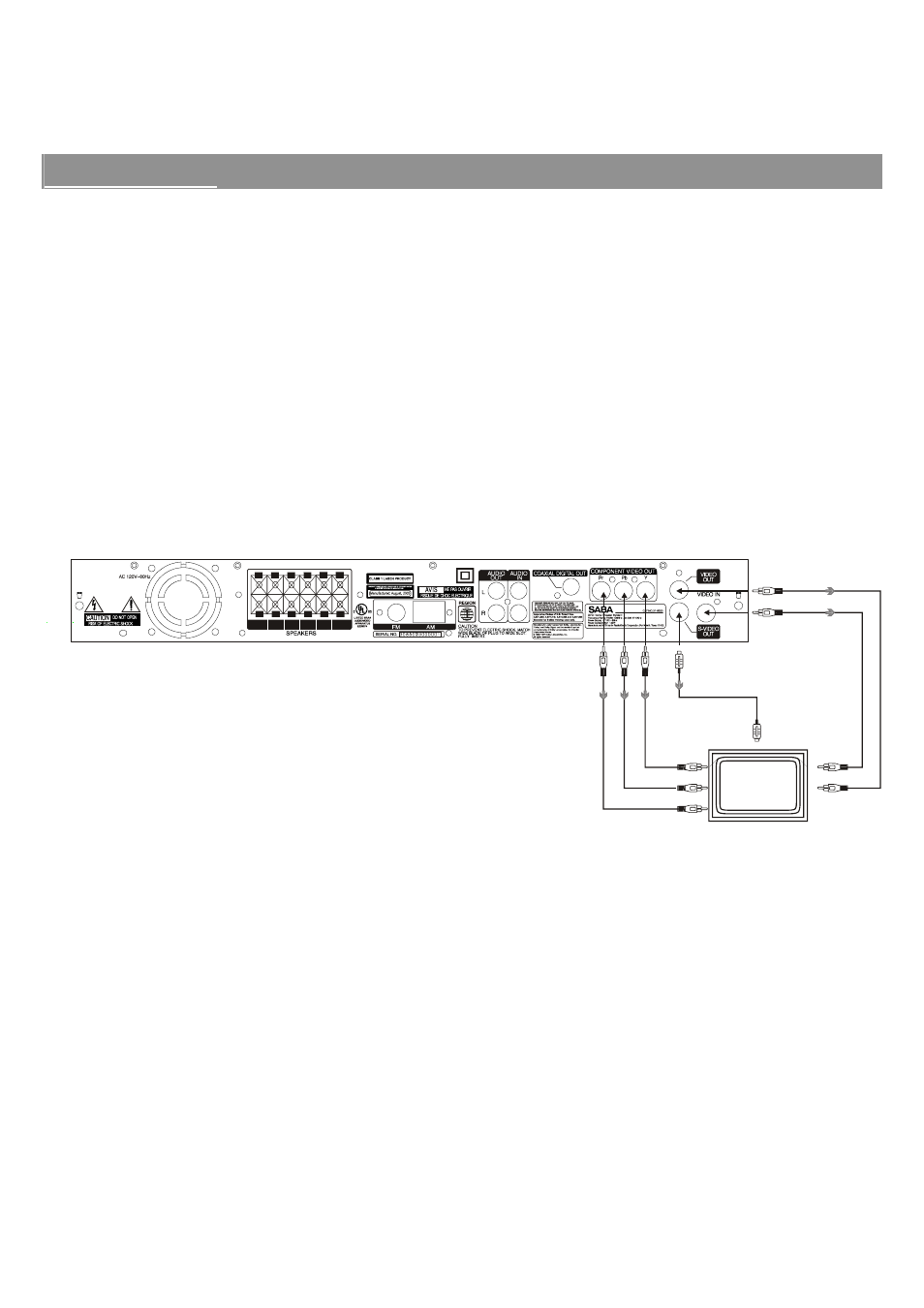

TV with component video
To Y video input
To Pb video input
To Pr video input
To video output
To video input
To S-video output
FR
(8 OHMS)
FL
(8 OHMS)
C
(8 OHMS)
RL
(8 OHMS)
SUB
(4 OHMS)
RR
(8 OHMS)
