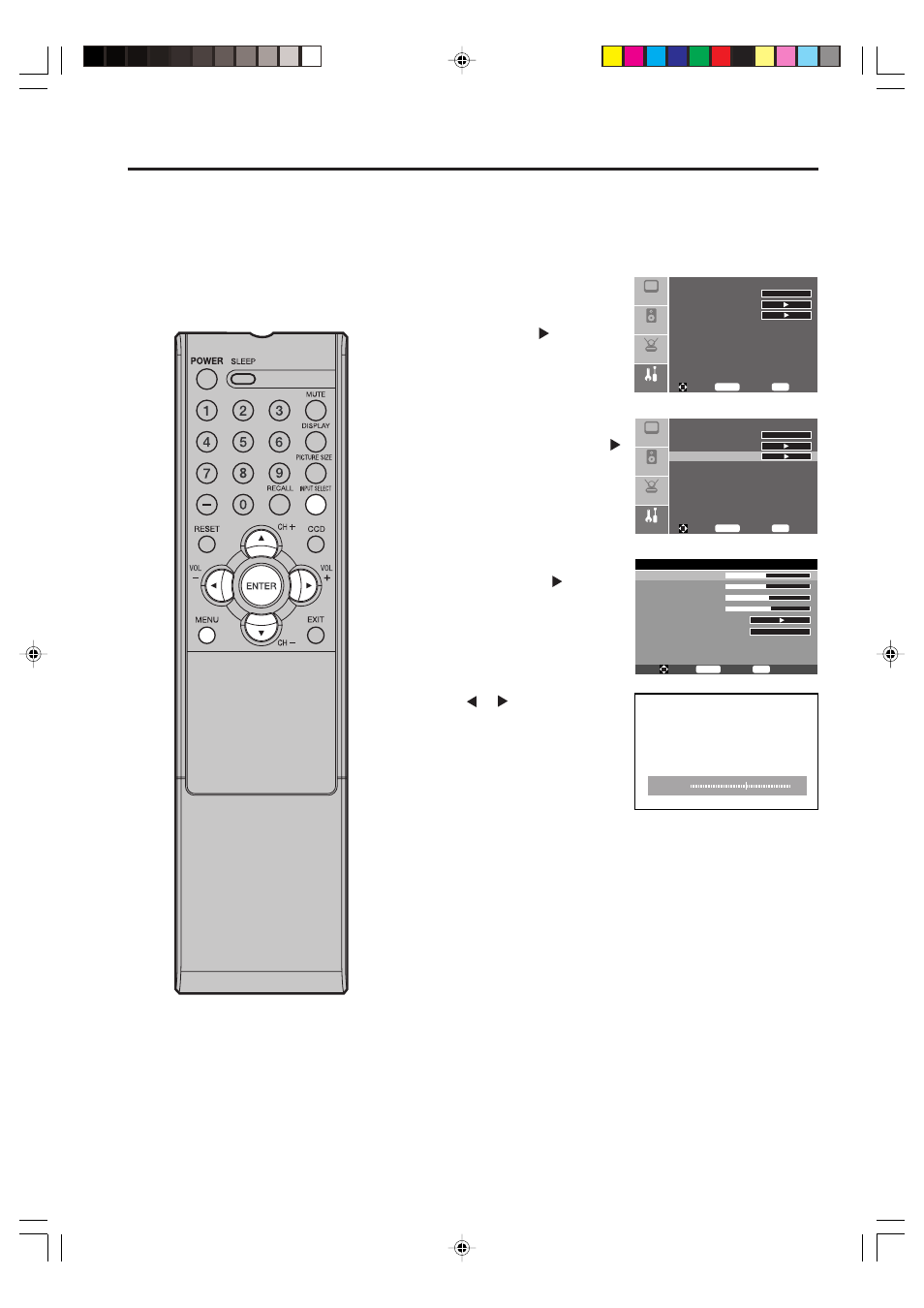

Example: Adjust the H-Pos in the component mode.

Press INPUT SELECT repeatedly to select the component
mode.

Press MENU during the
component mode. Then press
▲ or ▼ to select “Feature”
menu, then press .

Press

▲ or ▼ to select

“Component Set”, then press
or ENTER.

Press

▲ or ▼ to select

“H-Pos”, then press or
ENTER.

Press or to adjust the
setting.

You can adjust to optimize the
performance of the TV in the
Component and PC mode.

C o m p o n e n t s e t t i n g - 7 2 0 x 4 8 0 p @ 6 0 / 5 9 . 9 4 H z

H-Pos

V-Pos

Clock

Phase

Auto adjust

Setting

To Move

To Select

To Exit

Enter

Menu

Preset

H-Pos:

To adjust the horizontal position of the
image on the PC Monitor-screen.

V-Pos:

To adjust the vertical position of the
image on the PC Monitor-screen.

Clock:

To minimize any vertical bars or stripes
visible on the screen background.

Phase:

This must be adjusted after the frequency
of your PC has been set to 60hz to
optimize pic ture quality (page 16).

Auto adjust
(PC Setting only):

To optimize “H-Pos”, “V-Pos”, “Clock”
and “Phase” automatically.

Setting:

To return your settings to the factory
settings.

Press MENU to return to the normal screen.

NOTE:
• If no buttons are pressed for more

than approx. 30 seconds, the Menu-
screen will return to normal Monitor-
screen automatically.

• The “Component Set” and “PC Set”

settings are not effective for normal
mode, or other input modes.
